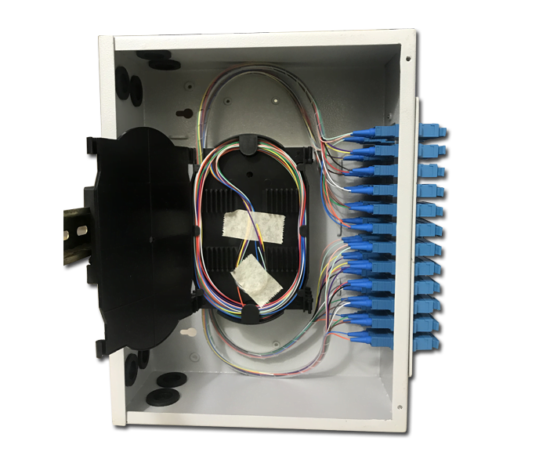

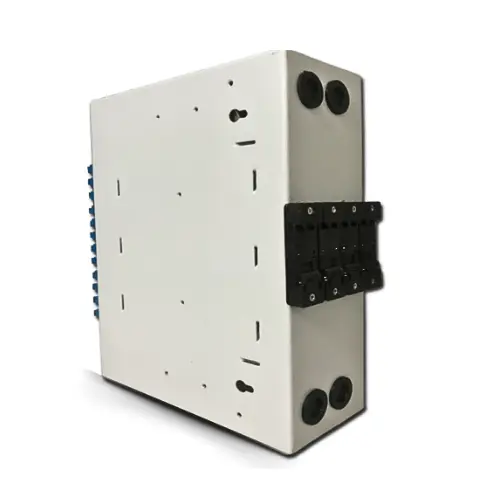

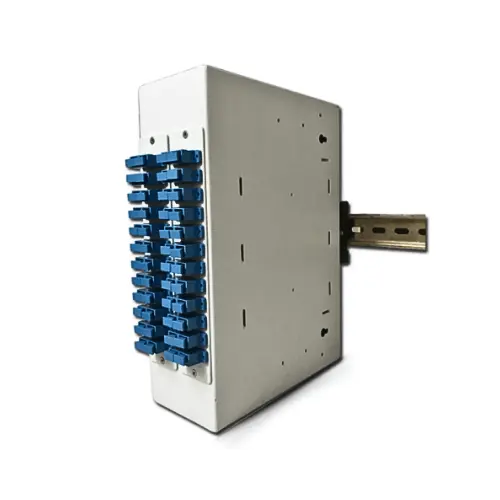

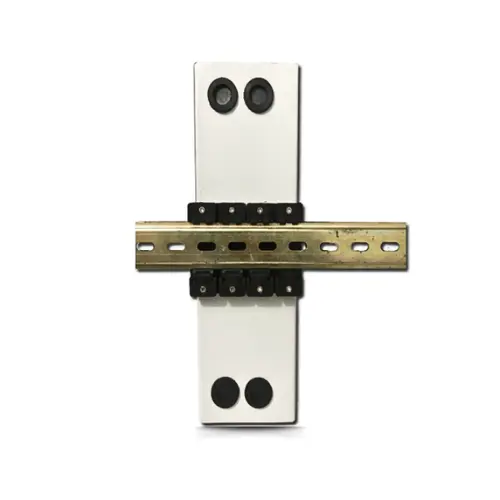

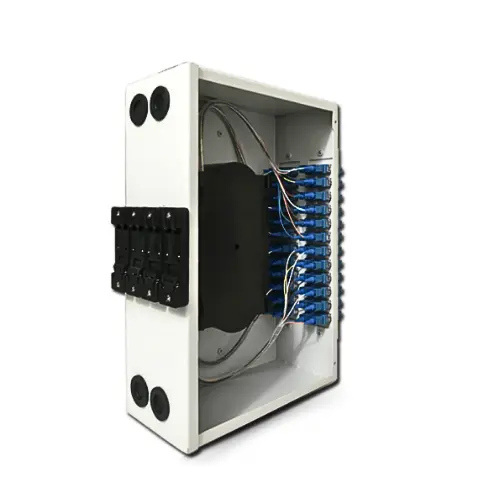

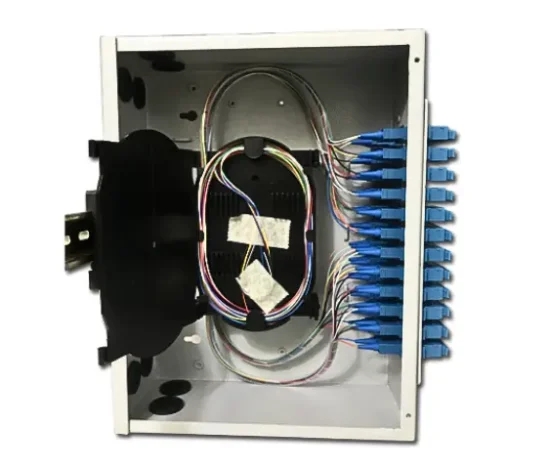

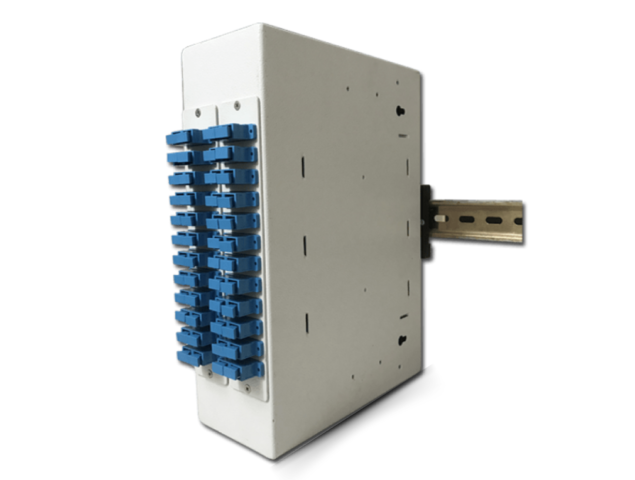

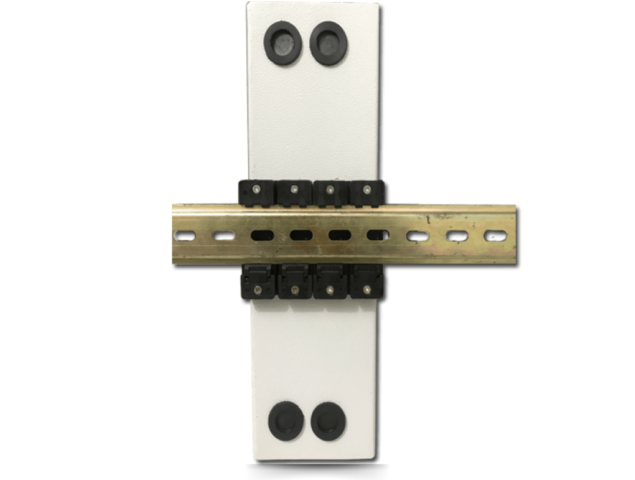

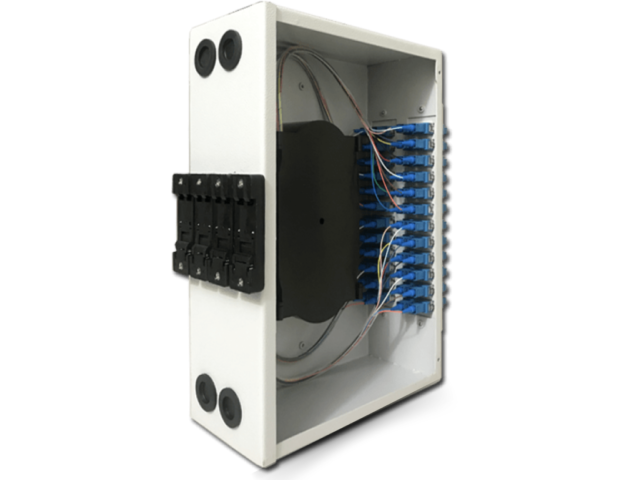

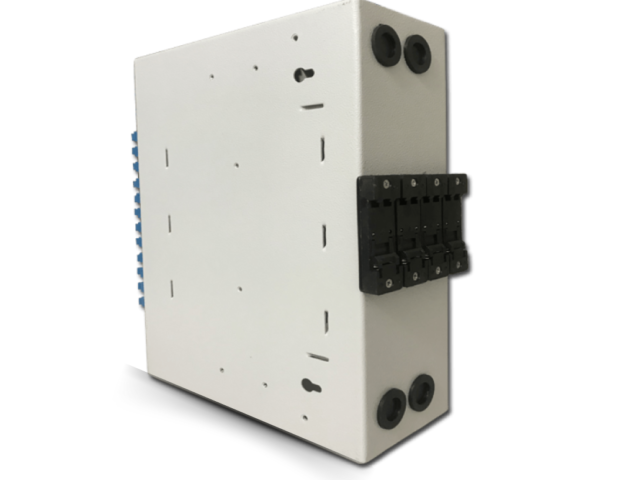

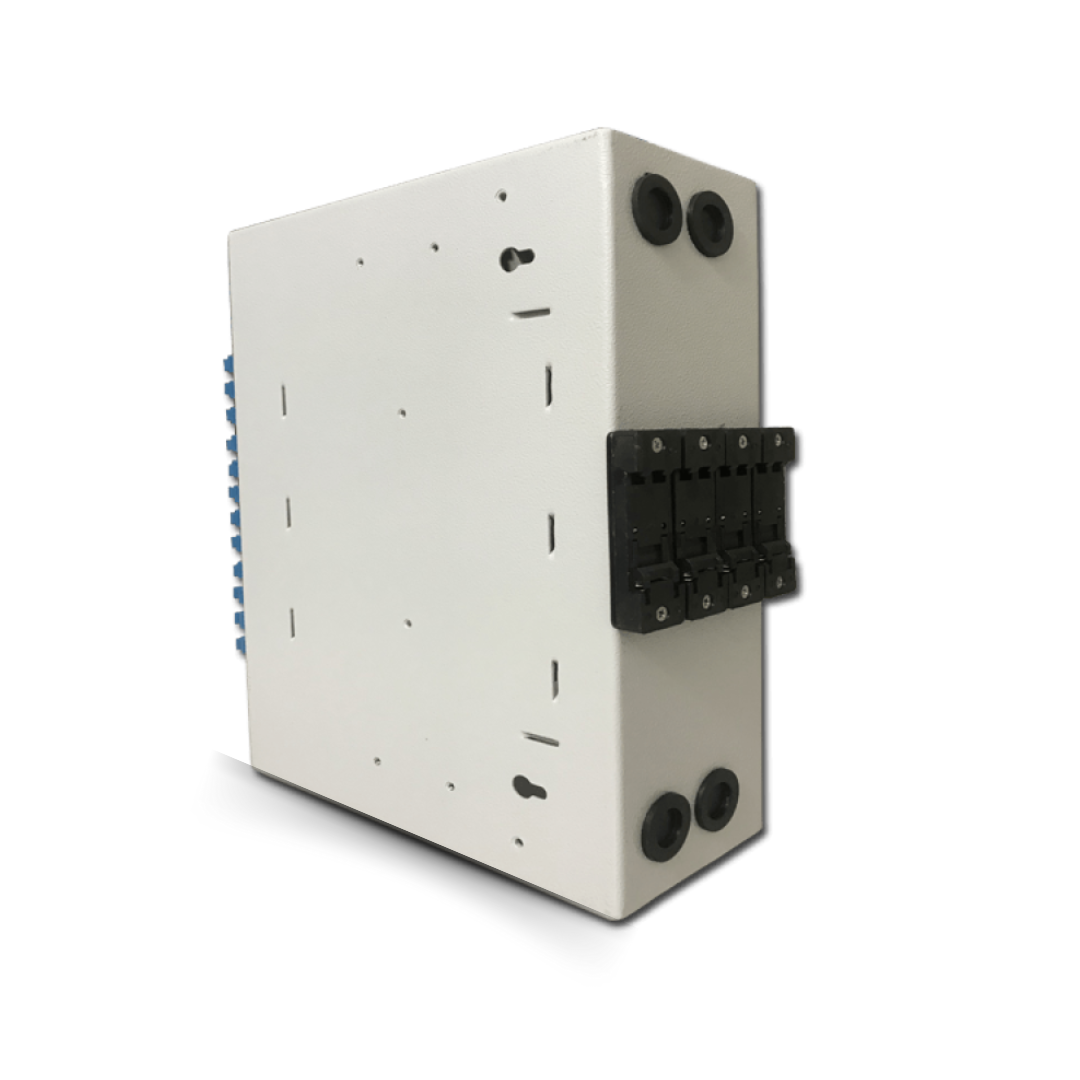

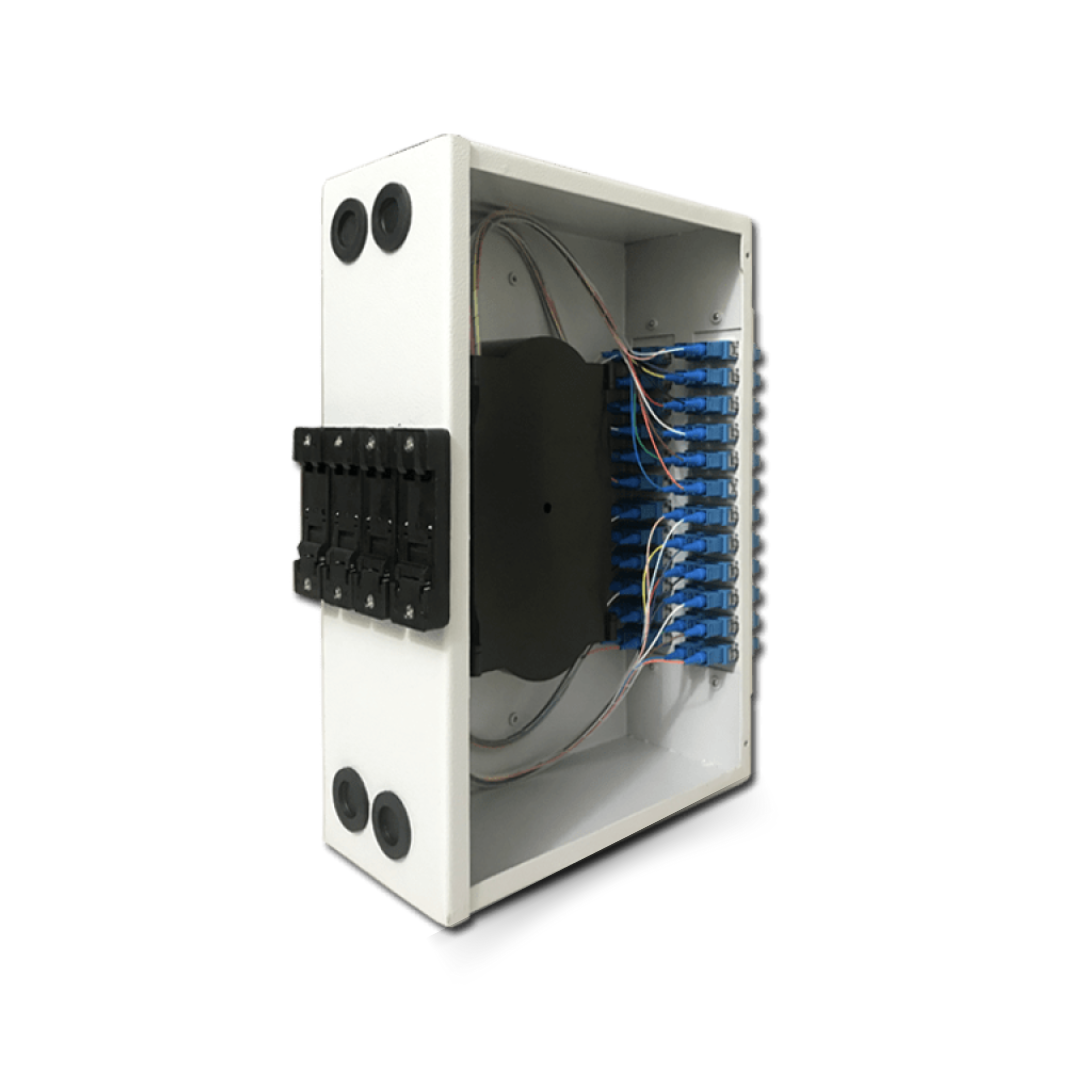

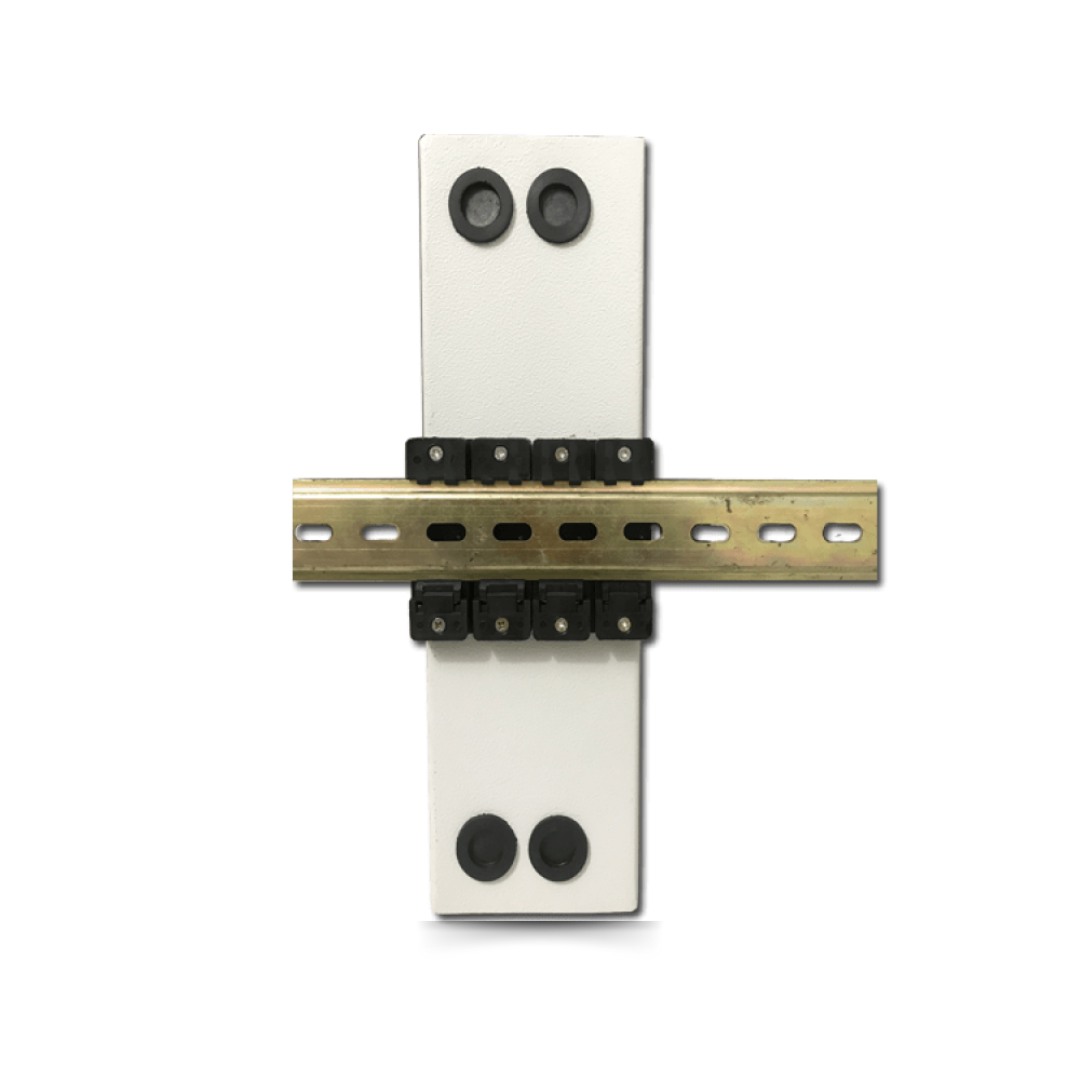

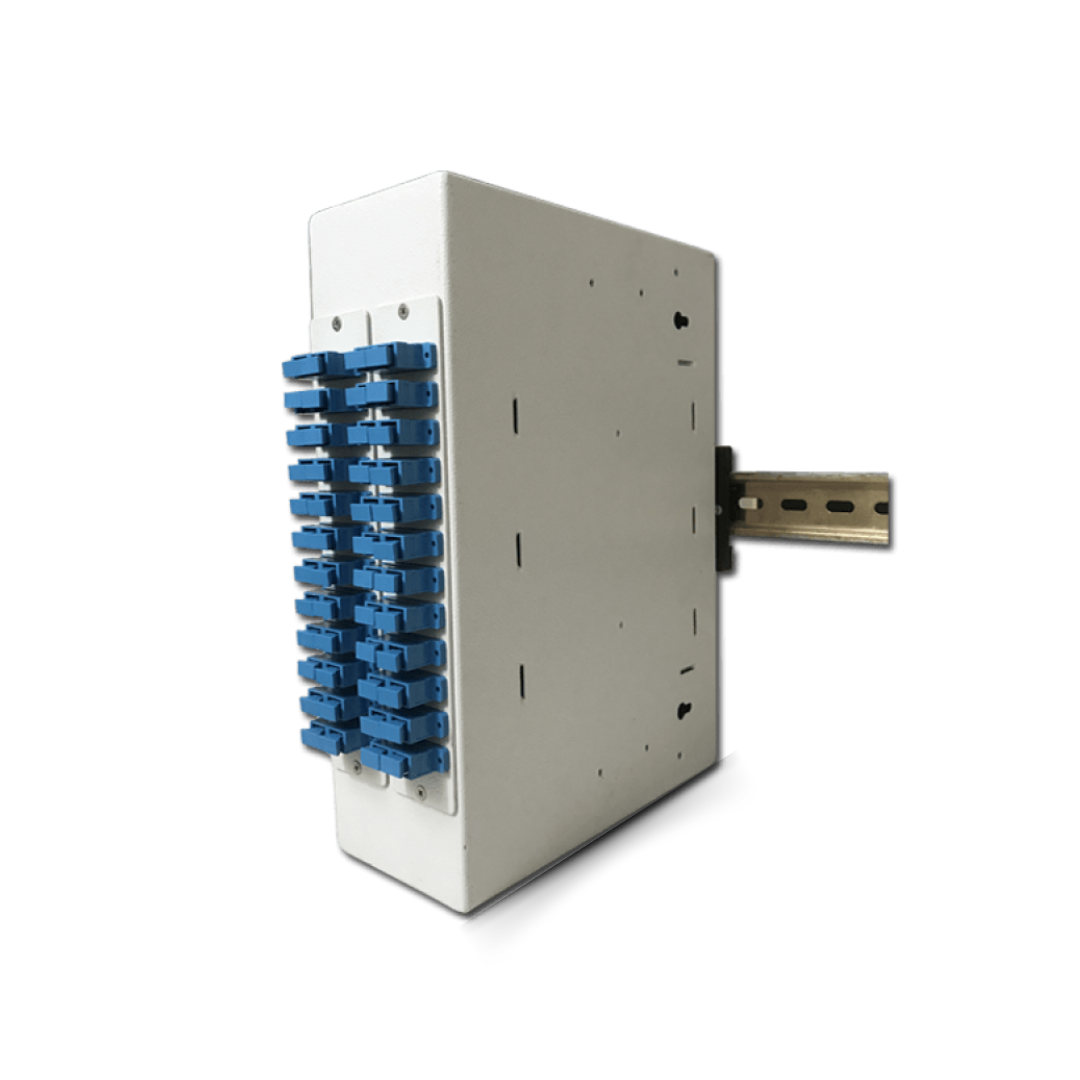

Medium Din Rail Patch Panel

Din Rail Patch Panel

Medium Din Rail Patch Panel/LIU

SPECIFICATIONS:

  • Material : Mild Steel/Aluminum with 7 Tank Process powder coating.
  • Dimensions : 210*44*180 mm (H*W*D)
  • Color : RAL 7035/Black
  • Cable grommet : FR grade nylon
  • Splice Holder : FR grade ABS
  • Splice Holder Dimension : 90*55*15 mm (L*W*H)
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 times

UNISOL Mini Din rail patch panel is suitable for backbone fiber optic cable termination. Because of its compact and ruggedly designed case, it is suitable for industrial applications. Din rail mounted patch panel are designed to support fusion splicing or direct termination of the fibers. Din rail enclosure includes a splice tray for fusion splicing and It is suitable for mounting in DIN Rail panels where there is space constraint inside PLC’s. Din Rail mount enclosures are suitable to mount in substation automation networks and these can be used to provide a maximum 24 number of fiber connections in a minimal footprint.

Din Rail mount fiber patch panel is used in CCTV traffic monitoring, toll systems and environmental monitoring equipment where these can be secured in small wayside cabinet backplane or side panel. The patch panel can be loaded with a variety of Din rail adapters like ST, SC, FC and LC.

  • Compact size perfect for limited space enclosures
  • MS/Aluminum housing with seven tank process powder coating
  • Suitable for DIN-Rail and surface mount applications
  • Replaceable Din Rail panel for SC/ST/LC/FC type of fiber optic couplers
  • Allow maximum 4 cables entry
  • Patch or fusion splice field termination standard
  • Splice holder for pigtail splicing
  • Can be used as 24 port patch panel using LC/SC Duplex couplers
  • Because of its compact and ruggedly designed case it is suitable for industrial applications.
  • Available with metal DIN-Rail mount for Industrial high temperature conditions and applications
  •
  • Oil & Gas Industries
  • CCTV & Survelliance Applications
  • Rail Signalling & control Applications
  • Process Automation & Control Systems
  • Power Systems & Controls
DescriptionPart No.
Unisol Miniature Din Rail Mount Fiber Optic Patch Panel/LIUUCPL-MINI-DIN-PP
Unisol Miniature Din Rail Mount Fiber Optic Patch Panel/LIU – Metal Din RailUCPL-MINI-MDIN-PP
Unisol Adapter panel 1×12 SC SM SimplexUCPL-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM SimplexUCPL-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM DuplexUCPL-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM DuplexUCPL-SCMM12PDPX
Unisol Adapter panel 1×12 ST SM SimplexUCPL-STSM12PSPX
Unisol Adapter panel 1×12 ST MM SimplexUCPL-STMM12PSPX
Unisol Adapter panel 1×12 LC SM DuplexUCPL-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM DuplexUCPL-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM SimplexUCPL-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM SimplexUCPL-FCMM12PSPX
