Micro Din Rail Patch Panel

Din Rail Patch Panel

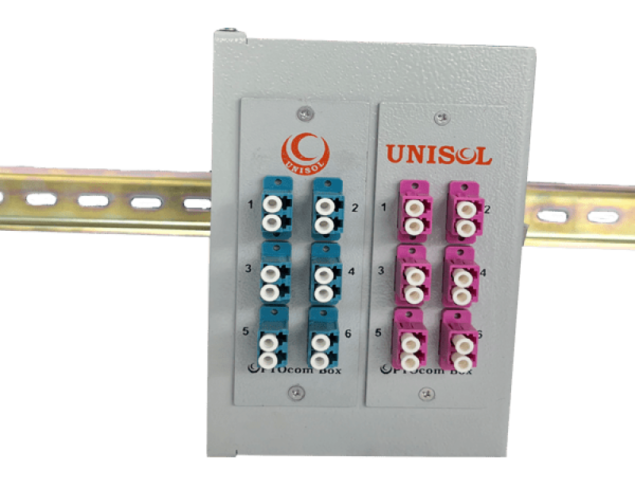

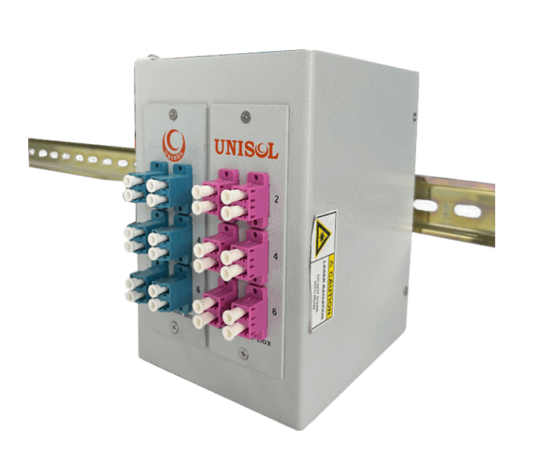

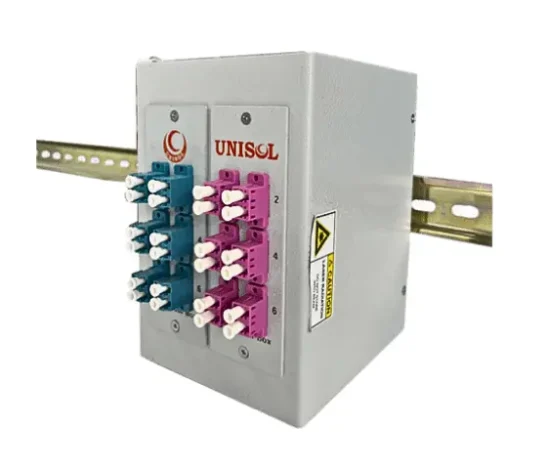

12 Port Micro Din Rail Patch Panel/LIU


  • Material : CRCA/Aluminum with seven Tank Process powder coating.
  • Dimensions : 150*105*120 mm (H*W*D)
  • Color : RAL 7035/Black
  • Cable grommet : FR grade Nylon
  • Splice Holder : FR grade Nylon
  • Splice Holder Dimension : 90*55*15 mm (L*W*H)
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 times

UNISOL Micro Din Rail liu is designed to support fusion splicing or direct termination of the fibers. Because of its compact and ruggedly designed case, it is suitable for industrial applications. Din rail mounted patch panel includes a splice tray for fusion splicing. Din rail enclosure is compact in size and can be mounted on the cabinet with other din rail equipment where there is space constraint inside PLC’s. Din Rail mount enclosures are suitable to mount in substation automation networks and these can be used to provide a maximum number of fiber connections in a minimal footprint.

Din rail mount fiber patch panel is used in CCTV traffic monitoring, toll systems and environmental monitoring equipment where these can be secured in small wayside cabinet backplane or side panel. The patch panel can be loaded with a variety of adapters like ST, SC, FC and LC.

  • Compact size perfect for limited space din rail mount enclosures.
  • MS/Aluminum housing with seven Tank process powder coating.

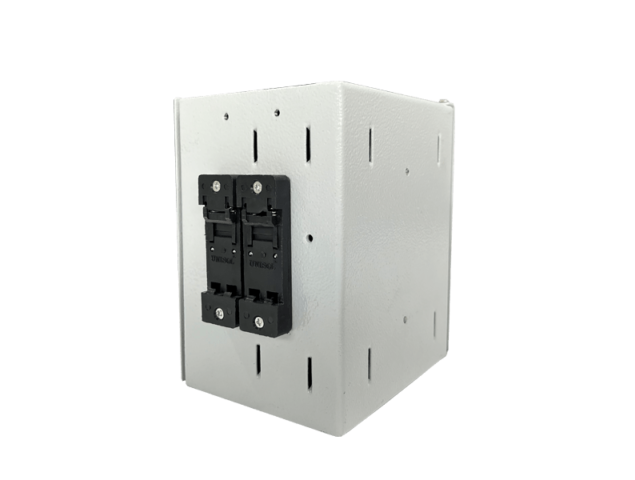

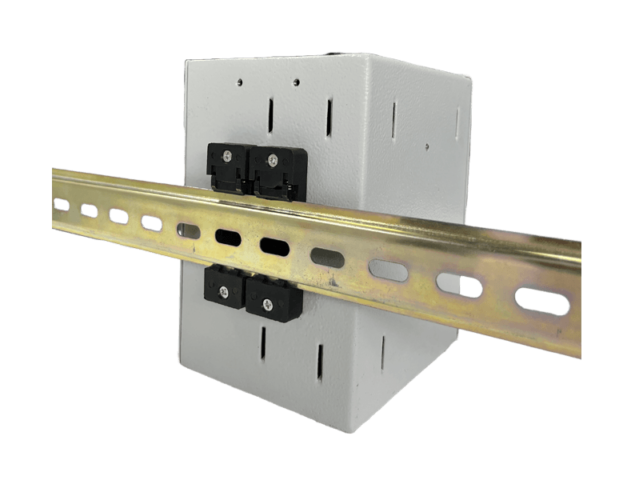

  • Suitable for DIN-Rail and surface mount applications.
  • Replaceable Din Rail mount Fiber optic patch panel for SC/ST/LC/FC type couplers.
  • Allow maximum four cables entry.
  • Patch or fusion splice field termination standard.

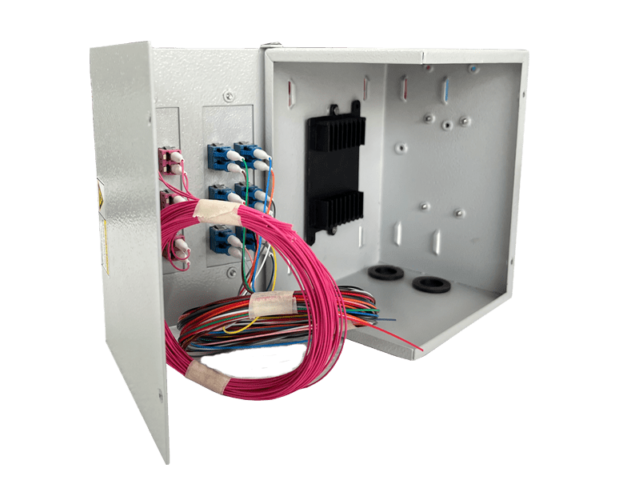

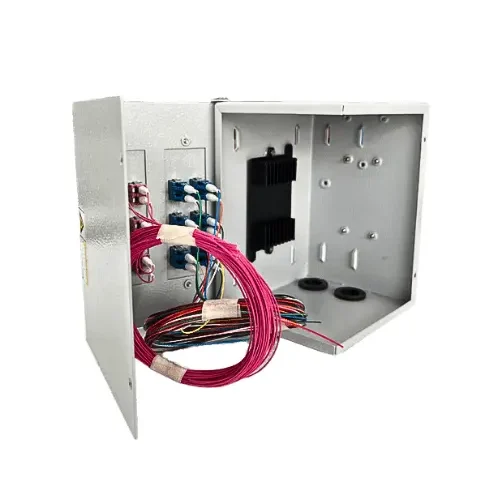

  • Splice holder for pigtail splicing.
  • Available with metal DIN-Rail mount for Industrial high temperature applications and conditions.
  • Oil & Gas Industries
  • CCTV & Survelliance Applications
  • Rail Signalling & control Applications
  • Process Automation & Control Systems
  • Power Systems & Controls
DescriptionPart No.
Unisol Micro Din Rail Mount Fiber Optic Patch Panel/LIUUCPL-MICRO-DIN-PP
Unisol Micro Din Rail Mount Fiber Optic Patch Panel/LIU – Metal Din RailUCPL-MICRO-MDIN-PP
Unisol Adapter panel 1×6 SC SM SimplexUCPL-DIN-SCSM6PSPX
Unisol Adapter panel 1×6 SC MM SimplexUCPL-DIN-SCMM6PSPX
Unisol Adapter panel 1×3 SC SM DuplexUCPL-DIN-SCSM6PDPX
Unisol Adapter panel 1×3 SC MM DuplexUCPL-DIN-SCMM6PDPX
Unisol Adapter panel 1×6 ST SM SimplexUCPL-DIN-STSM6PSPX
Unisol Adapter panel 1×6 ST MM SimplexUCPL-DIN-STMM6PSPX
Unisol Adapter panel 1×6 LC SM DuplexUCPL-DIN-LCSM12PDPX
Unisol Adapter panel 1×6 LC MM DuplexUCPL-DIN-LCMM12PDPX
Unisol Adapter panel 1×6 FC SM SimplexUCPL-DIN-FCSM6PSPX
Unisol Adapter panel 1×6 FC MM SimplexUCPL-DIN-FCMM6PSPX
