12 Port Rack Mount LIU

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

12 Port Rack Mount LIU

SPECIFICATIONS:

Material : CRCA Mild Steel/Aluminum
Dimensions : 44*430*320 mm (H*W*D)
Process : Seven tank process/Zinc flake coating
Color : RAL 7035/Black
Spool : FR Grade PVC
Cable grommet : FR Grade Nylon
Splice Holder : FR Grade ABC
Splice Holder Dimension : 220*110*10 mm (L*W*D)
Cable Glands : Nylon with nitrile butadiene rubber, max cable diameter of 5mm to 14mm.
Fiber components standard : Telecordia GR 326
Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
Plug/Unplug durability : 1000 times

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

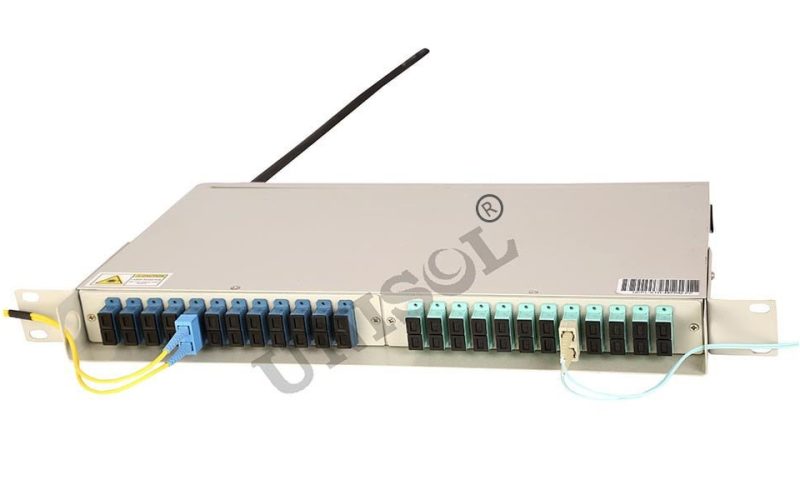

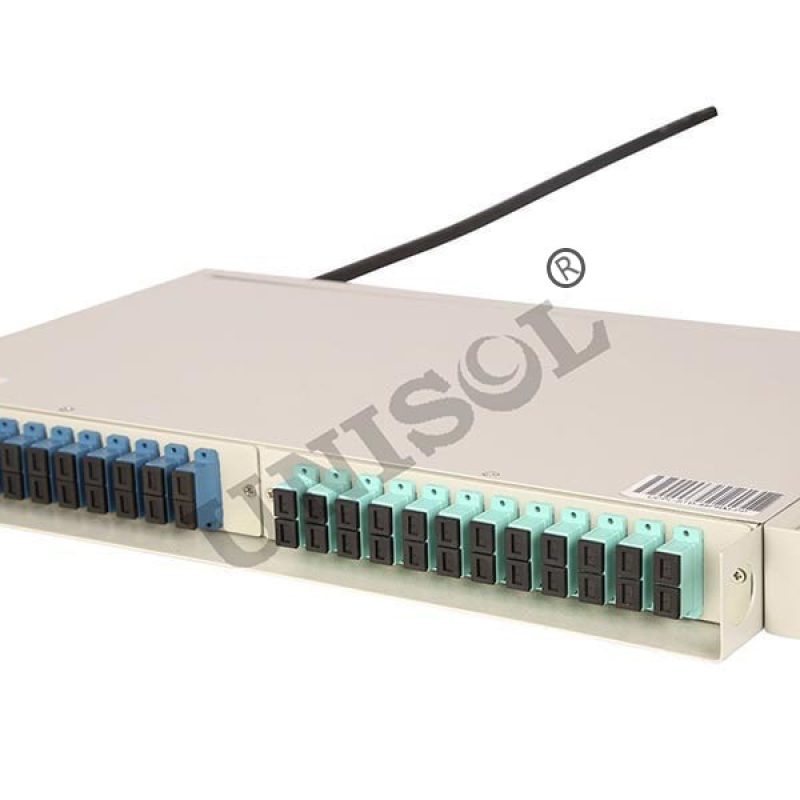

UNISOL 12 Port Rack Mount Fiber Patch Panel is a two-panel detachable model designed for 19″ rack mounting. It is an affordable option that can be expanded to 24 ports in the future.

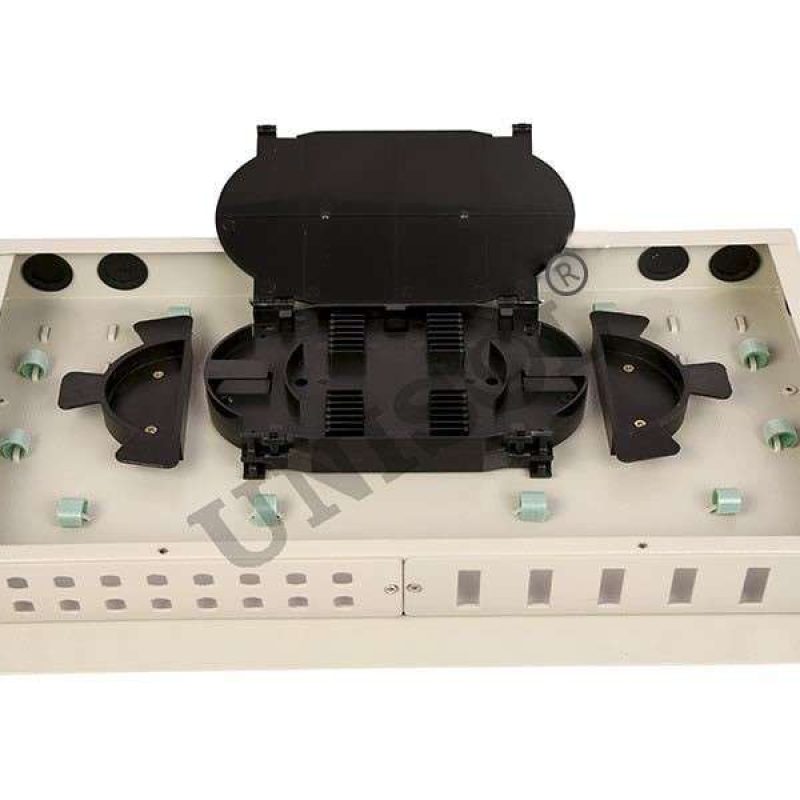

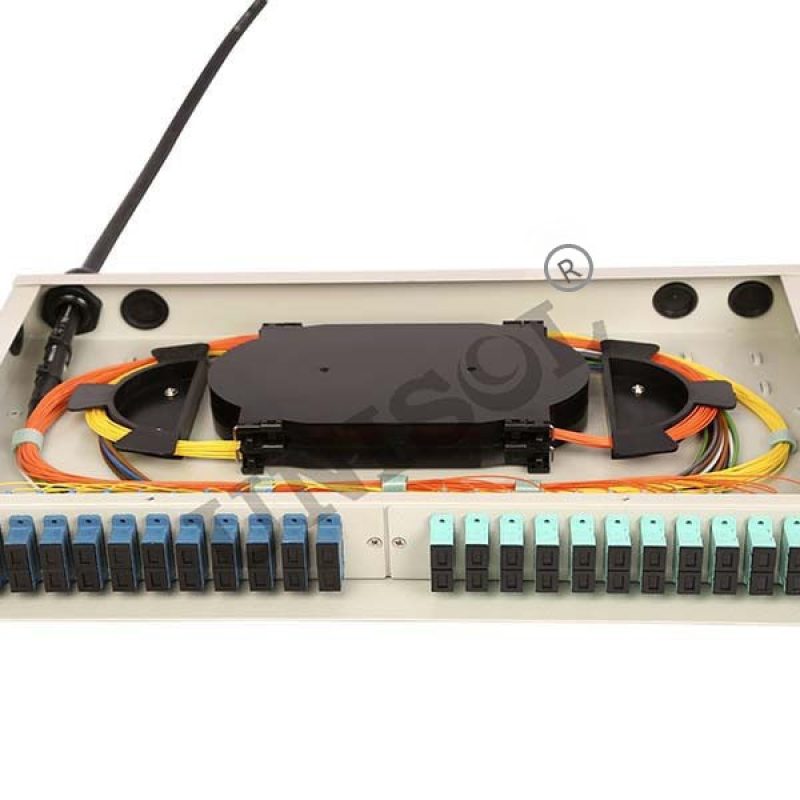

This 1U Rack Mount Patch Panel comes pre-loaded with splice trays and a variety of adapter ports like SC,ST,FC and LC. It facilitates the splicing and termination of fiber optic cables (OFC) and pigtails in a fiber access network, making fiber optic communication installation and troubleshooting faster, easier, and more cost-effective.

Constructed of MS/Aluminium using a seven-tank powder coating technique
Suitable for 19’’ Rack mounting.
Allows maximum six cable entry.
Replaceable panel for SC/ST/LC/FC type adapters.
Can manage adapter panel for maximum 48 SC/48 LC in 1U size.
Capable of storing up to three meters of 900 micron tight buffered fiber cable.
Accessory kit includes splice tray, cable gland, cable ties and screws.

Data Centers
Telecommunication Networks
Security Surveillance
Indoor Premise Networks
Central offices (FTTx)
Process Automation and Control Systems
Power Systems and Controls

Description	Part No.
Unisol 24 Port Rack Mount Fiber Optic Patch Panel/LIU	UCPL-STD-24PRM-PP
Unisol 48 Port Rack Mount Fiber Optic Patch Panel/LIU	UCPL-STD-48PRM-PP
Unisol Adapter panel 1×12 SC SM Simplex	UCPL-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM Simplex	UCPL-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM Duplex	UCPL-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM Duplex	UCPL-SCMM12PDPX
Unisol Adapter panel 1×12 SC SM Duplex	UCPL-SCSM24PDPX
Unisol Adapter panel 1×12 SC MM Duplex	UCPL-SCMM24PDPX
Unisol Adapter panel 1×12 ST SM Simplex	UCPL-STSM12PSPX
Unisol Adapter panel 1×12 ST MM Simplex	UCPL-STMM12PSPX
Unisol Adapter panel 1×12 LC SM Duplex	UCPL-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM Duplex	UCPL-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM Simplex	UCPL-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM Simplex	UCPL-FCMM12PSPX
