12 Port Rack Mount LIU

Rack Mount Patch Panel

12 Port Standard Rack Mount Patch Panel/LIU

SPECIFICATIONS:

  • Material : CRCA/Aluminum with 7 Tank Process powder coating.
  • Dimensions : 44*430*320 mm (H*W*D)
  • Color : RAL 7035/Black
  • Spool : FR grade PVC.
  • Cable grommet : FR grade Nylon
  • Splice Holder : FR grade ABC.
  • Splice Holder Dimension : 220*110*10 mm (L*W*D).
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 timesL

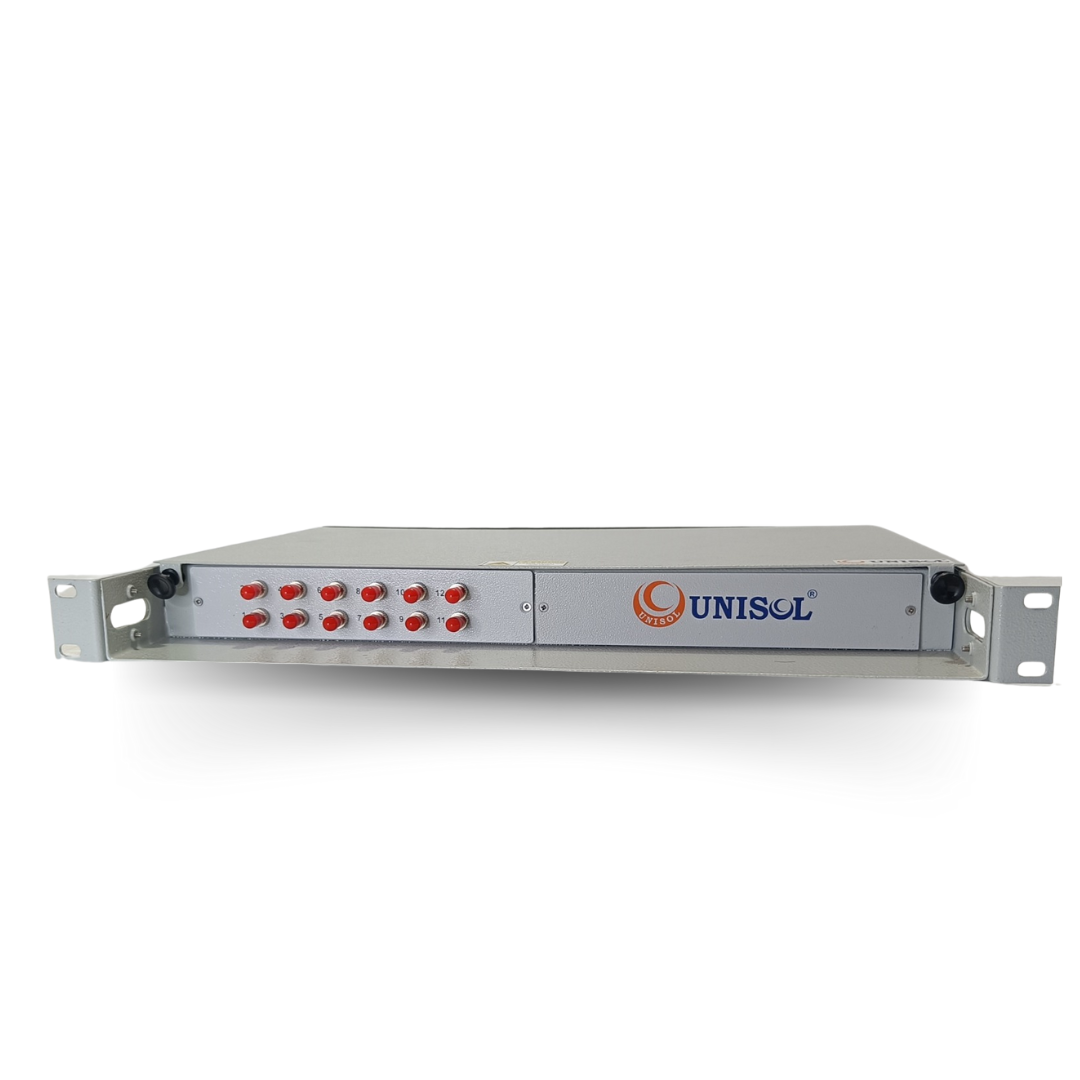

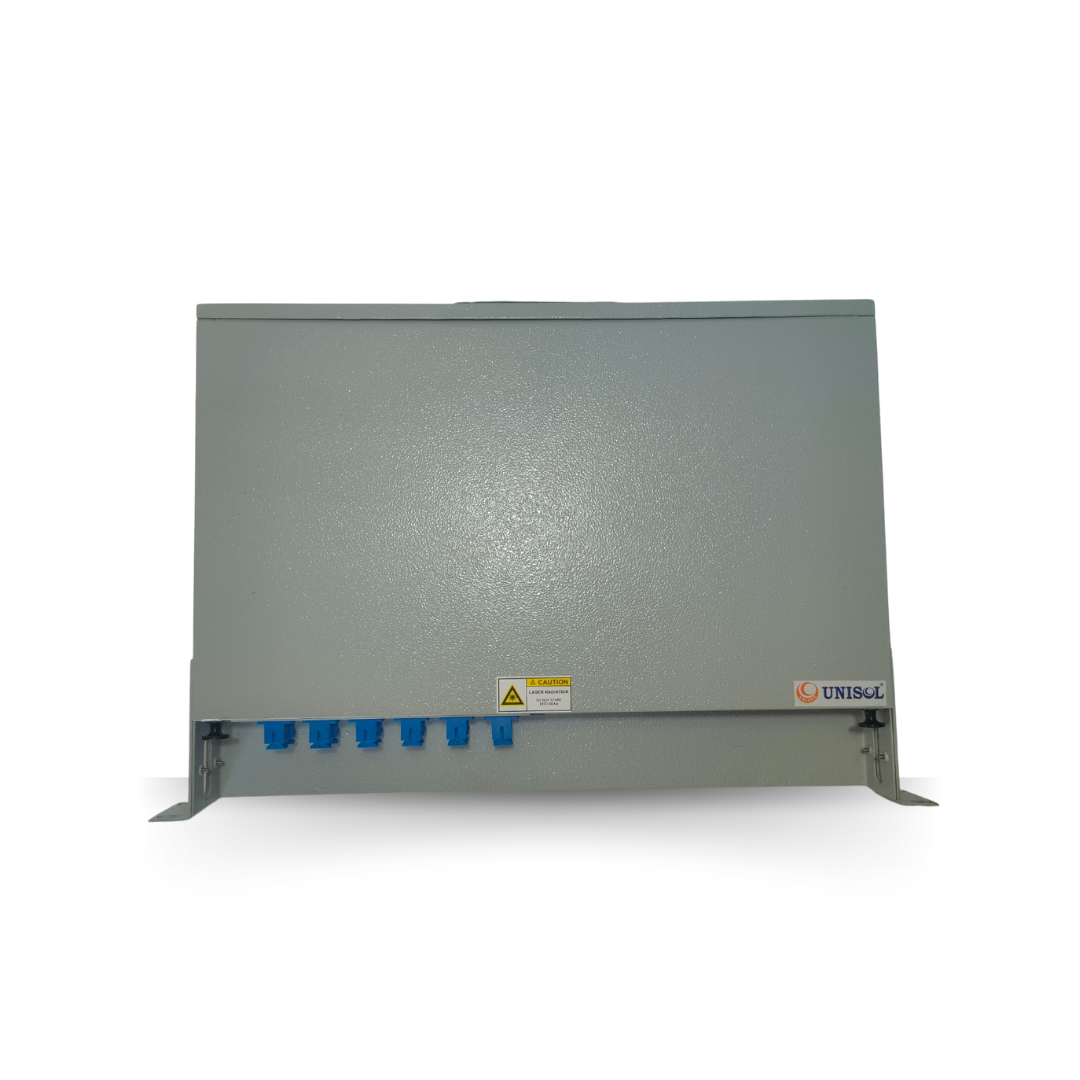

UNISOL 12 Port Fiber Optic Rack Mount Patch Panel is designed for 19″ rack mounting and comes in a two-panel detachable model. These Rack Mount Splice Enclosures are available pre-loaded with splice trays and a variety of adapter interfaces. Our Fiber Optic LIU supports 12 ports that allow users to connect, manage, and organise both incoming and outgoing cables. It is a cost effective solution with the potential to be upgraded to 24 ports in the future. It facilitates the splicing and termination of optical fiber cables (OFC) and pigtails in fibre access networks, providing cross-connect and interconnect capabilities. This 19-inch, 1U-sized Rack Mount Fiber Optic LIU is ideal for high-density LAN connectivity or cross-connect patching and offers user-friendly features that take fibre patching to a new level. It is designed with unique features that make Fiber Optic communication installation and troubleshooting faster, easier, and more cost-effective.

  • MS/Aluminum housing with seven Tank process powder coating.
  • Suitable for 19’’Rack mount Applications
  • Replaceable panel for SC/ST/LC/FC type couplers.
  • Can manage adapter panel for maximum 48 SC/48 LC in 1U size
  • Capable of storing up to three meters of 900 micron tight buffered fiber cable

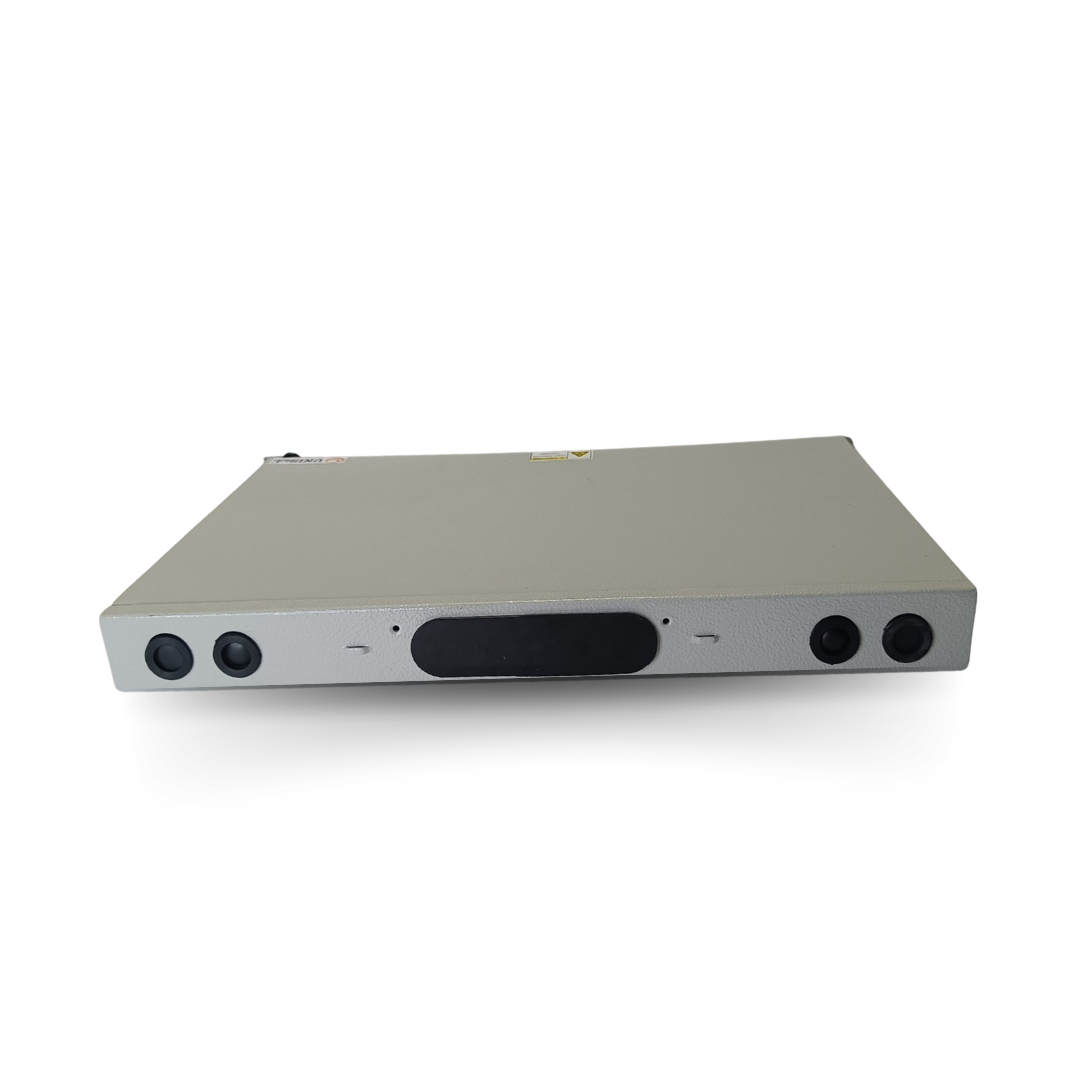

  • Allow maximum six cables entry.
  • Patch or fusion splice field termination standard.

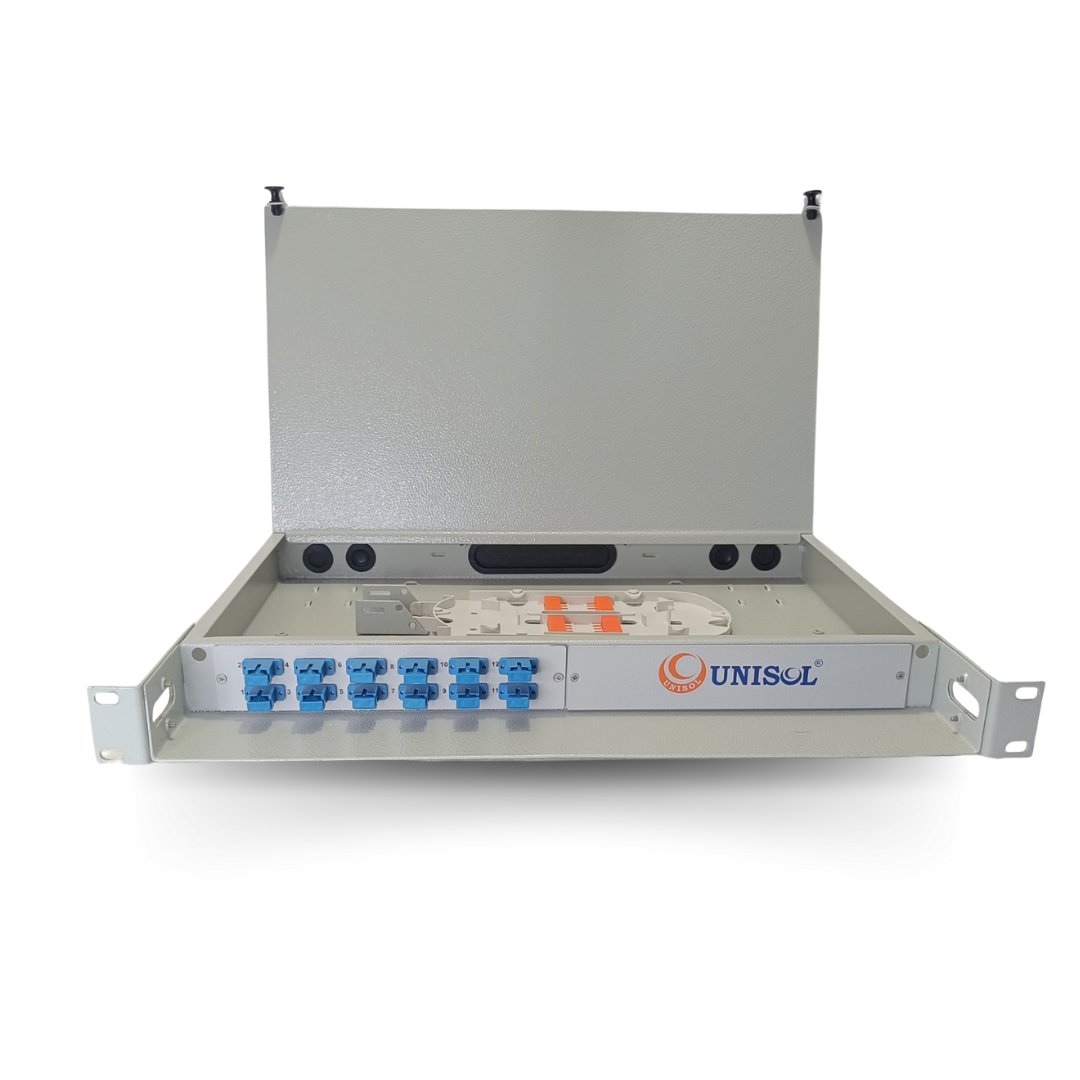

  • High impact resistance splice tray & cable spool for fiber & pigtail routing
  • Accessory kit includes mounting ear, cable gland, cable ties and screws
  • Indoor Premise Networks
  • Central offices (FTTx)
  • Data Centers
  • Telecommunication Networks
  • Security Surveillance
  • Process Automation & Control Systems
  • Power Systems & Controls
DescriptionPart No.
Unisol 24 Port Rack Mount Fiber Optic Patch Panel/LIUUCPL-STD-24PRM-PP
Unisol 48 Port Rack Mount Fiber Optic Patch Panel/LIUUCPL-STD-48PRM-PP
Unisol Adapter panel 1×12 SC SM SimplexUCPL-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM SimplexUCPL-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM DuplexUCPL-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM DuplexUCPL-SCMM12PDPX
Unisol Adapter panel 1×12 SC SM DuplexUCPL-SCSM24PDPX
Unisol Adapter panel 1×12 SC MM DuplexUCPL-SCMM24PDPX
Unisol Adapter panel 1×12 ST SM SimplexUCPL-STSM12PSPX
Unisol Adapter panel 1×12 ST MM SimplexUCPL-STMM12PSPX
Unisol Adapter panel 1×12 LC SM DuplexUCPL-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM DuplexUCPL-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM SimplexUCPL-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM SimplexUCPL-FCMM12PSPX
