8/12 Port Wall Mount LIU

Wall Mount Patch Panel

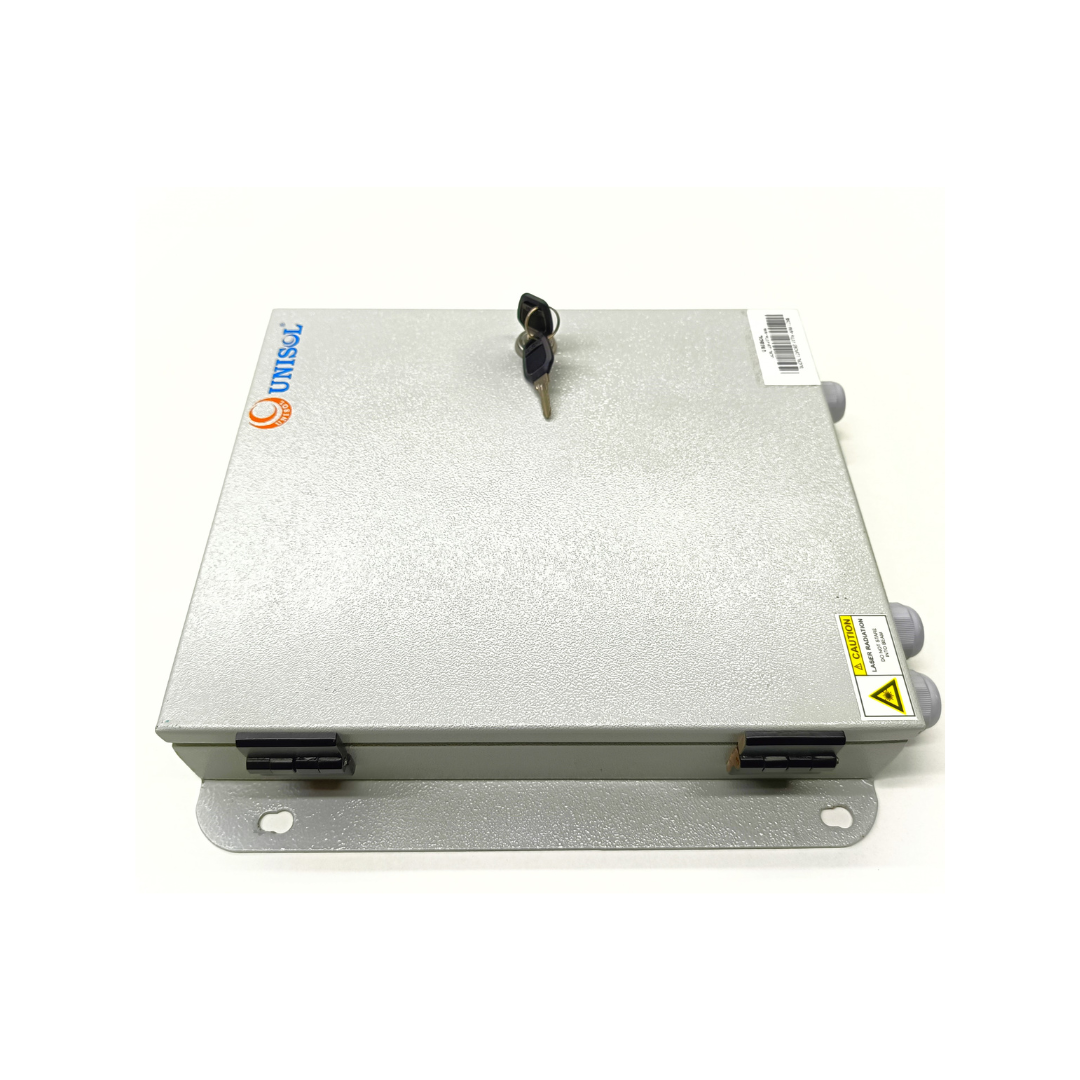

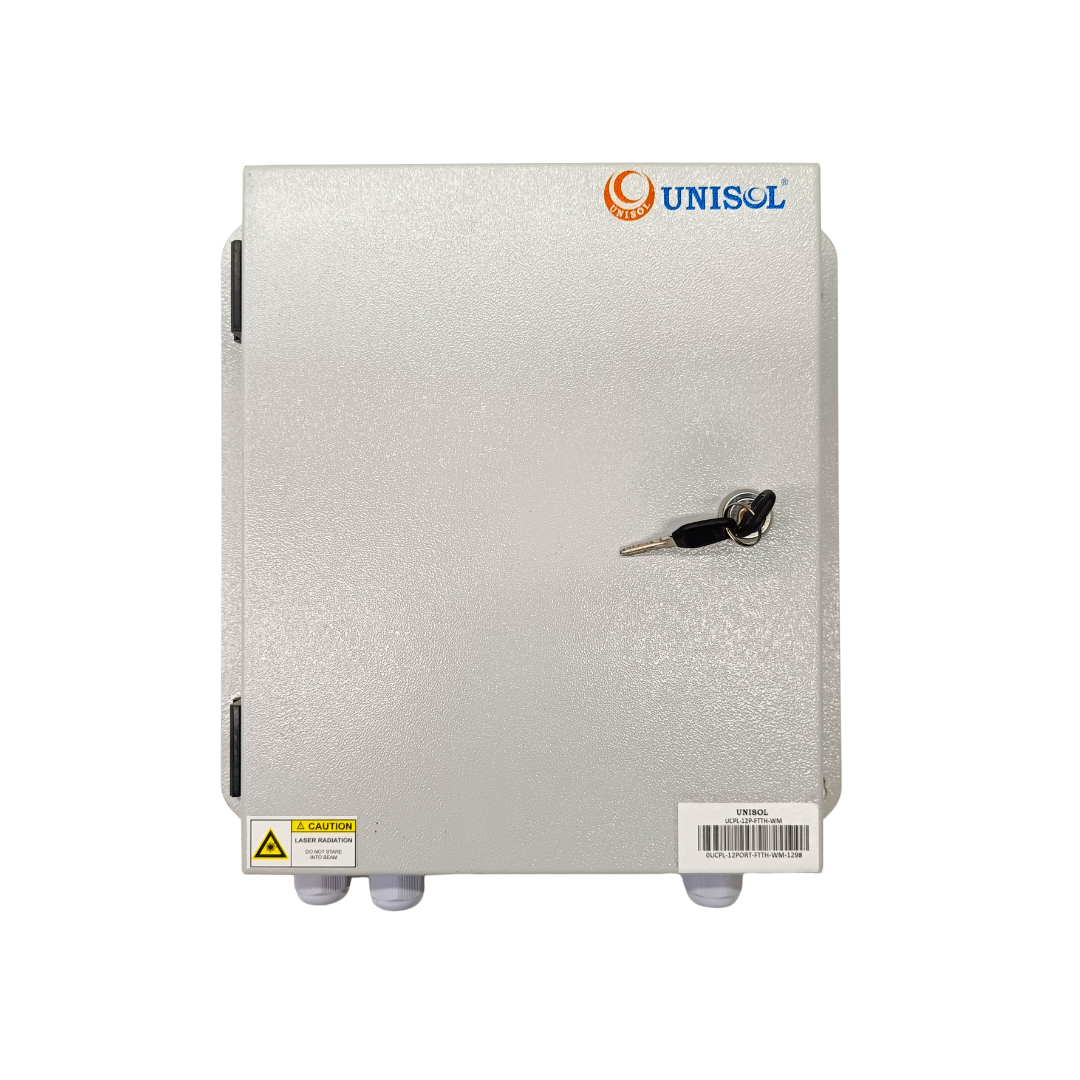

8/12 Port Wall Mount patch panel/LIU

SPECIFICATIONS:

  • Material : CRCA/Aluminum with 7 Tank Process powder coating.
  • Dimensions : 310*250*60 mm (H*W*D)
  • Color : RAL 7035/Black
  • Weight : 1.8–2 kg
  • Splice Holder : FR grade ABC.
  • Splice Holder Dimension : 180*110*28 mm (L*W*H)
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 times

UNISOL Wall Mount Fiber Optic Patch Panel combines three primary functions: Fiber splicing, cable winding and storage, and interface management. This IP55 certified wall mount patch panel offers features including resistance to dust, humidity, rain, moisture and vandalism. It provides 8 ports for connection and supports cross-connect and interconnect capabilities for splicing and terminating outdoor cables and FTTH drop cables in a Fiber access network. Our FTTH series Wall Mount Fiber Termination Box is intended for rapid repair and storage of fiber terminations. It is also used for FTTx indoor and outdoor applications and medium-sized multi-dwelling units (MDUs). It offers a comprehensive selection of fiber management systems (FMS) that are completely compatible with industry grade fiber adapters. It is an excellent design for networking in buildings and on campuses.

  • Single door hinged type design
  • High quality Mild Steel Body
  • Mechanical seal
  • IP 55 Rated
  • 100% tested for Mechanical and optical characteristics
  • Installation: Outdoor and Indoor Application
  • Mechanical seal for Excellent seal performance and reusable
  • Outside Plant
  • Mining & Military
  • Road & Rail
  • Ship to shore
  • Industrial Uses
  • Transmission boxes for substation
  • CCTV & FTTH
  • Factory and Automation
DescriptionPart No.
Unisol IP 55 Rated Wall Mount Fiber Optic Patch Panel/LIUUCPL-WM-12P-PP
Unisol Adapter panel 1×12 SC SM SimplexUCPL-WM-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM SimplexUCPL-WM-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM DuplexUCPL-WM-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM DuplexUCPL-WM-SCMM12PDPX
Unisol Adapter panel 1×12 ST SM SimplexUCPL-WM-STSM12PSPX
Unisol Adapter panel 1×12 ST MM SimplexUCPL-WM-STMM12PSPX
Unisol Adapter panel 1×12 LC SM DuplexUCPL-WM-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM DuplexUCPL-WM-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM SimplexUCPL-WM-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM SimplexUCPL-LCSM24PDPX
