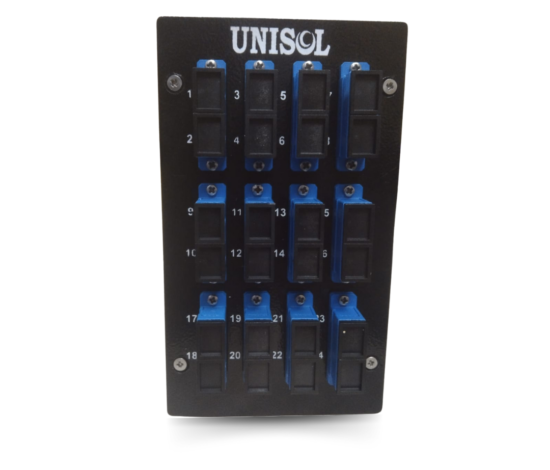

3 Fold Micro Din Rail Patch Panel

Unisol 3 Fold Micro 24 Port DIN Rail Mount LIU is a high-capacity, compact solution designed for industrial, telecom, and automation applications where fiber optic management must be reliable, organized, and space-efficient.

Designed to mount securely on a standard 35mm DIN rail, this fiber panel delivers exceptional connectivity density without compromising durability or ease of access making it ideal for environments with limited space and high-performance demands.

Fabricated from powder coated mild steel, this 24 port fiber patch panel is rugged enough to withstand the rigors of industrial conditions, including vibration, temperature changes, and dust exposure. Its compact footprint allows it to be installed inside control panels, automation enclosures, wall mounted boxes, or telecom cabinets, making it the go to solution where traditional rack mounted patch panels are too large or impractical.

The durable powder coating provides added protection against corrosion, ensuring reliable performance over time even in challenging environments such as smart factories or energy substations.

This DIN rail mountable patch panel for fiber supports up to 24 ports and can accommodate up to 24 fiber cores, depending on the connector type and cable configuration. It’s compatible with industry standard adapter types including SC, LC, ST, and FC, supporting both single-mode and multimode fibers. The 24 port configuration offers network engineers the flexibility to scale fiber connections efficiently while maintaining a clean and professional appearance inside control cabinets or distribution frames.

Designed specifically for DIN rail mounting, this fiber panel ensures easy integration into setups where other DIN-rail devices such as switches, media converters, or power supplies are already in use. Its compact design allows it to fit perfectly in tight installations without crowding the space, making it a preferred solution in factory automation, telecommunication hubs, and critical control systems.

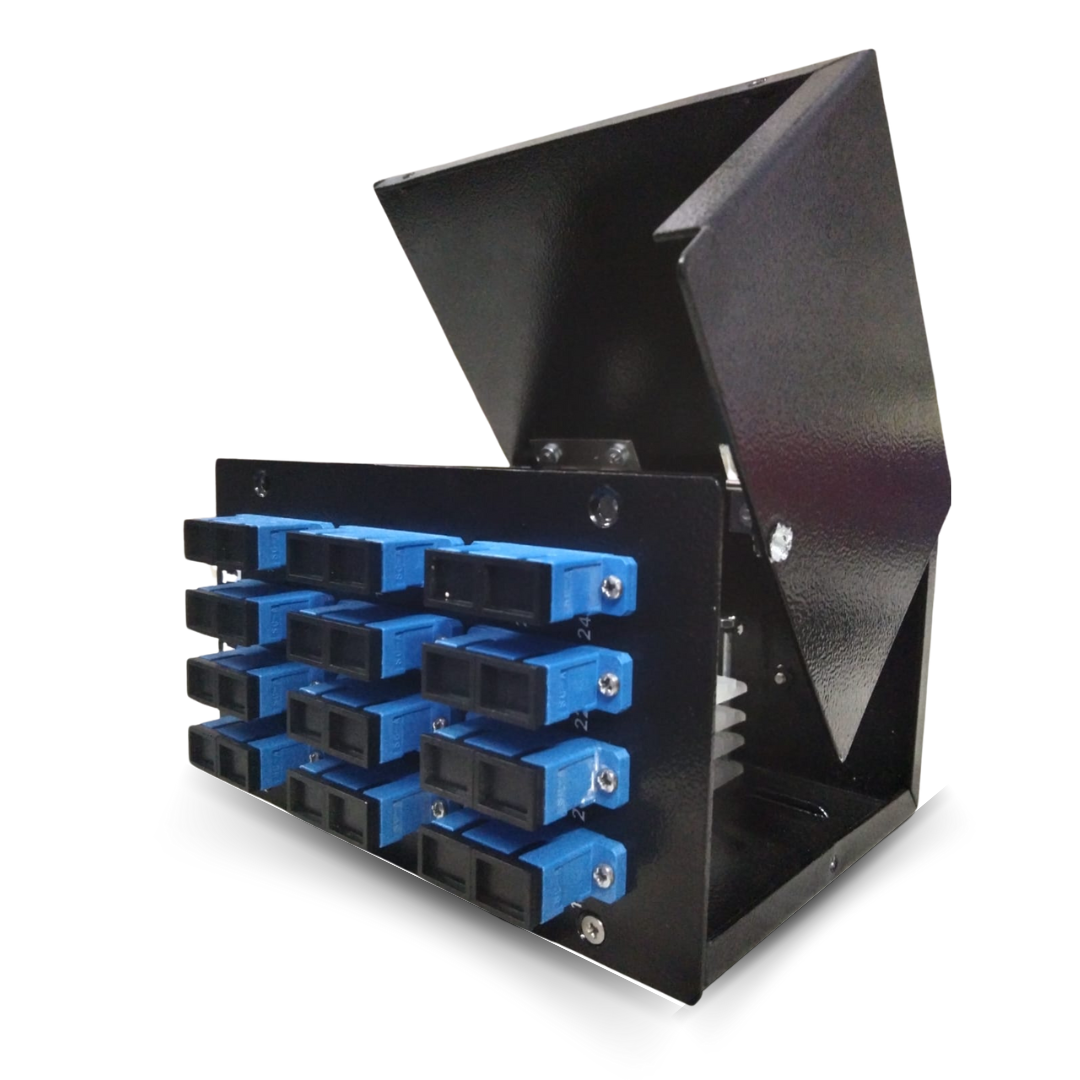

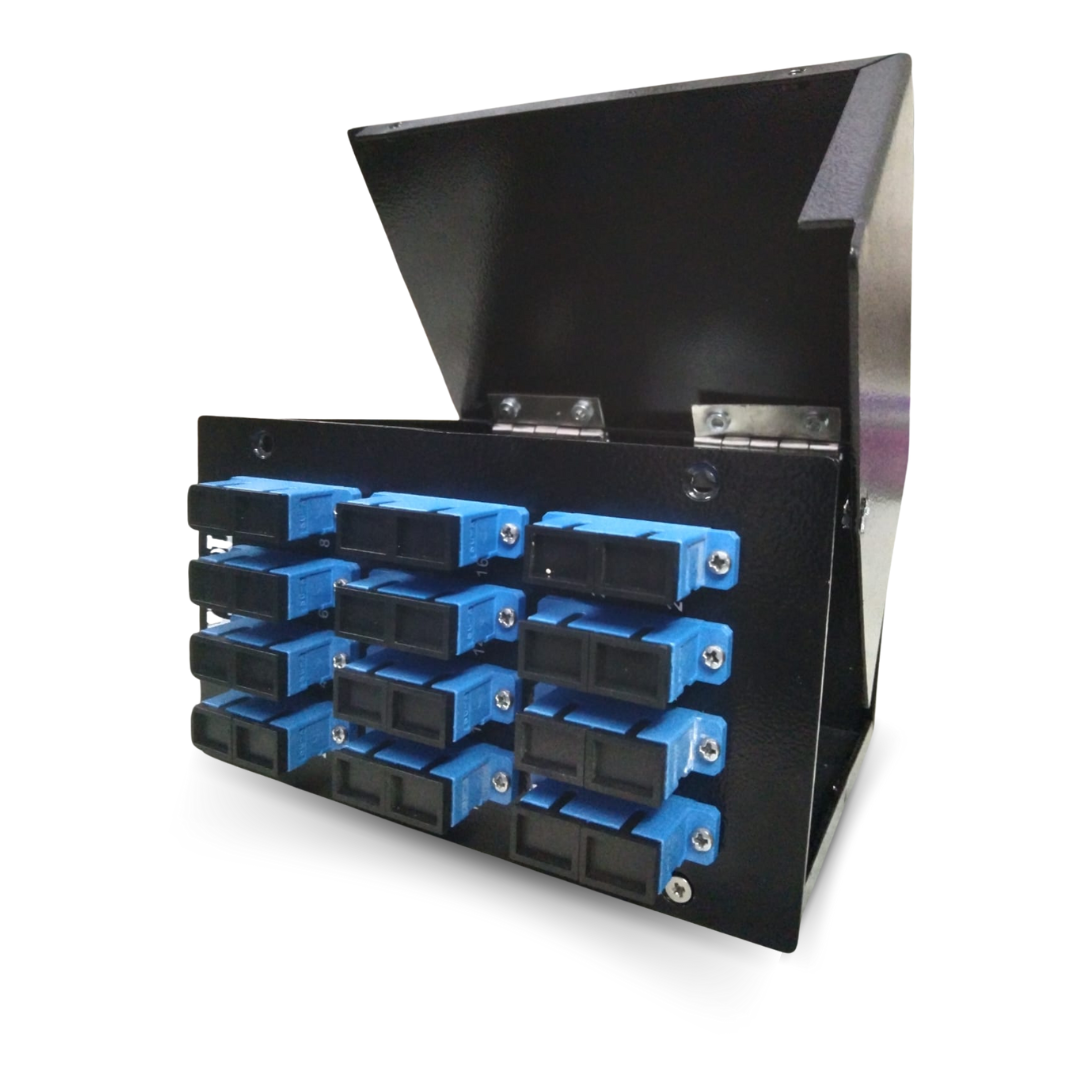

Maintenance and upgrades are simplified with the fiber panel’s swing-out design, allowing quick access to internal fiber connections. Technicians can easily inspect, reconfigure, or expand connections without removing the panel from its DIN rail mount, saving both time and effort during servicing. This user-friendly feature is particularly valuable in enclosed or crowded spaces, where disassembling hardware can interrupt workflows or risk damaging adjacent components.

Poor cable routing can lead to signal loss, breakage, or unnecessary downtime. That’s why the 24 Port Fiber Patch Panel is engineered with optimized internal routing paths that maintain proper bend radius and minimize cable stress. Clean layout, clear port labeling, and secure termination points ensure professional-grade organization, contributing to better network performance and long-term system reliability.

Whether you’re installing a single-mode fiber backbone or a multimode fiber distribution system, this DIN rail patch panel provides the versatility needed to support different connector types and transmission requirements. It works seamlessly in industrial Ethernet, SCADA, data center, and broadband infrastructure environments, providing a central hub for structured fiber connections.

Installing the 24 Port DIN Rail Fiber Patch Panel is quick and straightforward, no special tools required. It snaps into place on standard 35mm DIN rails, aligning perfectly with other DIN-mounted components. Whether used in new installations or as part of a network upgrade, it delivers cost-effective scalability and consistent performance that supports evolving fiber demands.
