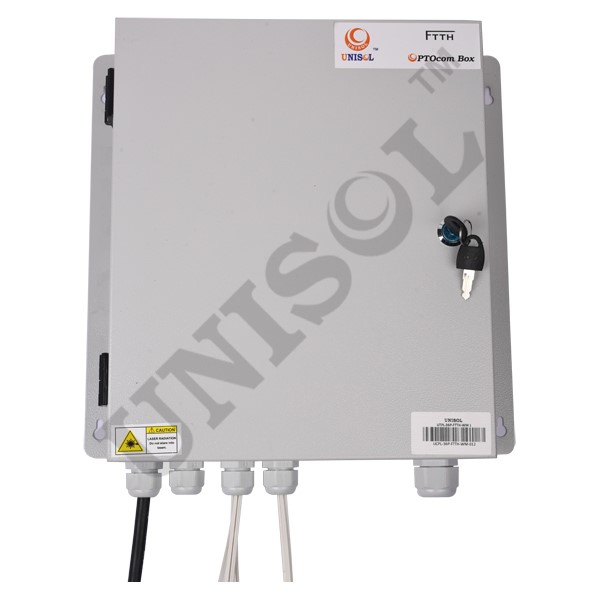

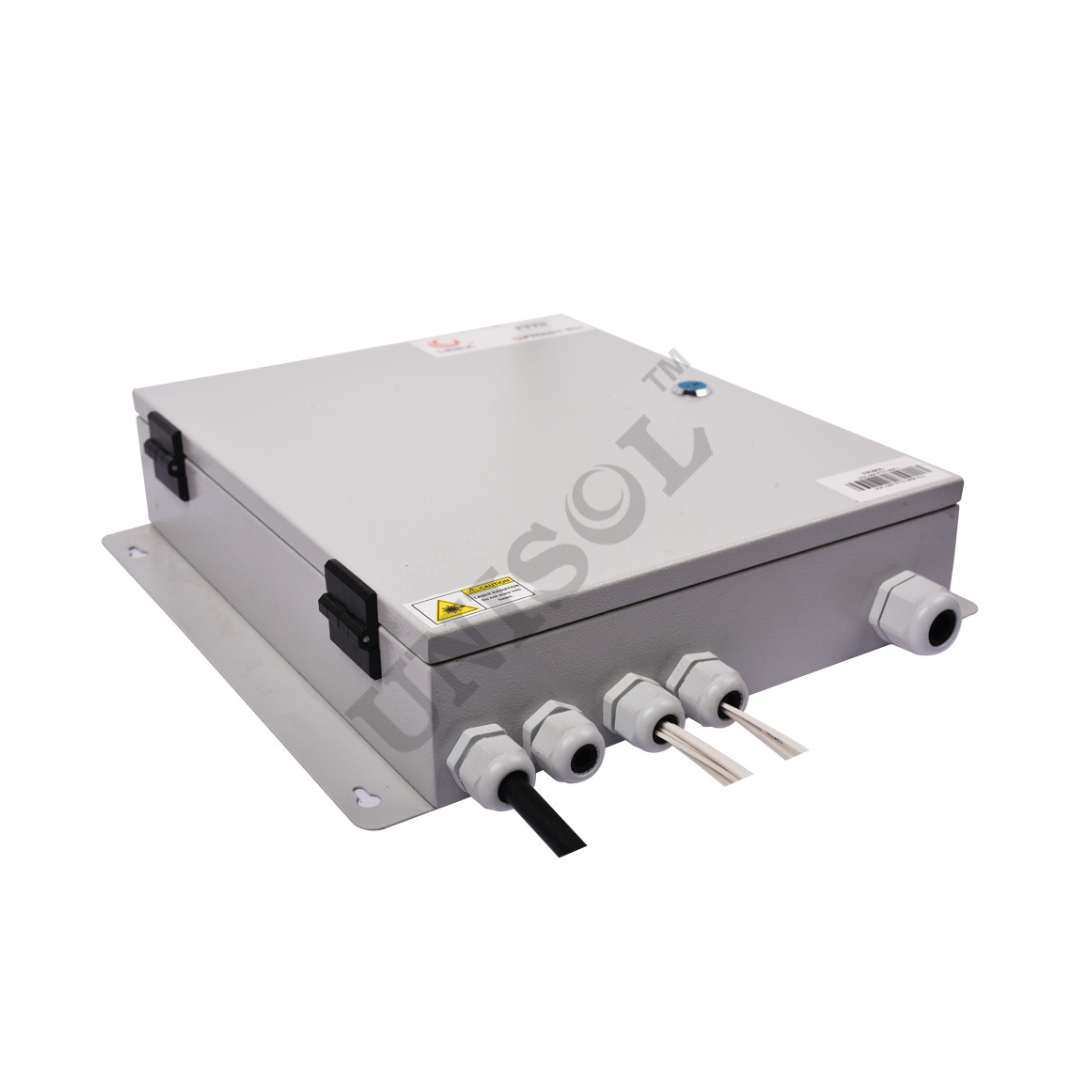

36 Port Wall Mount LIU

Wall Mount Patch Panel

36 Port Wallmount patch panel/LIU

SPECIFICATIONS:

  • Material : Mild Steel/Aluminum with 7 Tank Process powder coating.
  • Dimensions : 350*300*75 mm (H*W*D)
  • Color : RAL 7035/Black
  • Weight : 1.8–2 kg
  • Splice Holder : FR grade ABC.
  • Splice Holder Dimension : 180*110*15 mm (L*W*H)
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 times

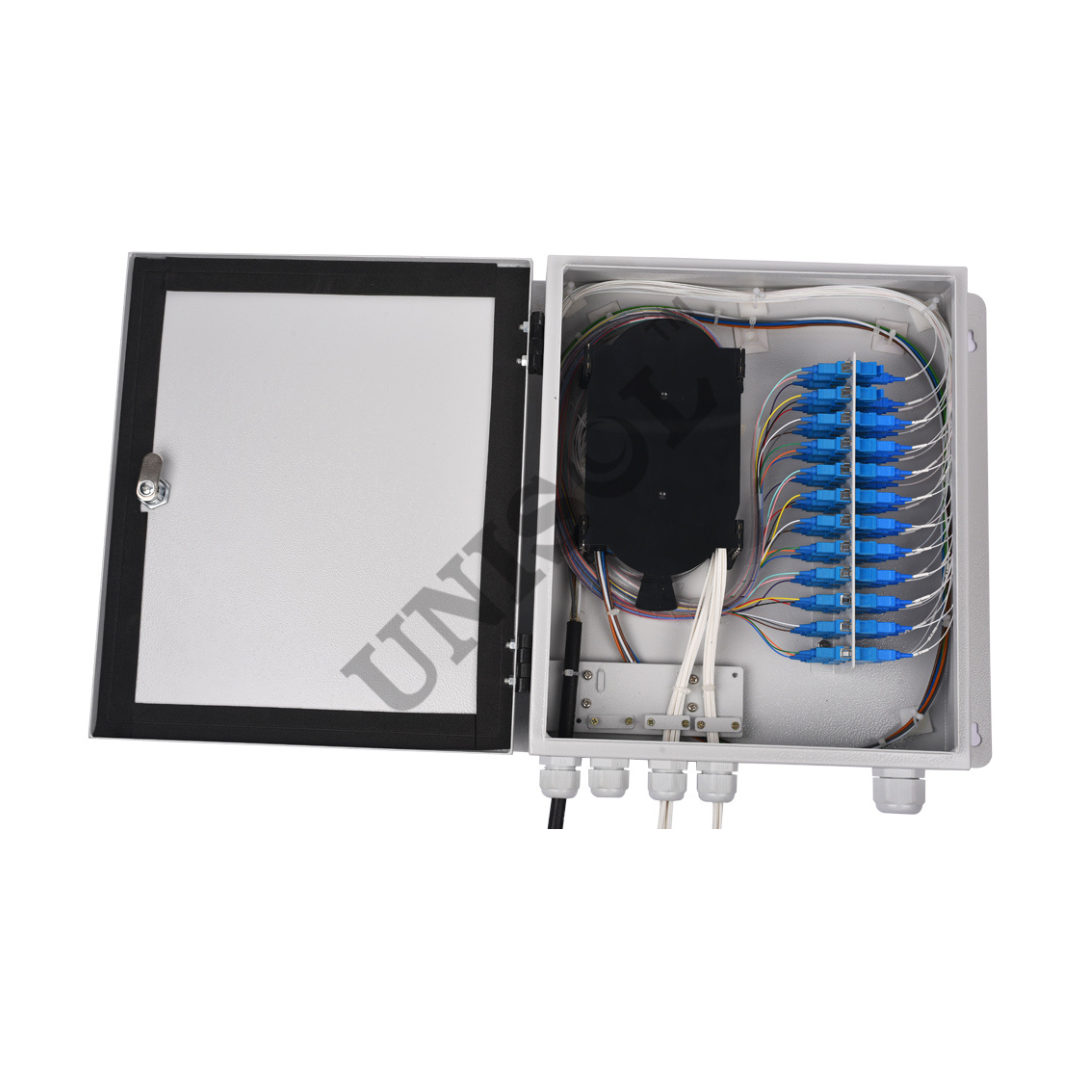

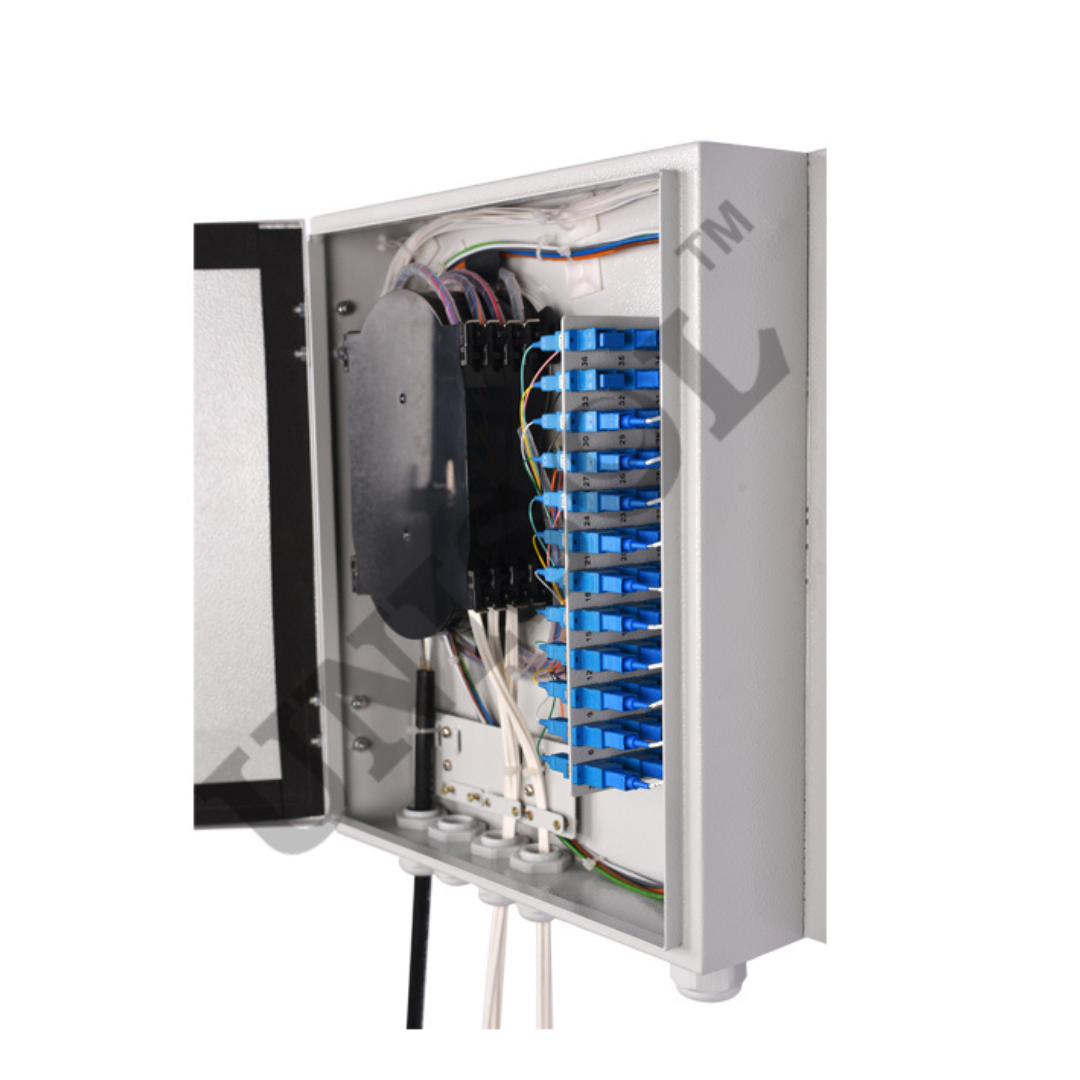

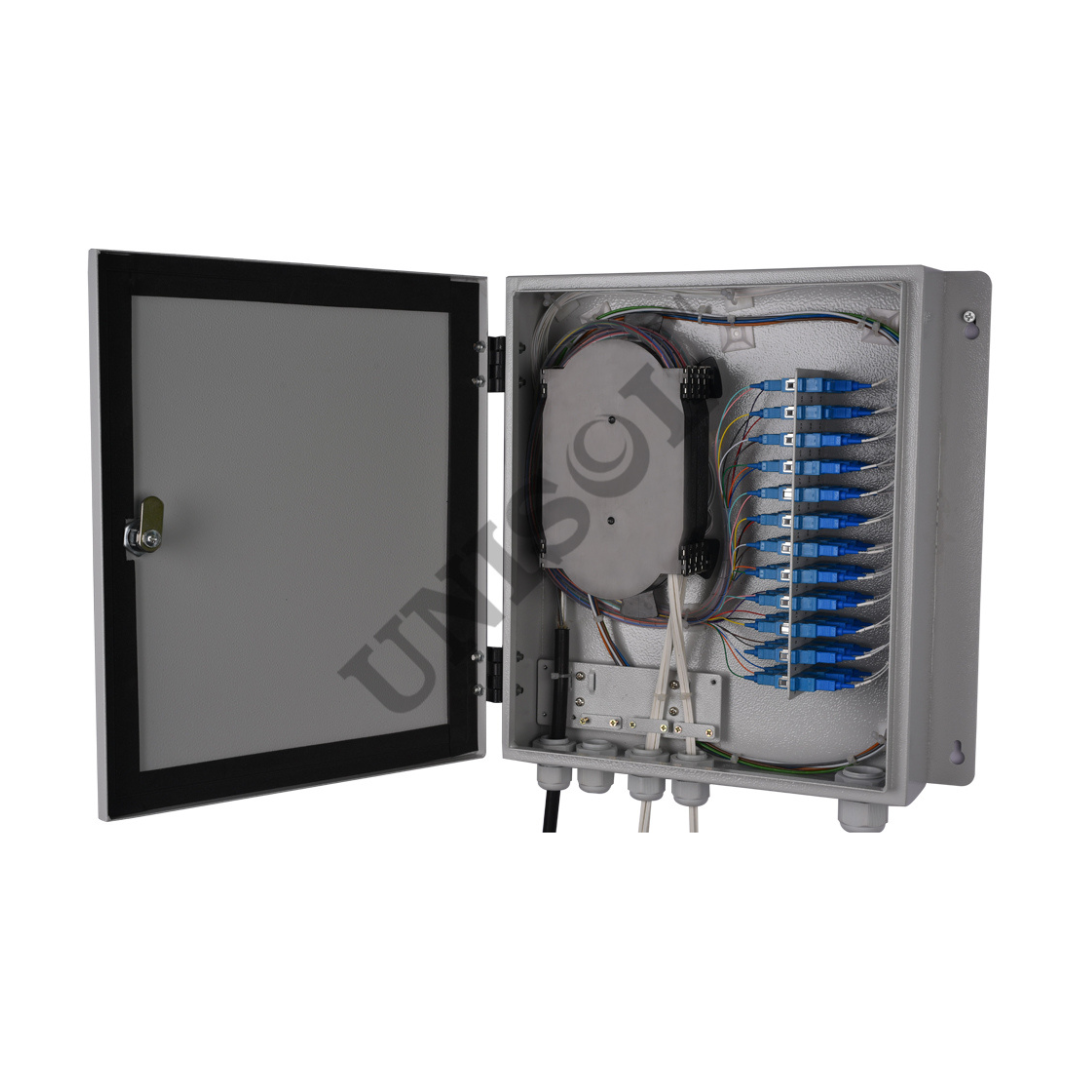

UNISOL Wall Mount Fiber Patch Panel/LIU are designed to support fusion splicing or direct termination of the fibers. This modular enclosure provides cross-connect and interconnect capabilities for splicing and terminating outdoor cables & FTTH drop cables in fiber access network. Our Wall mounts fiber patch panels are made with 16-gauge mild steel with corrosion-resistant seven tank process powder coating to provide excellent protection for the inside fibers. IP rated Fiber enclosure provides an extensive range of fiber management systems (FMS) fully compatible with industry grade fiber adapters. FTTH series wall mount fiber terminal box is designed to provide quick patching, storing fiber terminations. It is also used for Indoor/Outdoor application and medium size multi-dwelling units (MDU’s) for FTTx.

Our IP rated wall mount fiber optic patch panel integrates three main functions of fiber splicing, cable winding & storing, and interface management. The enclosure adopts good quality metal sheets & surface electrostatic spray technique, which is offering safety & good endurance performance. It is the ideal design for building & campus networking.

  • Single door hinged type design
  • High quality Mild Steel Body
  • Mechanical seal
  • IP 55 Rated
  • 100% tested for Mechanical and optical characteristics
  • Installation: Outdoor and Indoor Application
  • Mechanical seal for Excellent seal performance and reusable
  • Outside Plant
  • Mining & Military
  • Road & Rail
  • Ship to shore
  • Industrial Uses
  • Transmission boxes for substation
  • CCTV & FTTH
  • Factory and Automation
DescriptionPart No.
Unisol IP 55 Rated Wall Mount Fiber Optic Patch Panel/LIUUCPL-WM-12P-PP
Unisol Adapter panel 1×12 SC SM SimplexUCPL-WM-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM SimplexUCPL-WM-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM DuplexUCPL-WM-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM DuplexUCPL-WM-SCMM12PDPX
Unisol Adapter panel 1×12 ST SM SimplexUCPL-WM-STSM12PSPX
Unisol Adapter panel 1×12 ST MM SimplexUCPL-WM-STMM12PSPX
Unisol Adapter panel 1×12 LC SM DuplexUCPL-WM-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM DuplexUCPL-WM-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM SimplexUCPL-WM-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM SimplexUCPL-LCSM24PDPX
