48 Port Rack Mount Patch Panel / LIU

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

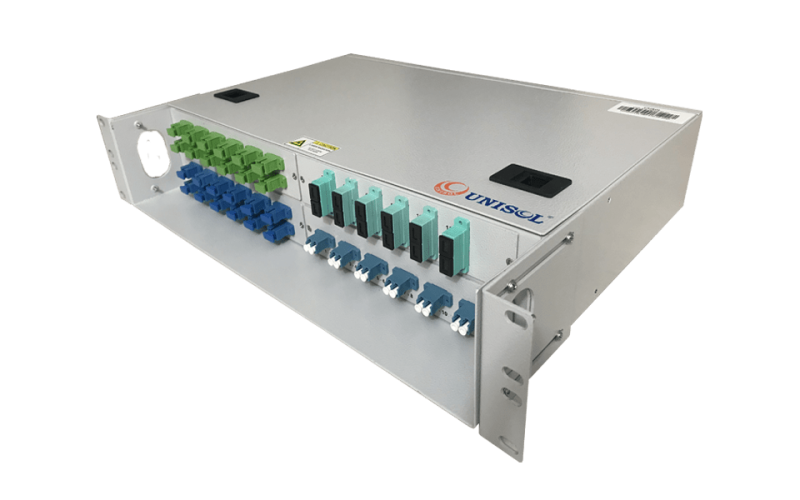

side view of powder coated 48 port rack mount patch panel loaded with sc simplex and duplex adapters and lc duplex adapters

48 Port Rack Mount Patch Panel

SPECIFICATIONS:

  • Material : Mild Steel/Aluminum
  • Dimensions : 88*430*320 mm (H*W*D)
  • Standard Color : RAL 7035/Black
  • Cable grommet : FR grade Nylon
  • Splice Holder Dimension : 220*110*10 mm (L*W*H).
  • Fiber components standard : Telecordia GR 326
  • Operating Temperature : -40 to +75 degree Celsius
  • Insertion Loss:  ≤ 0.2dB (SM), ≤ 0.3dB (MM)
  • Plug/Unplug durability : 1000 times
  •

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

Unisol 48 Port Rack Mount Patch Panel is built for managing high density network cabling in enterprise environments, data centers, and telecom rooms. Designed with durability and flexibility in mind, these patch panels provide a centralized and organized point for cable termination, routing, and management.

The 48 port patch panel is structured with a 2U form factor, which aligns with the industry standard rack dimensions. This 48 port fiber patch panel’s 2U configuration allows for efficient use of vertical space in 19 inch rack cabinets, ensuring compatibility with most server racks and network enclosures.

Crafted from materials such as mild steel or aluminum, the 48 port fiber patch panel offers superior strength, heat resistance, and protection for internal components. Each fiber panel is powder coated in standard RAL 7035 or black color, adding a clean, professional finish while enhancing corrosion resistance.

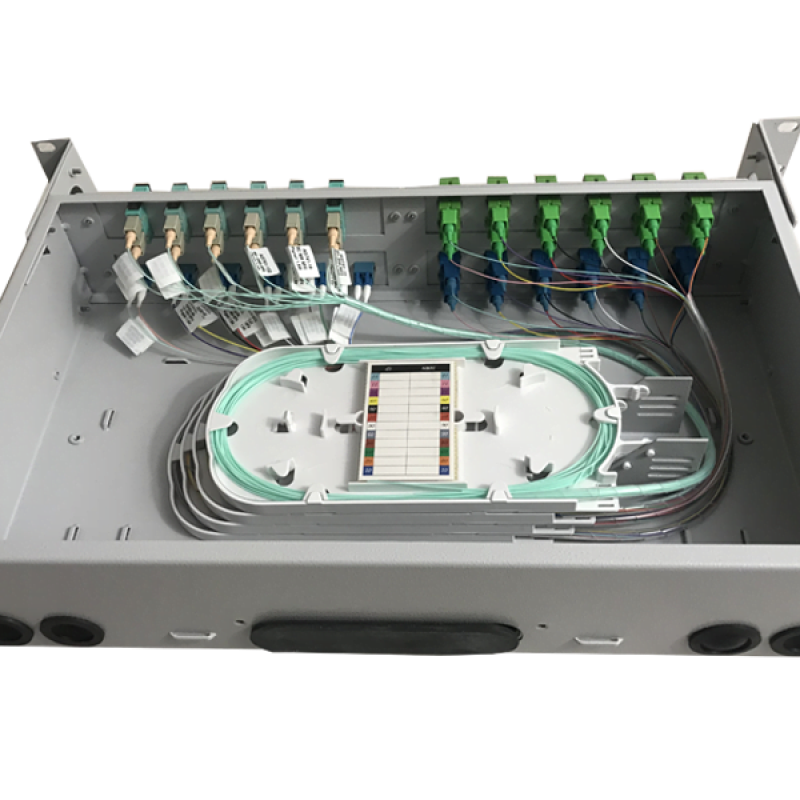

Unisol 48 port rack mount fiber patch panel can be preloaded with single-mode or multi-mode fiber adapters, depending on network requirements. Installation and maintenance are streamlined through a fully removable top cover, providing easy access to the internal wiring and splice management kit. This kit includes all the essential components, such as splice trays, cable glands, cable ties, mounting ears, and splice sleeves. Designed to keep splicing operations clean and efficient. The plug/unplug durability of 1000 times ensures long term reliability, even in high-traffic environments.

Unisol 48 port fiber panel is engineered to operate in diverse environmental conditions. With an operating temperature range of -40°C to +75°C and a fiber standard that complies with Telecordia GR 326, this fiber patch panel ensures superior performance and durability. Whether installed in a data center or a telecommunications room, the fiber panel maintains low insertion loss (≤ 0.2 dB for SM and ≤ 0.3 dB for MM), providing excellent transmission quality over time.

Available in 1U and 2U sizes, Unisol’s 48 port rack mount patch panel solutions cater to growing networks that require scalability. The 48 port fiber patch panel in 2U configuration is particularly advantageous for environments that need a balance between high port density and manageable cable routing. With 48 ports on a 2U frame, technicians can work comfortably without overcrowding, which improves airflow and accessibility during troubleshooting or expansion.

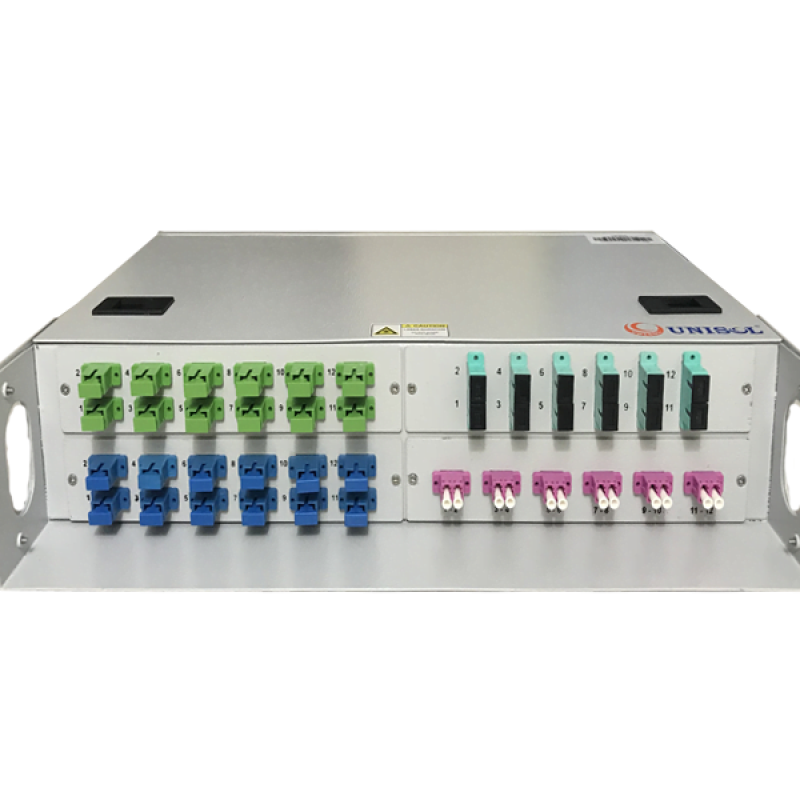

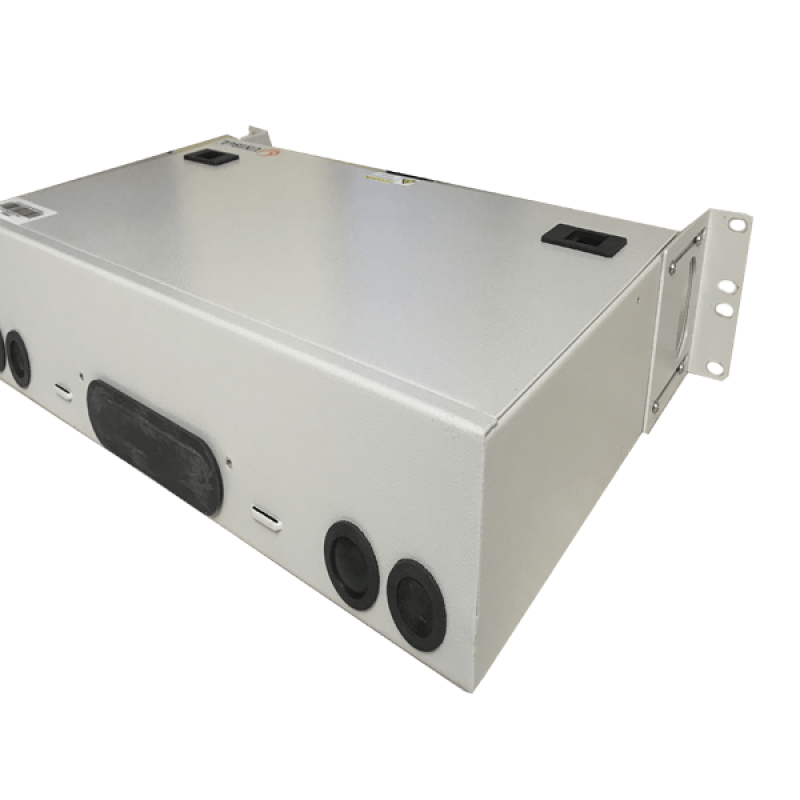

From a design standpoint, the patch panel for fiber features well organized front ports with labeled numbering, helping users quickly identify and trace cables. Rear cable grommets made of FR-grade nylon add an additional layer of safety, improving cable retention and fire resistance.

For organizations seeking to upgrade or implement structured cabling systems, the 48 port fiber patch panel is a practical investment. Not only does it reduce cable clutter, but it also improves network efficiency by minimizing signal loss, electromagnetic interference, and cable strain.

Unisol’s attention to detail ensures that every fiber patch panel is tested for performance and durability before it reaches the customer. This focus on quality control, along with comprehensive technical specifications, provides end users with confidence in their network infrastructure.

For enterprises that demand high availability, consistent uptime, and minimal maintenance overhead, the 48 port rack mount patch panel is an essential building block. Its robust mechanical design, coupled with industry grade components and adherence to international standards, ensures that your network operates smoothly and efficiently at all times.

The 48 port rack mount fiber patch panel brings order, efficiency, and resilience to your growing network infrastructure, making it a key asset in maintaining seamless connectivity and uptime.

• Rugged Mild Steel/Aluminum construction with powder coating.
• Supports up to 96 ports for connection.
•
Can be loaded with a variety of adapters, including SC/ST/LC/FC in single mode and multimode.
• Allows a maximum of four cable entries.
• Patch or fusion splice field termination standard.
• Includes a splice tray for fusion splicing of field cables and fiber protection.
• Supports up to 24 splices per splice tray.
• Stacked splice tray is convenient for future capacity expansion
• Suitable for 19’’ rack mount applications.
• Accessory kit includes a mounting ear, cable gland, cable ties and screws.

  1. Data Centers
  2. Local Area Networks
  3. Telecommunication Networks
  4. Wide Area Networks
  5. Security Surveillance Systems
  6. FTTx System
  7. CATV Networks
  8. Test Instruments
NAME  PART NO.
Unisol Standard 2U Rack Mount Fiber Optic Patch Panel/LIU  UCPL-2USTD-RM-PP
NAMEPORTMODEPART NO.
Unisol Standard 2U Rack Mount Patch Panel4 x 12ST SM SimplexUCPL-2USTD-STSM48PSPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12ST MM SimplexUCPL-2USTD-STMM48PSPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12SC SM SimplexUCPL-2USTD-SCSM48PSPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12SC MM SimplexUCPL-2USTD-SCMM48PSPX
Unisol Standard 2U Rack Mount Patch Panel4 x 6SC SM DuplexUCPL-2USTD-SCSM48PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 6SC MM DuplexUCPL-2USTD-SCMM48PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12SC SM DuplexUCPL-2USTD-SCSM96PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12SC MM DuplexUCPL-2USTD-SCMM96PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 6LC SM DuplexUCPL-2USTD-LCSM48PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 6LC MM DuplexUCPL-2USTD-LCMM48PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12LC MM DuplexUCPL-2USTD-LCMM96PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12LC MM DuplexUCPL-2USTD-LCMM96PDPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12FC SM SimplexUCPL-2USTD-FCSM48PSPX
Unisol Standard 2U Rack Mount Patch Panel4 x 12FC MM SimplexUCPL-2USTD-FCMM48PSPX
