616 Port Sliding Rack Mount Optical Distribution Frame

Unisol 616 Sliding Rack Mount Optical Distribution Frame (ODF) is a high capacity, precision engineered solution designed to meet the complex demands of modern fiber optic networks. Built for data centers, enterprise networks, and telecom hubs, this advanced rack mount ODF offers streamlined cable management, superior durability, and optimized fiber organization for seamless network operations.

With its high port density and fully extendable sliding tray design, the 616 rack mount ODF provides a powerful platform for terminating, splicing, and distributing fiber optic connections with unmatched efficiency. Supporting up to 616 fiber terminations in a single enclosure, it is the ideal solution for high density networking environments that require both performance and reliability.

The Unisol 616 Port Optical Distribution Frame Unit is purpose built to handle large scale fiber optic deployments with ease. Featuring a sliding rack mount design, the ODF allows network technicians to access internal components easily for splicing, termination, and maintenance. This accessibility is critical for time sensitive operations where quick troubleshooting and minimal downtime are top priorities.

Whether you are building a new core infrastructure or expanding your existing fiber network, the 616 port rack mount Optical Distribution Frame delivers the scalability and control needed to support mission critical systems and future ready bandwidth demands.

The Optical Distribution Frame is designed to fit seamlessly into standard 19 inch server racks, making it universally compatible with most data center and telecom cabinet infrastructures. Its modular construction and 6U form factor provide a compact vertical footprint while supporting an impressive number of fiber ports.

Manufactured from high grade powder coated mild steel, the Unisol 616 Sliding Rack Mount Optical Distribution Frame is built for long term use in harsh operating conditions.

The structural integrity of the Optical Distribution Frame ensures that it can withstand the mechanical stress of routine maintenance, cable rearrangement, and modular upgrades without compromising performance or longevity.

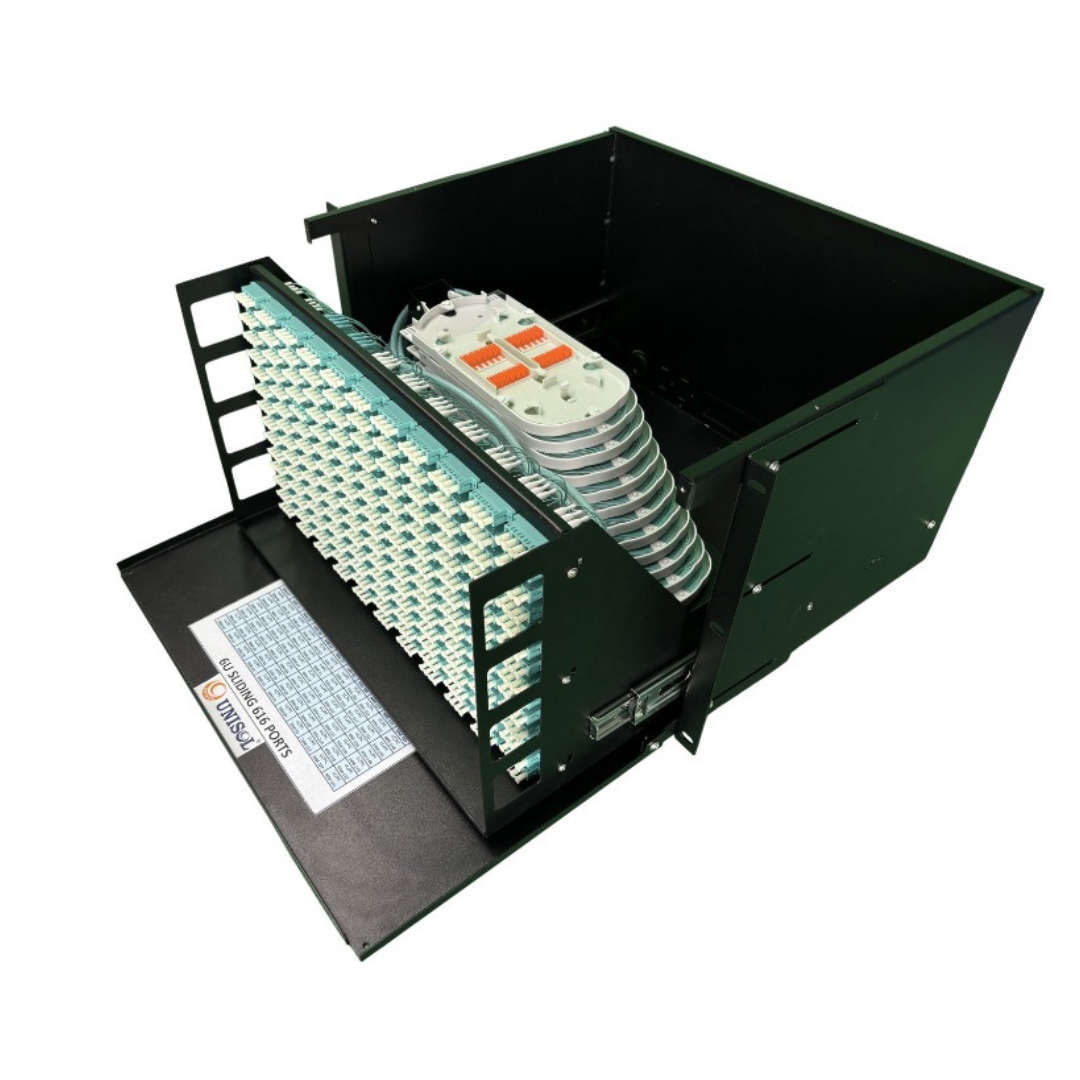

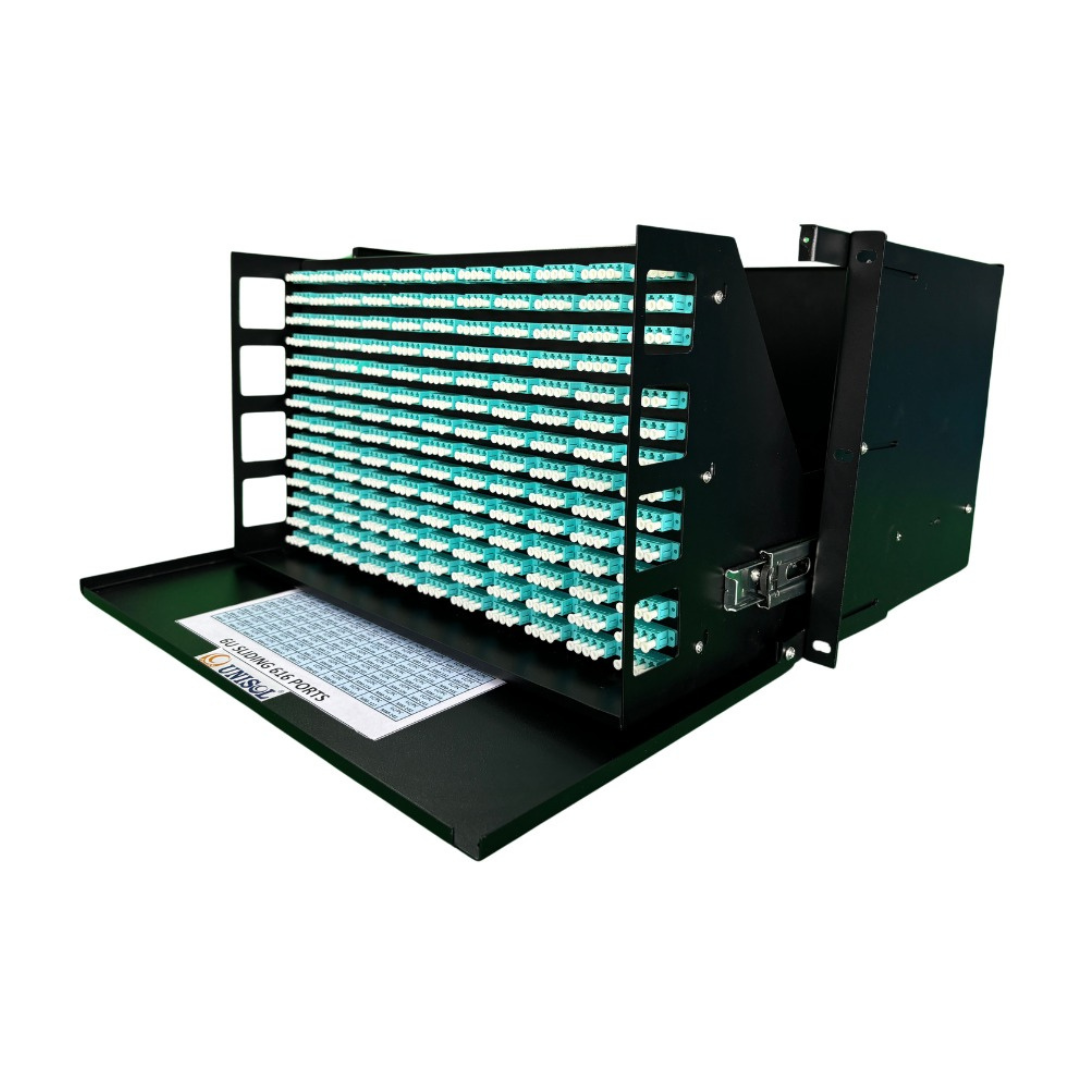

A standout feature of the Unisol 616 Port Optical Distribution Frame is its fully extendable sliding tray mechanism. The tray can be pulled out effortlessly, giving network engineers full access to fiber terminations, splice trays, and patch cords without the need to remove the entire enclosure from the rack. This feature significantly reduces maintenance time and simplifies the patching process, even in dense fiber environments.

The sliding tray is equipped with a removable top cover, providing unobstructed access to the internal layout. This enables clean splicing, easier fiber routing, and safe handling of delicate cables, all while maintaining network uptime.

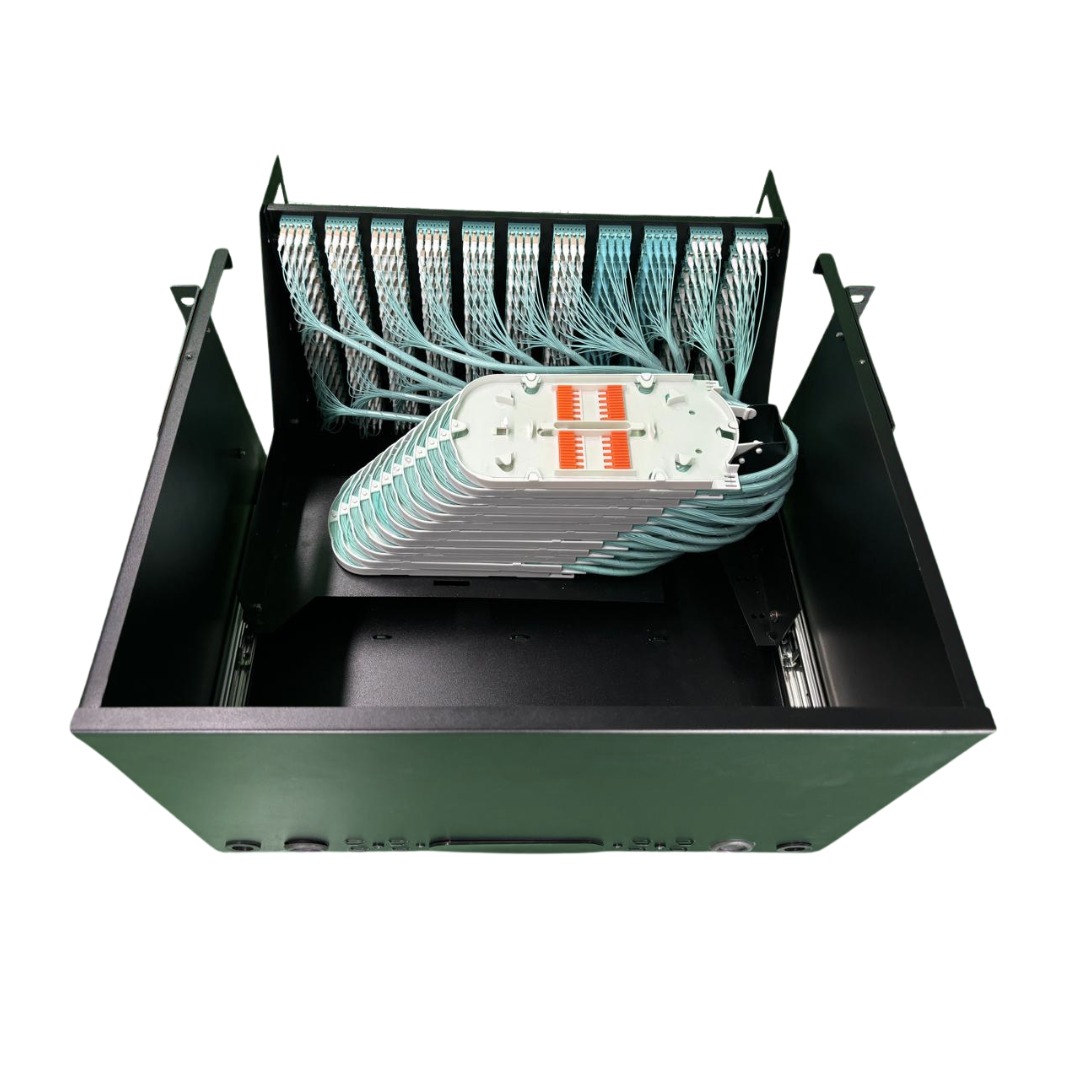

The 616 rack mount optical distribution frame is compatible with both fusion splicing and mechanical splicing methods. Each unit includes integrated splice trays, offering secure locations for organizing and protecting fusion splices. These trays are engineered to maintain minimum bend radius and ensure strain relief, preserving fiber integrity and reducing insertion loss over time.

This versatility makes the unit suitable for Singlemode and Multimode fiber applications, including OS1/OS2, OM1, OM2, OM3, and OM4 standards. Whether you’re deploying for long-haul transmission or high-speed LANs, the 616 port fiber patch panel adapts to your architecture.

Adapter panels are pre-loaded based on customer requirements, with port configurations available for custom deployment plans. Patch cords and pigtails are also available upon request for fully integrated patching solutions.

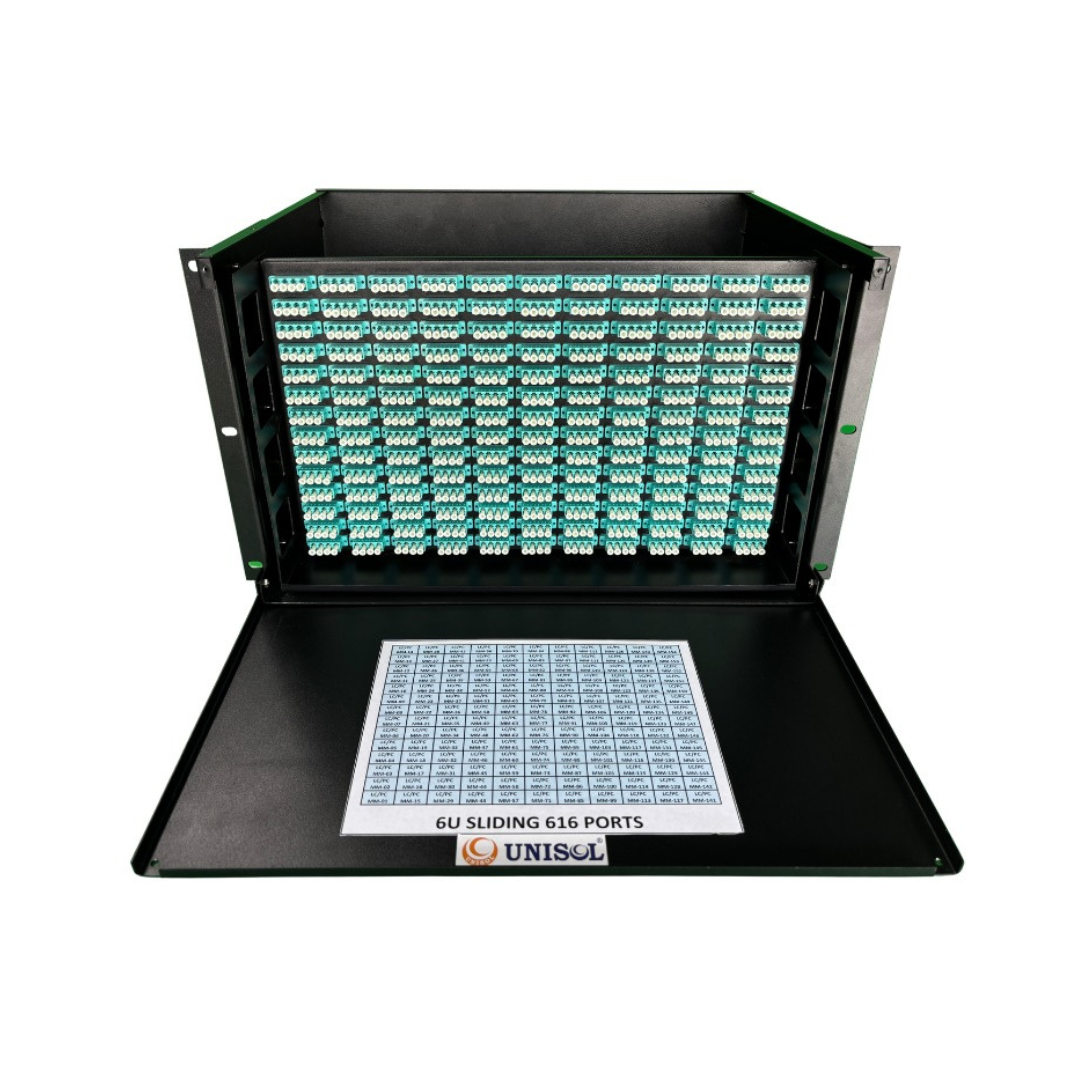

Despite its ability to support 616 fiber terminations, the Unisol rack mount ODF maintains a space efficient 6U height. This makes it one of the most compact high-capacity fiber patch panels on the market.

This high density design enables organizations to maximize rack utilization and reduce the total cost of ownership by consolidating patching fields into fewer rack units, an especially valuable advantage in premium rack space environments like data centers and core telecom exchanges.

Security is a key concern in shared IT environments, and the Unisol 616 port Optical Distribution Frame includes a lockable front door option to restrict unauthorized access.

This modularity ensures that you can start with what you need today and scale up seamlessly as requirements evolve, without major infrastructure changes or downtime.

The Unisol 616 Sliding Rack Mount Optical Distribution Frame is a professional grade fiber patch panel built to support high density fiber optic networks in a streamlined, accessible, and space efficient form. With its fully extendable sliding tray, robust construction, wide compatibility with adapters and splicing methods, and support for 616 fiber terminations, it represents the ideal balance between performance, manageability, and scalability.
