6U Sliding Rack Mount LIU

Rack Mount Patch Panel

6U Sliding Rack mount patch panel/LIU

SPECIFICATIONS:

  • Material : Mild Steel/Aluminum with 7 Tank Process powder coating.
  • Dimensions : 264*440*350 mm (H*W*D)
  • Color : RAL 7035/Black
  • Spool : FR grade PVC.
  • Cable grommet : FR grade Nylon
  • Splice Holder : FR grade ABC.
  • Splice Holder Dimension : 220*110*10 mm (L*W*D) * 8 no’s
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 times

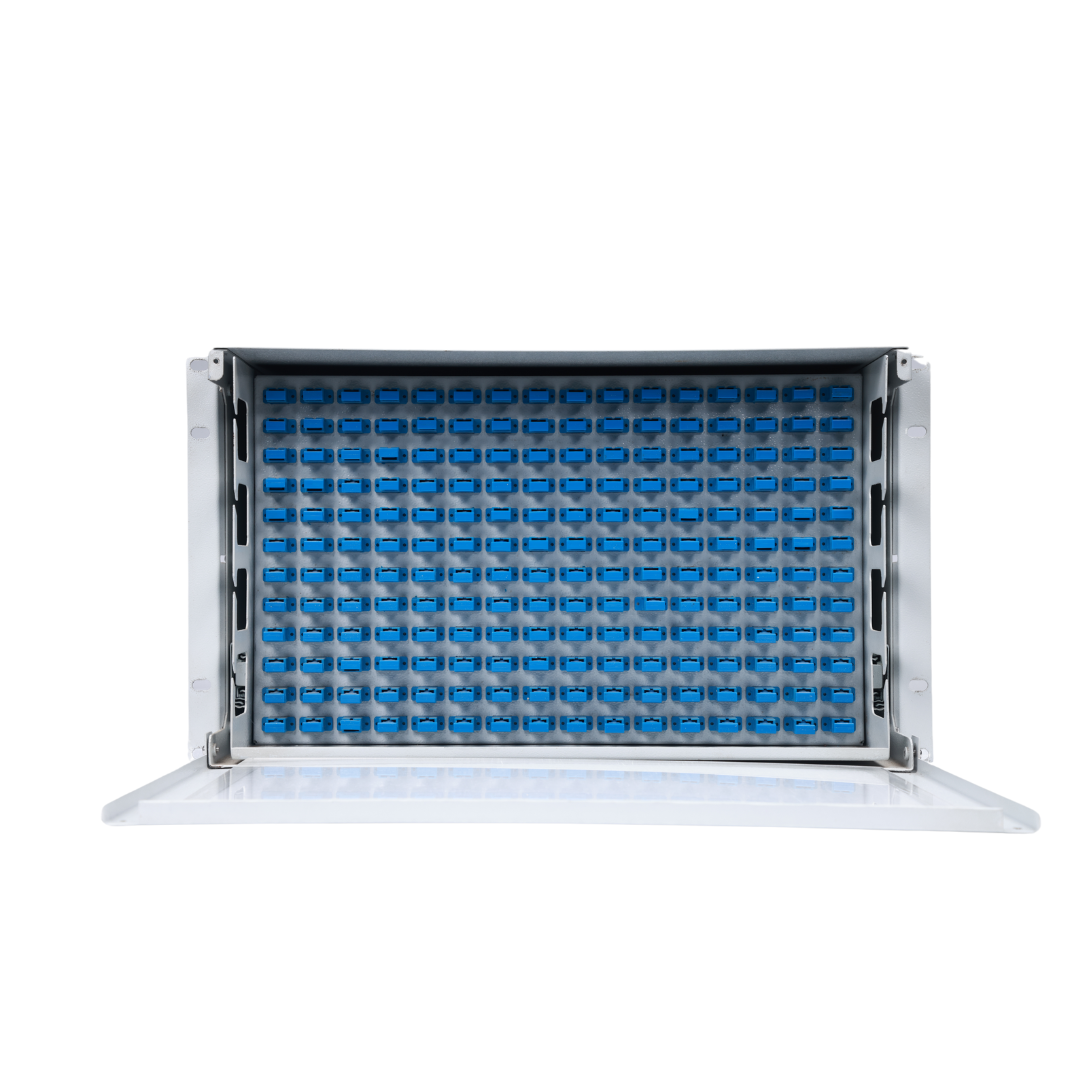

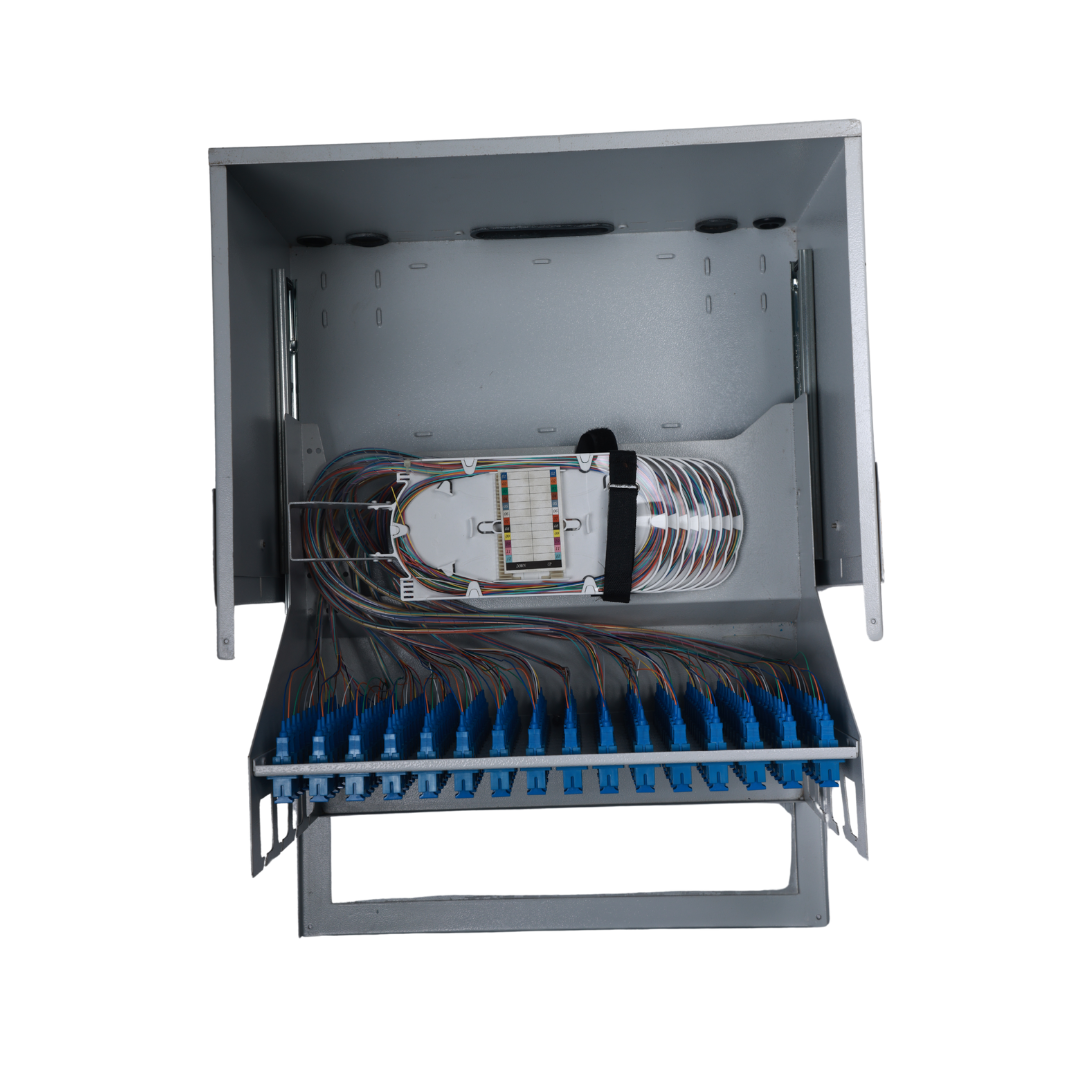

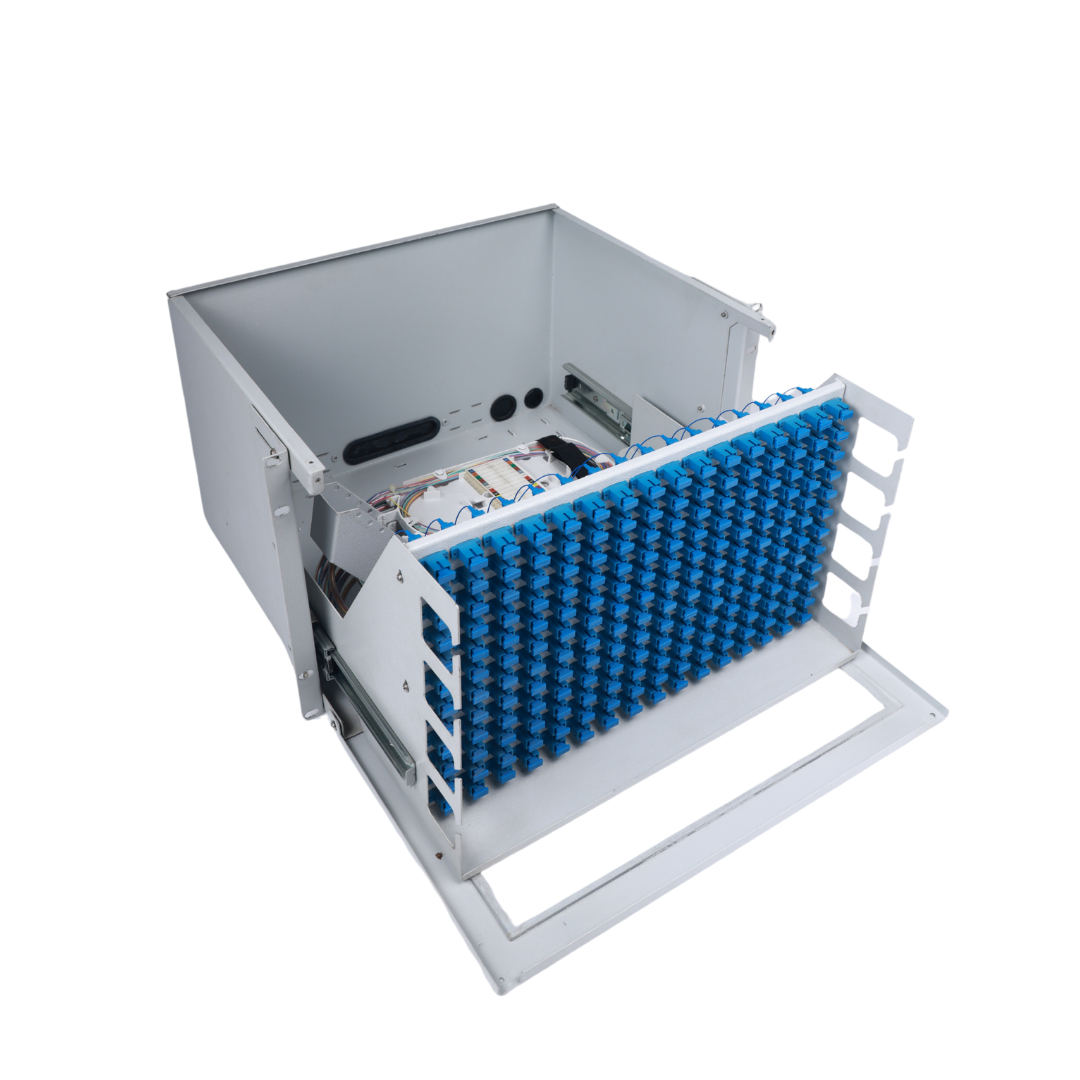

UNISOL 6U Sliding Rack Mount Fiber Patch Panel is designed to be installed in a 19″ rack frame. It has a front door locking system and a single sliding tray system for simple front panel slide out access for internal fiber management. The 6U slide-out tray can hold up to 192 ports in a single adapter panel. These Fiber Optic LIUs can accommodate many different adapters, including ST, SC, FC, and LC. When fully equipped with LC Duplex adapters, it can support up to 384 ports if there is a lack of rack space. The splice tray protects the splice joint and allows for an extremely small bend radius and enhance strain-relief control thanks to its design. The maximum number of cable entries that the Fiber Enclosure can support is eight. It simplifies the splicing and termination of Optical Fiber Cables (OFC) and pigtails in fiber access networks by enabling cross-connection and interconnection. It is built with unique features that make fiber optic communication installation and troubleshooting faster, easier, and more cost effective.

  • MS/Aluminum housing with seven tank process powder coating
  • Suitable for 19″ Rack mount Applications
  • Replaceable panel for SC/ST/LC/FC type couplers
  • Can manage adaptor panel for maximum 192 SC/ST/LC/FC in 6U size
  • Capable of storing up to three meters of 900 micron tight buffered fiber cable
  • Allow maximum eight cables entry
  • Patch or fusion splice field termination standard
  • High impact resistance splicing tray & cable spool for fiber & pigtail routing
  • Accessory kit includes mounting ear, cable gland, cable ties and screws
  • Indoor Premise Networks
  • Central offices (FFTx)
  • Data Centers
  • Telecommunication Networks
  • Security Survelliance
  • Process Automation & Control Systems
  • Power Systems & Controls
DescriptionPart No.
Unisol 96 Port 6U Sliding Rack Mount Fiber Optic Patch Panel/LIUUCPL-SLIDE-96 PRM-6UPP
Unisol 192 Port 6U Sliding Rack Mount Fiber Optic Patch Panel/LIUUCPL-SLIDE-192 PRM-6UPP
Unisol Adapter panel 1 x 192 SC SM SimplexUCPL-SCSM192PSPX
Unisol Adapter panel 1 x 192 SC MM SimplexUCPL-SCMM192PSPX
Unisol Adapter panel 1 x 96 SC SM DuplexUCPL-FCSM192PDPX
Unisol Adapter panel 1 x 96 SC MM DuplexUCPL-FCMM192PDPX
Unisol Adapter panel 1 x 96 LC SM DuplexUCPL-FCSM192PDPX
Unisol Adapter panel 1 x 96 LC MM DuplexUCPL-FCMM192PDPX
Unisol Adapter panel 1 x 192 ST SM SimplexUCPL-FCSM192PSPX
Unisol Adapter panel 1 x 192 ST MM SimplexUCPL-FCSM192PSPX
Unisol Adapter panel 1 x 192 FC SM SimplexUCPL-FCMM192PSPX
Unisol Adapter panel 1 x 192 FC MM SimplexUCPL-FCSM192PSPX
