4/6/8/12 port Wall Mount LIU

Get Started

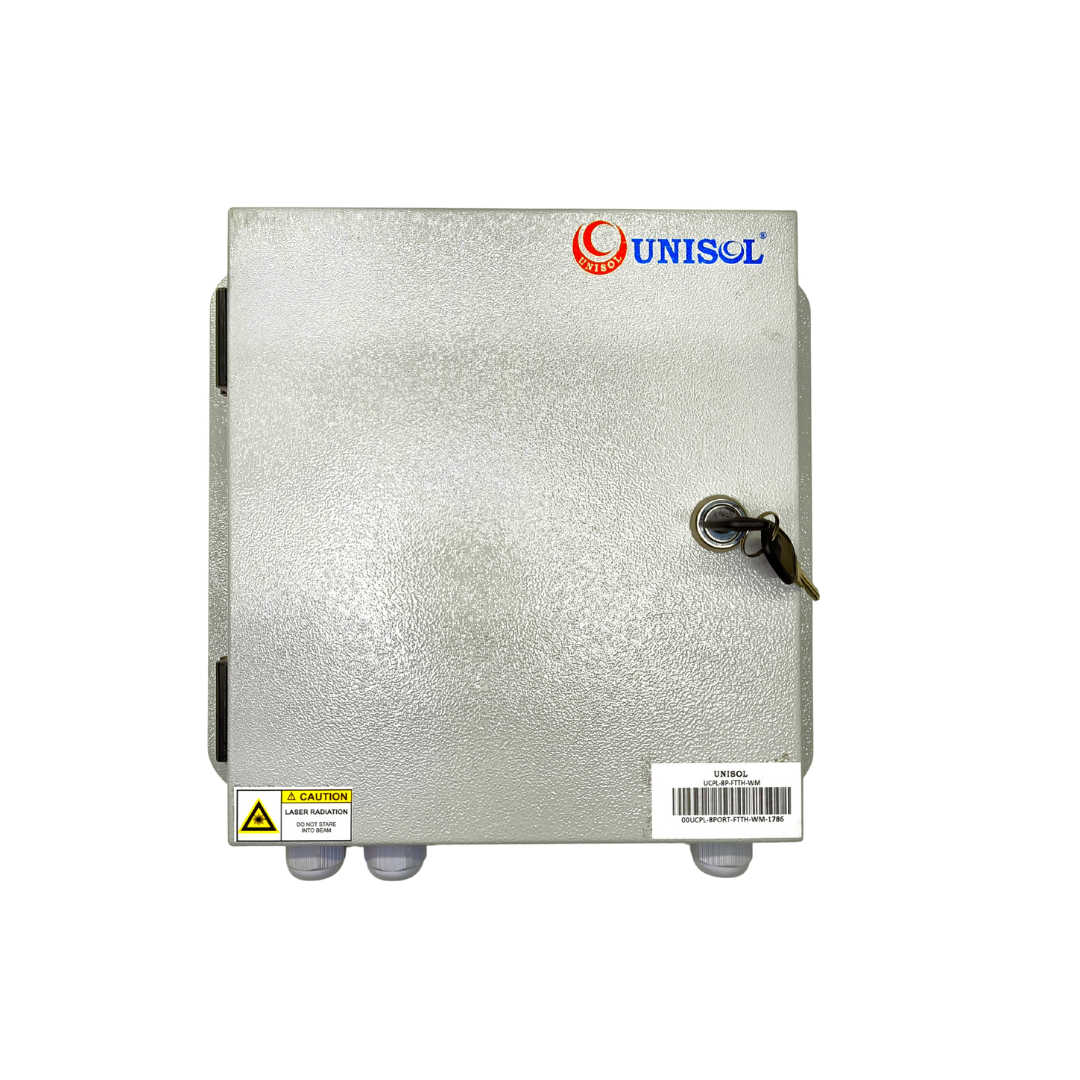

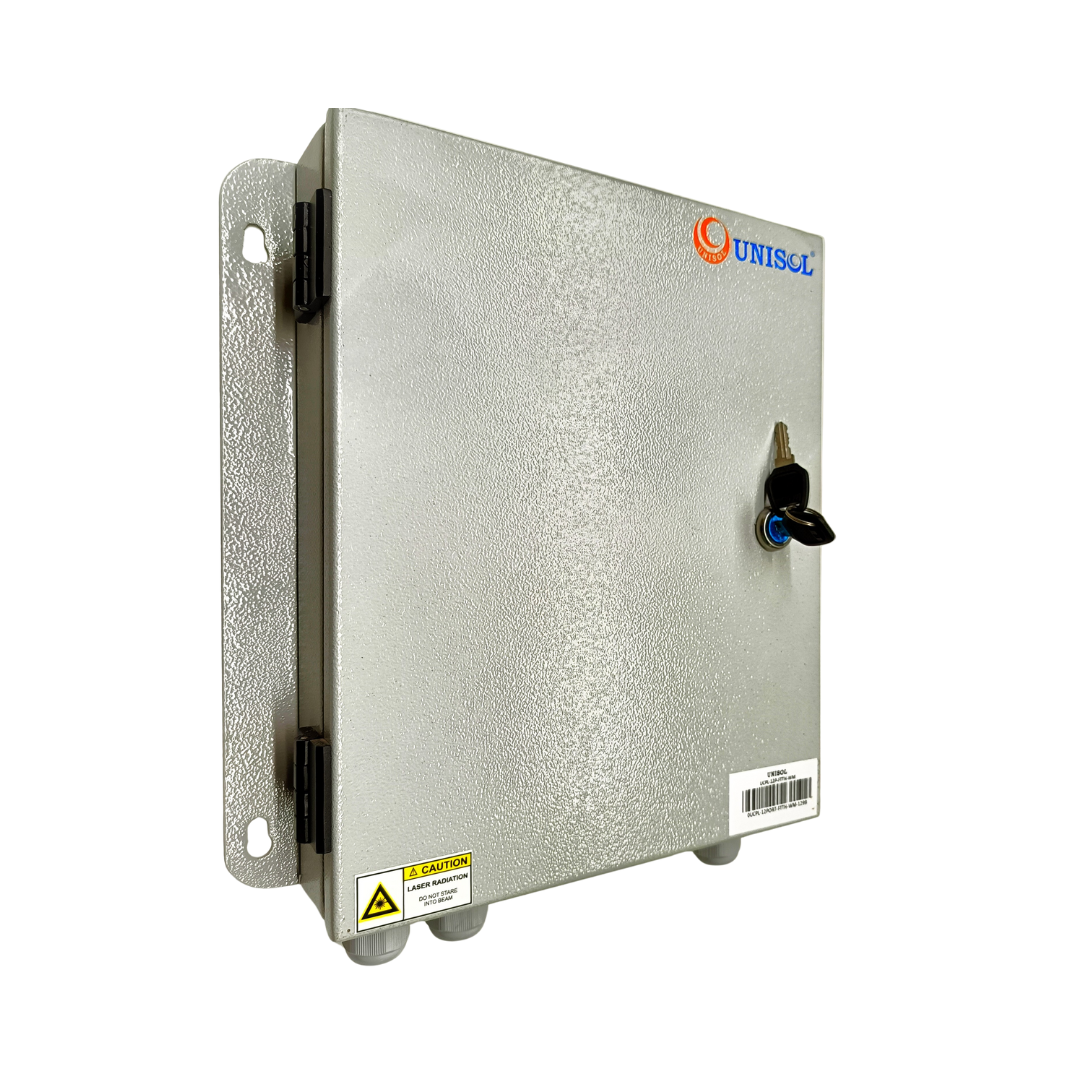

Wall Mount Patch Panel

4/6/8/12 port Wall Mount Termination Box

SPECIFICATIONS:

Material : Mild Steel/Aluminum with 7 Tank Process powder coating.
Dimensions : 230*260*60 mm (W*H*D)
Color : RAL 7035/Black
Weight : 1.8–2 kg
Splice Holder : FR grade ABC.
Splice Holder Dimension : 180*110*15 mm (L*W*H)
Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
Fiber components standard : Telecordia GR 326
Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
Plug/Unplug durability : 1000 times

Datasheet

DESCRIPTION

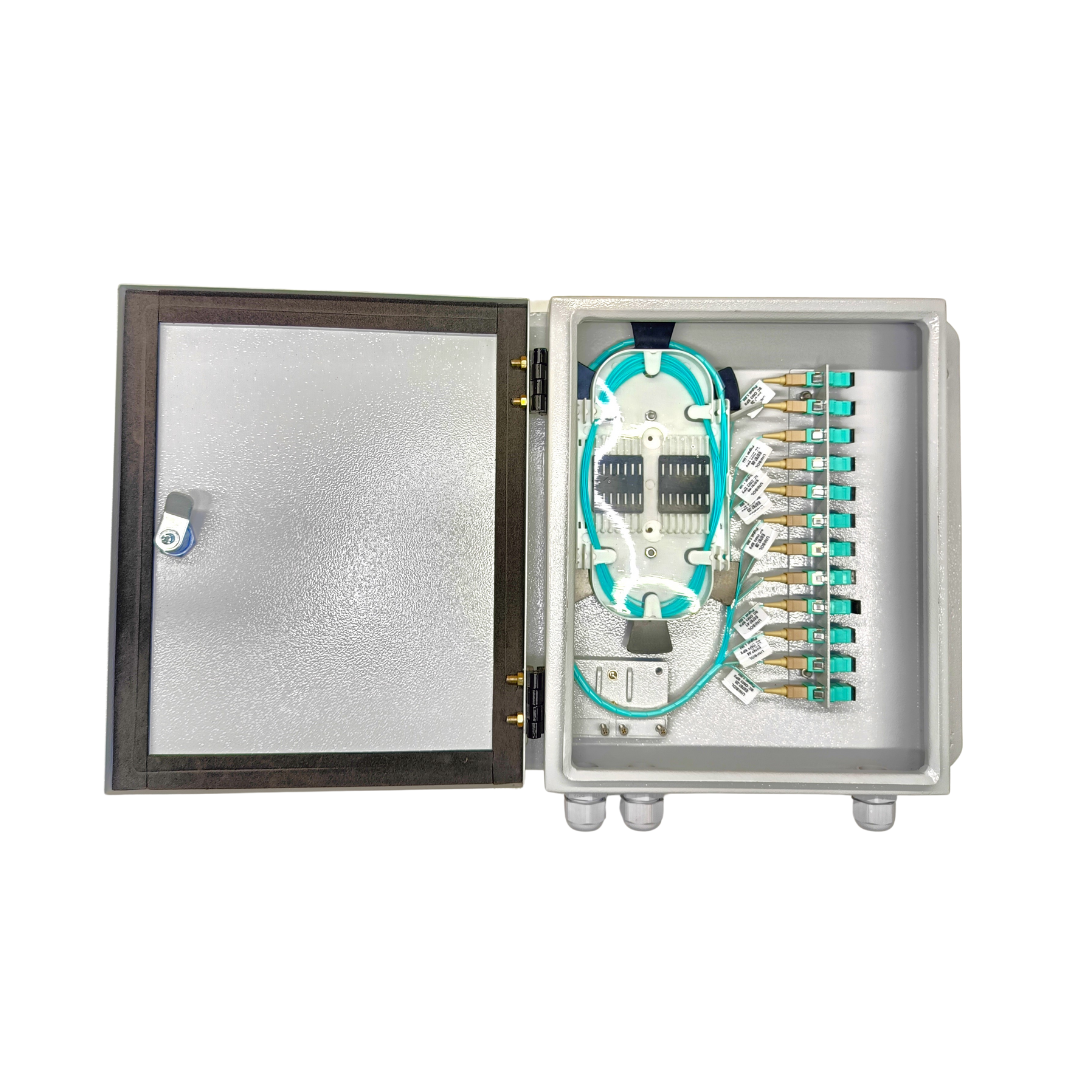

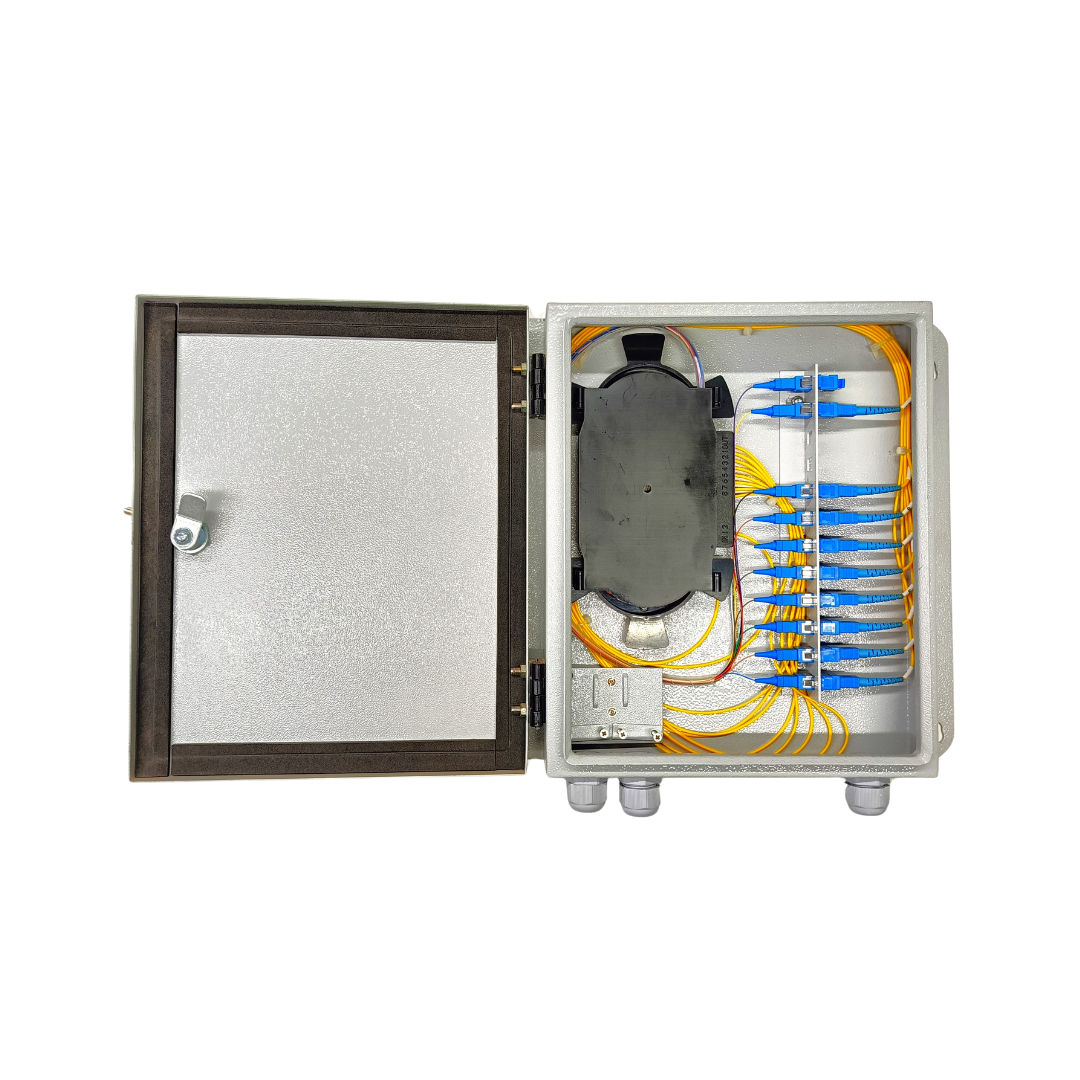

UNISOL Wall Mount Fiber Optic Patch Panel combines three primary functions: Fiber splicing, cable winding and storage, and interface management. This IP55 certified wall mount patch panel offers features including resistance to dust, humidity, rain, moisture and vandalism. It provides 8 ports for connection and supports cross-connect and interconnect capabilities for splicing and terminating outdoor cables and FTTH drop cables in a Fiber access network. Our FTTH series Wall Mount Fiber Termination Box is intended for rapid repair and storage of fiber terminations. It is also used for FTTx indoor and outdoor applications and medium-sized multi-dwelling units (MDUs). It offers a comprehensive selection of fiber management systems (FMS) that are completely compatible with industry grade fiber adapters. It is an excellent design for networking in buildings and on campuses.

FEATURES

Single door hinged type design
High quality Mild Steel Body
Mechanical seal
IP 55 Rated
100% tested for Mechanical and optical characteristics
Installation: Outdoor and Indoor Application
Mechanical seal for Excellent seal performance and reusable

APPLICATION

ORDER INFORMATION

Description	Part No.
Unisol IP 55 Rated Wall Mount Fiber Optic Patch Panel/LIU	UCPL-WM-8P-PP
Unisol Adapter panel 1×12 SC SM Simplex	UCPL-WM-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM Simplex	UCPL-WM-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM Duplex	UCPL-WM-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM Duplex	UCPL-WM-SCMM12PDPX
Unisol Adapter panel 1×12 ST SM Simplex	UCPL-WM-STSM12PSPX
Unisol Adapter panel 1×12 ST MM Simplex	UCPL-WM-STMM12PSPX
Unisol Adapter panel 1×12 LC SM Duplex	UCPL-WM-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM Duplex	UCPL-WM-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM Simplex	UCPL-WM-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM Simplex	UCPL-LCSM24PDPX
