96 Port Rack Mount Patch Panel / LIU

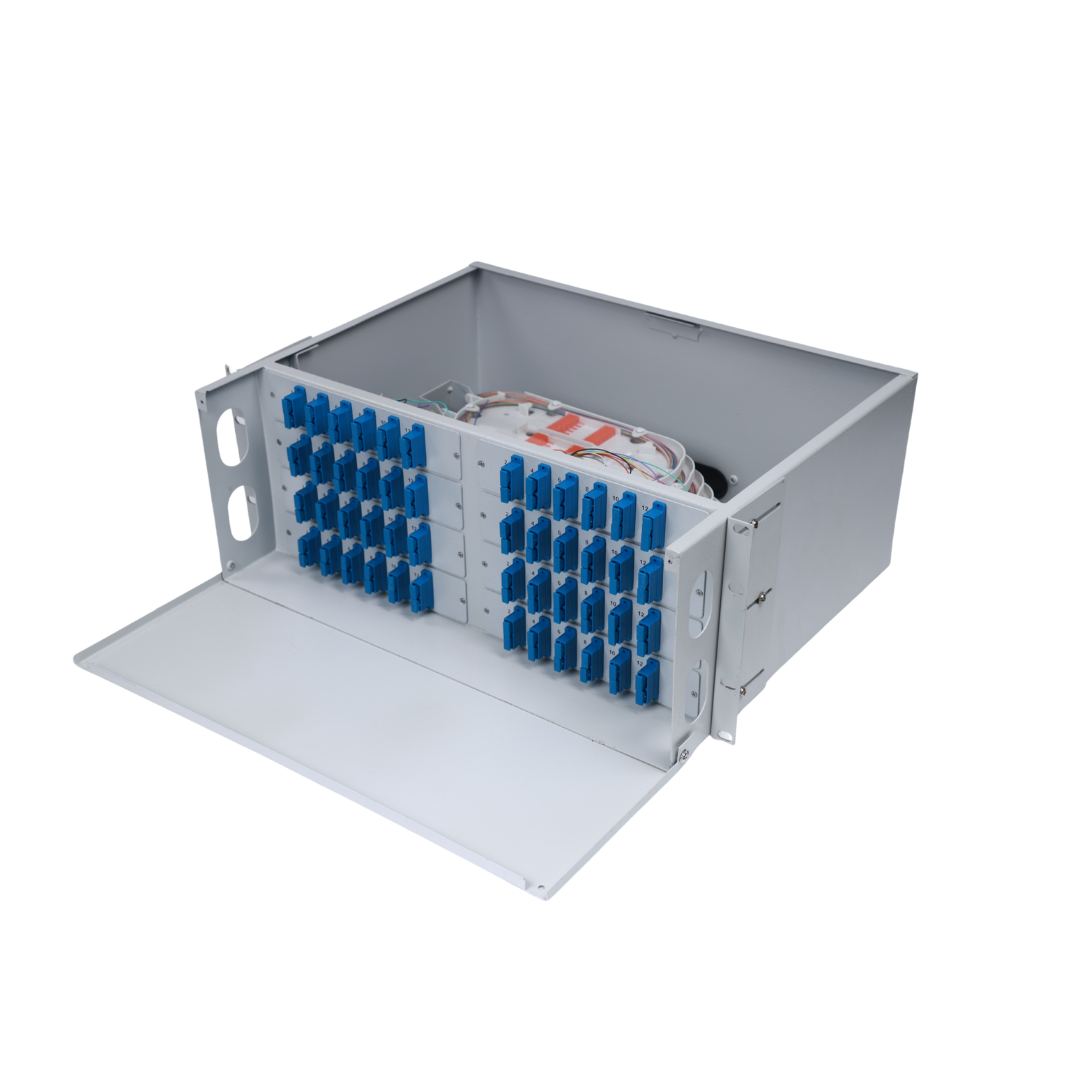

Unisol 4U 96 Port Rack Mount Optical Distribution Frame (ODF) is a high capacity, professional grade fiber termination solution designed for large scale fiber optic networks that demand superior organization, durability, and scalability. Engineered for performance in telecom, data center, enterprise, and ISP environments, this 4U rack mountable ODF Unit offers efficient and protected management of up to 96 fiber optic connections in a single unit.

With rising bandwidth demands and growing fiber deployments across industries, proper management of fiber infrastructure is essential. The Unisol 4U 96 Port ODF is the ideal solution for central offices, colocation facilities, metropolitan area networks (MANs), and FTTH deployments, where structured cabling, quick access, and long-term reliability are critical.

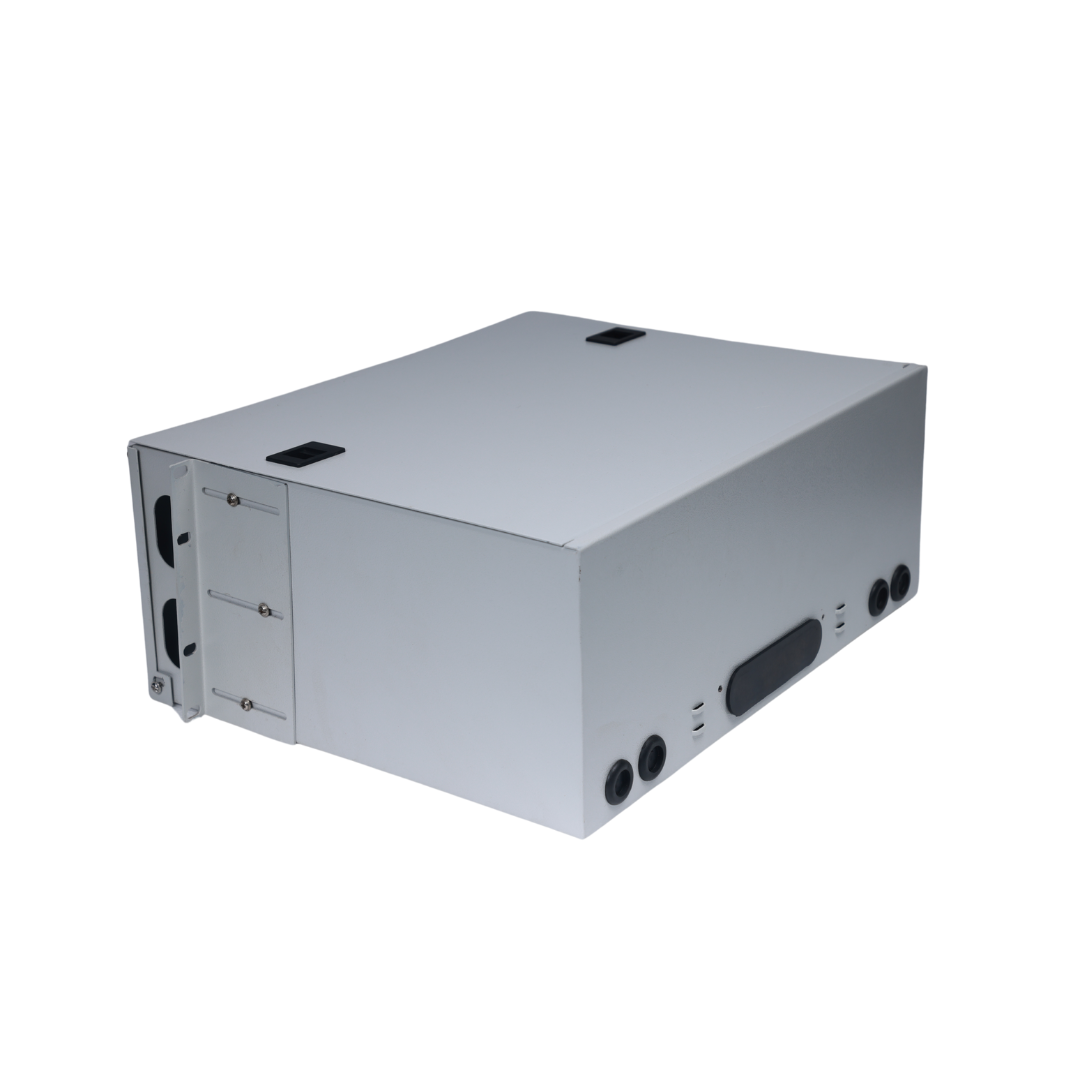

Constructed from heavy duty powder coated mild steel, the Unisol 96 Port Optical Distribution Frame offers superior mechanical strength and environmental resistance. The powder coating not only adds a layer of protection against corrosion and scratches but also gives the unit a clean, professional look that suits modern data environments.

Its rigid chassis design ensures stability even when fully populated, while the steel body provides durability to withstand frequent patching, maintenance, and cable handling. Whether deployed in controlled server rooms or semi industrial installations, the ODF Unit maintains consistent performance under diverse operating conditions.

The Unisol 4U Optical Distribution Frame (ODF) is designed to mount directly into any standard 19 inch network rack, making it compatible with virtually all network cabinets and networking enclosures. Its 4U height offers a balance between high port density and accessibility, allowing technicians to manage a large number of fiber links without compromising space or usability.

Pre drilled mounting points and included rack screws simplify the installation process, while its compact front facing layout ensures easy cable routing and connectivity management even in densely packed network racks.

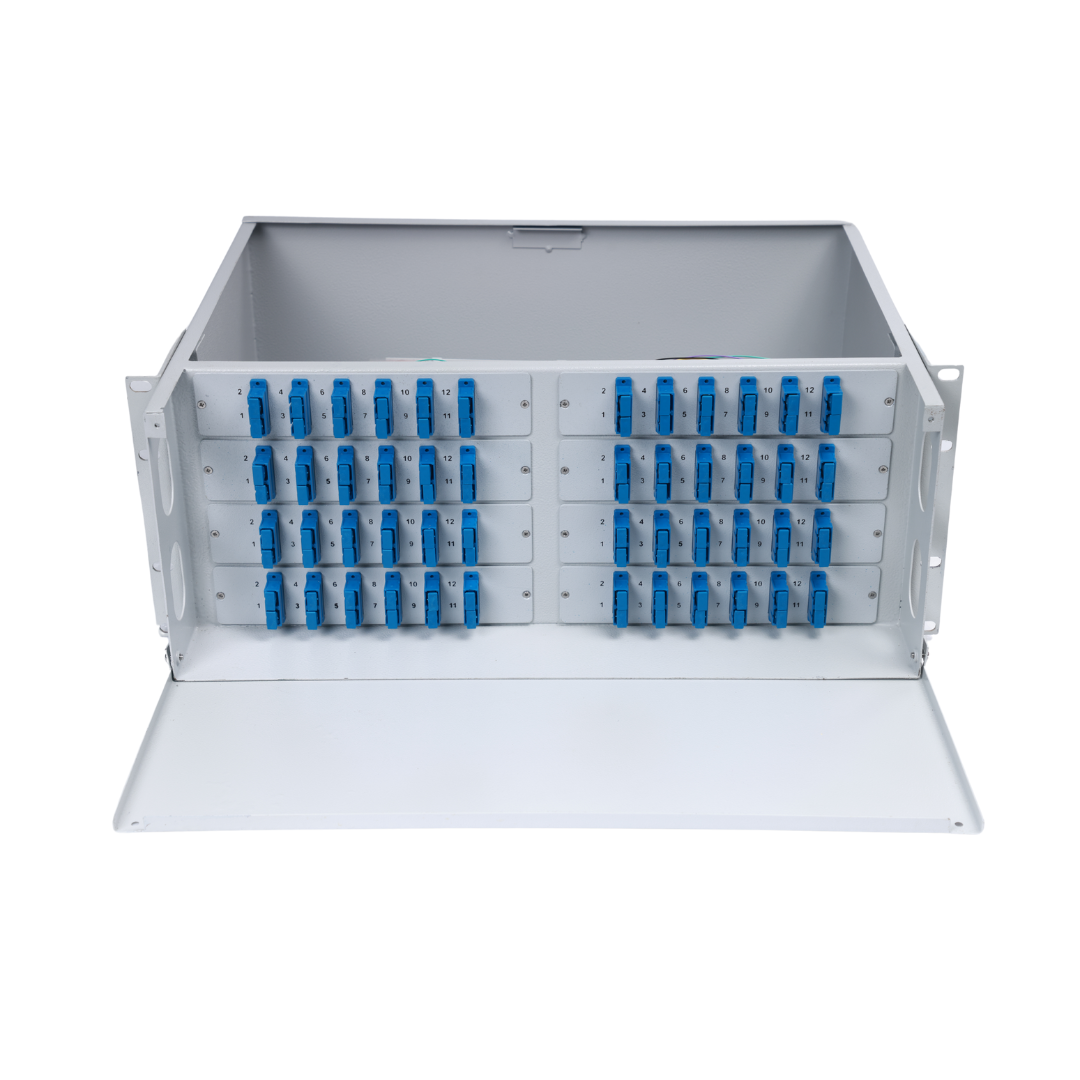

The hallmark of this optical distribution frame is its ability to handle up to 96 fiber optic connections in a structured and organized format. The ODF supports various types of fiber optic adapters including SC, LC, ST, and FC, in both singlemode and multimode configurations.

For LC duplex adapters, the frame can effectively manage up to 96 fiber cores, while SC simplex and duplex adapters support 96 connections as well.

The ODF features a modular front panel that supports removable adapter plates, allowing quick reconfiguration and upgrades without full panel replacement. Network engineers can swap, expand, or change adapter types easily, making this ODF a future ready solution for growing infrastructure.

The patch panel also supports staged installations, where only a subset of fiber connections are initially deployed, and more are added as demand increases, helping reduce upfront costs and streamline scaling.

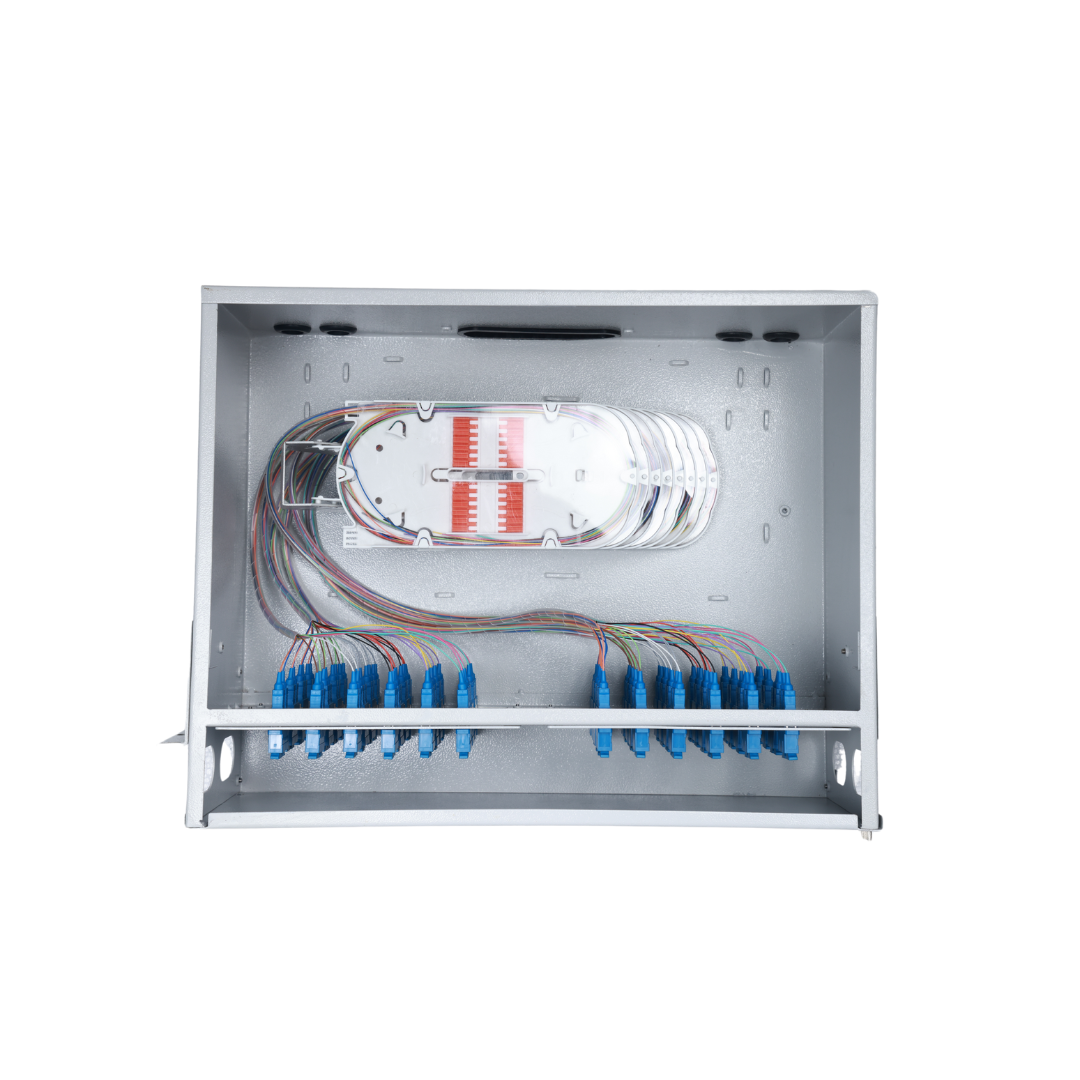

Inside the Unisol 4U Optical Distribution Frame, there’s ample space and features for fusion splicing, pigtail termination, and buffer tube management. Built in cable routing guides, strain relief brackets, and bend radius control points ensure that all fiber pathways remain secure and compliant with industry standards. These features help prevent signal loss, physical stress, and accidental damage during installation or service.

Each of the 96 ports can be clearly labeled using front facing designation strips, supporting better port identification and faster troubleshooting. This helps maintain structured cabling practices and minimizes the risk of mispatching or connection confusion.

Whether you’re working in a large central office or a medium sized enterprise network, the Unisol 4U optical distribution frame can be deployed quickly and scaled efficiently.

The Unisol 4U Rack Mount Optical Distribution Frame is built to meet or exceed industry standards for optical fiber management. Each unit is subject to rigorous quality control checks, ensuring consistent performance and field reliability.

This 96 Port Rack Mount Optical Distribution Frame stands out as a powerful tool for managing high density fiber networks in a clean, efficient, and organized way.

Whether you’re managing a growing FTTH deployment, upgrading a telecom backbone, or building out a hyperscale data center, this ODF provides the flexibility, reliability, and scalability your network demands.

With the Unisol 4U 96 Port ODF, you’re investing in a product that grows with your network. Its flexible layout, robust features, and high-capacity design ensure your fiber infrastructure is ready for whatever comes next.
