Fiber Patch Cord

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

Fiber Optic Patch Cord

SPECIFICATIONS:

Connector Type: SC, LC, FC, ST, E2000, MTRJ, SMA, DIN, MPO among others
Fiber Core Diameter: 9/125 μm (SM) , 62.5/125 μm (OM1), 50/125 μm (OM2, OM3 & OM4)
Return Loss (SM only): ≥50 dB (UPC), ≥ 60 dB (APC)
Insertion Loss: ≤ 0.3 dB max
Operating Temperature: -20 to +70 degree Celsius
Durability: 500 matings
Length: Standard / Customizable

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

Unisol fiber patch cords are essential for ensuring seamless connectivity within networks. These high-quality patch cords come factory-connectorized and machine-polished, guaranteeing both ease of use and reliable performance. Designed for data communication and telecommunication, the connectors in these assemblies meet industry standards, ensuring compatibility and optimal performance.

Unisol also offers customized patch cables tailored to specific needs. Available in Singlemode and Multimode versions, each cord features a Zirconia ceramic ferrule with a pre-polished PC, UPC, or APC profile. These end-face types allow for quicker polishing, reduced back reflection, and low optical loss, while ensuring repeatability and high-quality performance.

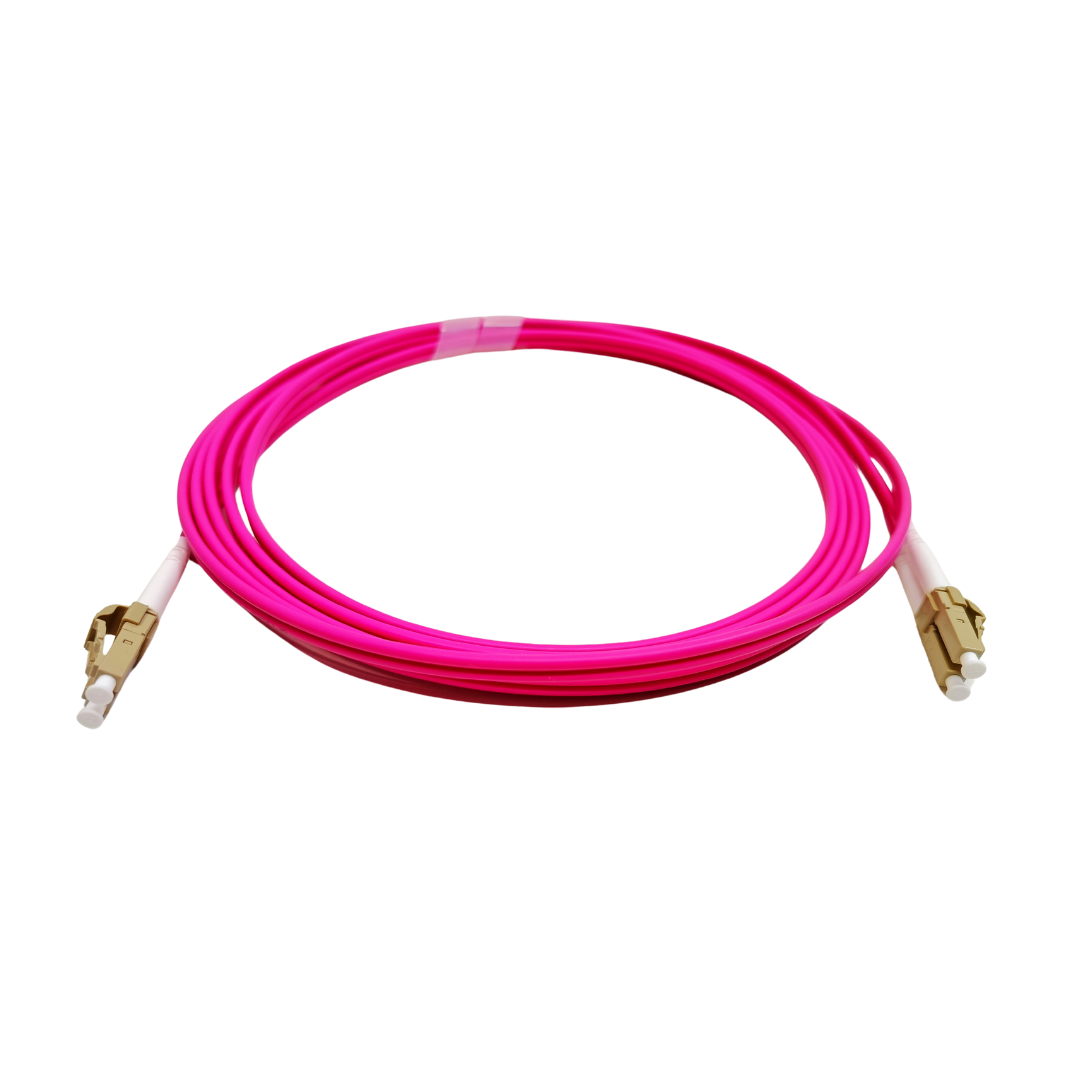

The optical patch cords are available in both simplex and duplex configurations, with low insertion loss, and come in a range of multimode (OM1, OM2, OM3, OM4) and single-mode (OS1, OS2) variants. The fiber optic patch cords are terminated with high-performance connectors, including SC, LC, ST, FC, MTRJ, and E2000, in both simplex and duplex options.

● Available in Singlemode (OS1 and OS2) and Multimode (OM1, OM2, OM3, OM4, and OM5) in Simplex and Duplex configurations.

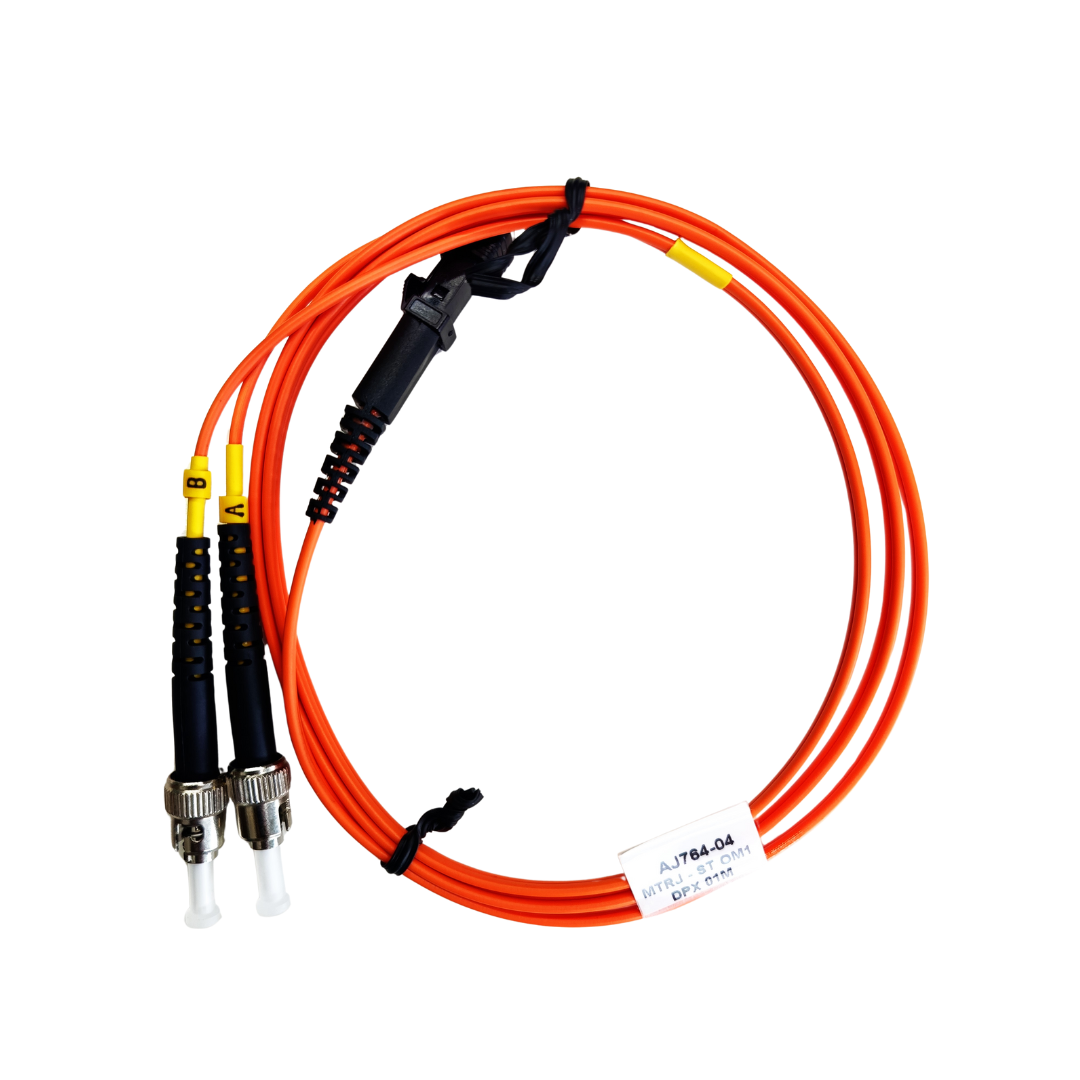

● Available in a wide range of connectors like SC, LC, FC, ST, MTRJ, and E-2000 among others.
● Adopts high precision ceramic ferrule with good concentricity
● Good geometrical characteristics of apex offset & radius of curvature & fiber height
● Compact & strong crimping offers exceptional tensile strength in cable assemblies
● 100% inspected for optical characteristics & fiber end face finish
● Low insertion loss & return loss, clean and scratch-free end faces
● Good performance endurance under changing circumstances
● Patchcords are factory terminated and 100% tested for performance.
● Pull proof UPC or APC type connectors to prevent disconnect.
● Low smoke Zero Halogen (LSZH) rated jacket to reduce toxic/corrosive gases.

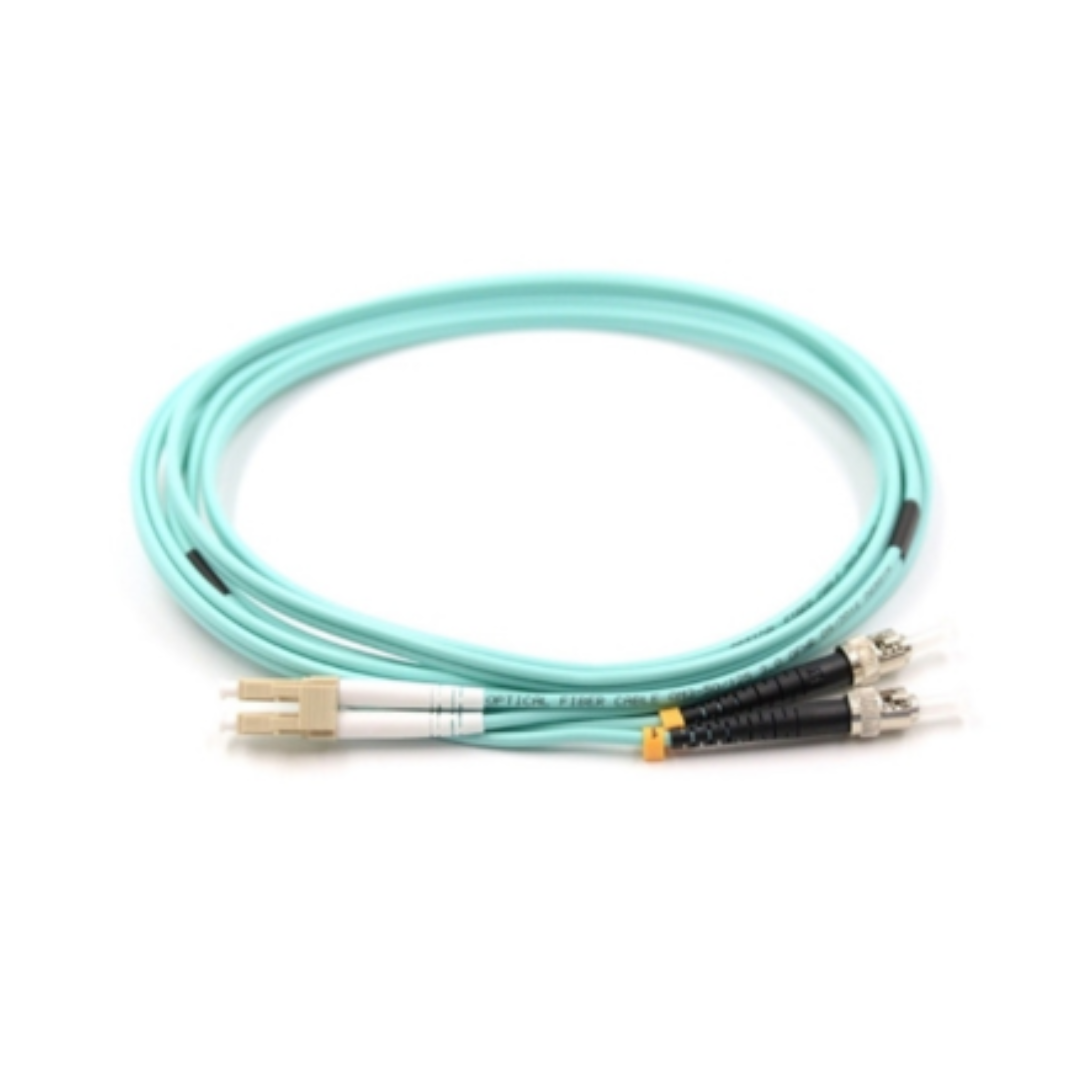

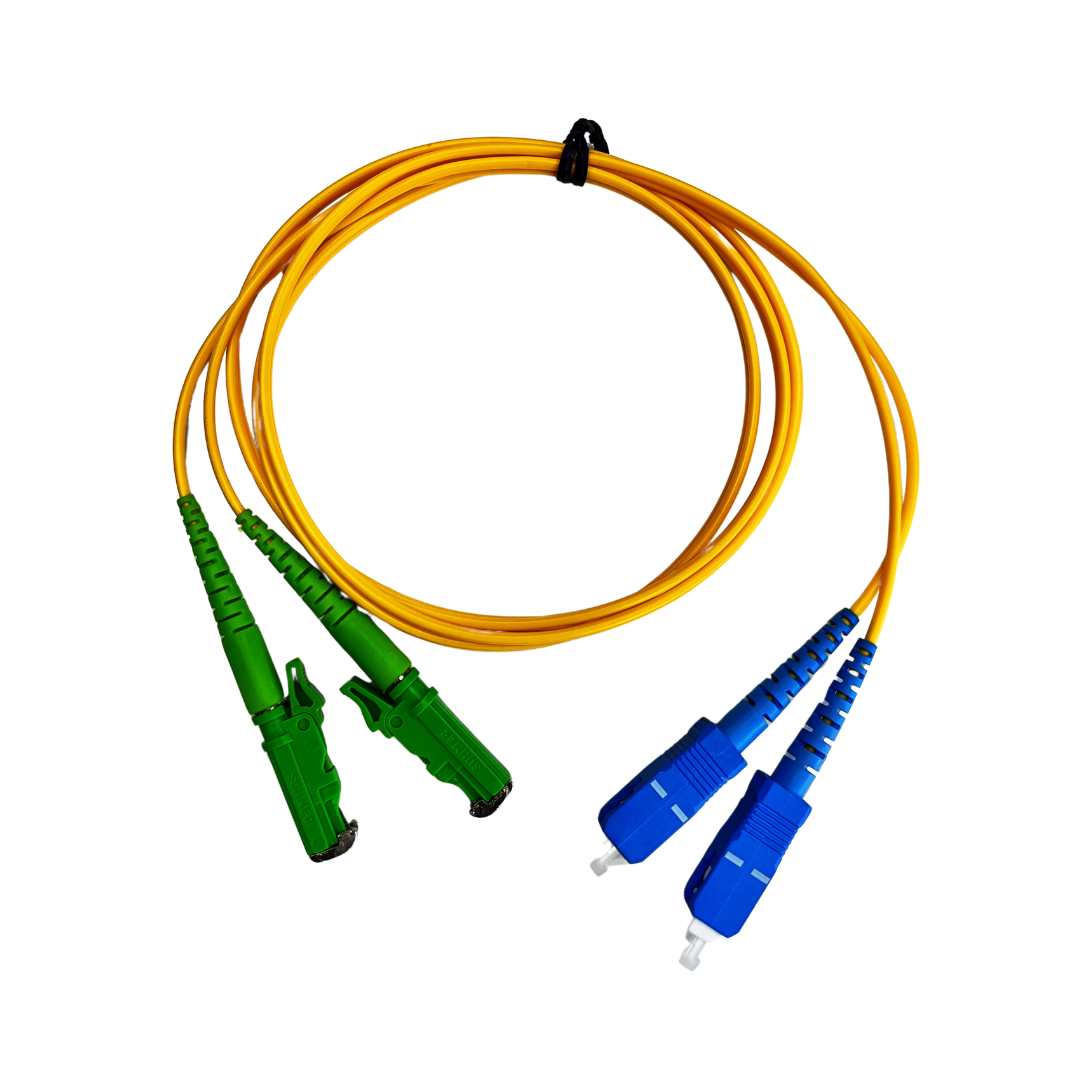

● Available in Hybrid Patchcords with different connectors at both ends.

● Data Centers
● Local Area Networks
● Wide Area Networks
● Telecommunication Networks
● Audio/Visual Systems
● Security Surveillance Systems
● Industrial Automation
● FTTx System
● CATV Networks
● Building and Campus Networks

DESCRIPTION	PART NO.
Connector type AA & BB	Indicate type of connector AA & BB:


	MTRJ UPC Connector
	MT – MTRJ Female
	MTM – MTRJ Male

	E2 – E2000 UPC Connector
	E2A – E2000 APC Connector

	LC – LC UPC Connector
	LCA – LC APC Connector

	SC – SC UPC Connector
	SCA – SC APC Connector

	ST – ST UPC Connector

	FC – FC UPC Connector
	FCA – FC APC Connector

	MU – MU UPC Connector

	SMA – SMA UPC Connector
Fiber Type	Indicate Fiber type of the patch cord
Fiber Type	Singlemode 9/125μm (G.652D) Multimode 62.5/125μm (OM1) Singlemode 9/125μm (G.655) Multimode 50/125μm (OM2) Singlemode 9/125μm (G.657A1) Multimode 50/125μm (OM3) Singlemode 9/125μm (G.657A2) Multimode 50/125μm (OM4)
Cable Type	Indicate Fiber patch cable type
	SPX – Simplex Type
	DPX – Duplex Type
Length	Indicate Length of the patch cord
Length	1 meter to 150 meter
Jacket Type	Indicate the patch cable jacket material
	LSZH
	PVC

REMARKS

Product Part No. Example:

UCPL-PCBLE-SMSC/UPC-SC/APC-DPX05M – Unisol Single Mode 9/125 SC/UPC-SC/APC Duplex Patch Cable 05M length

Singlemode patchcord is not available for SMA connector.

APC connector is available in both Singlemode and Multimode types.

APC connector is not available for ST, MTRJ, MU and SMA types.

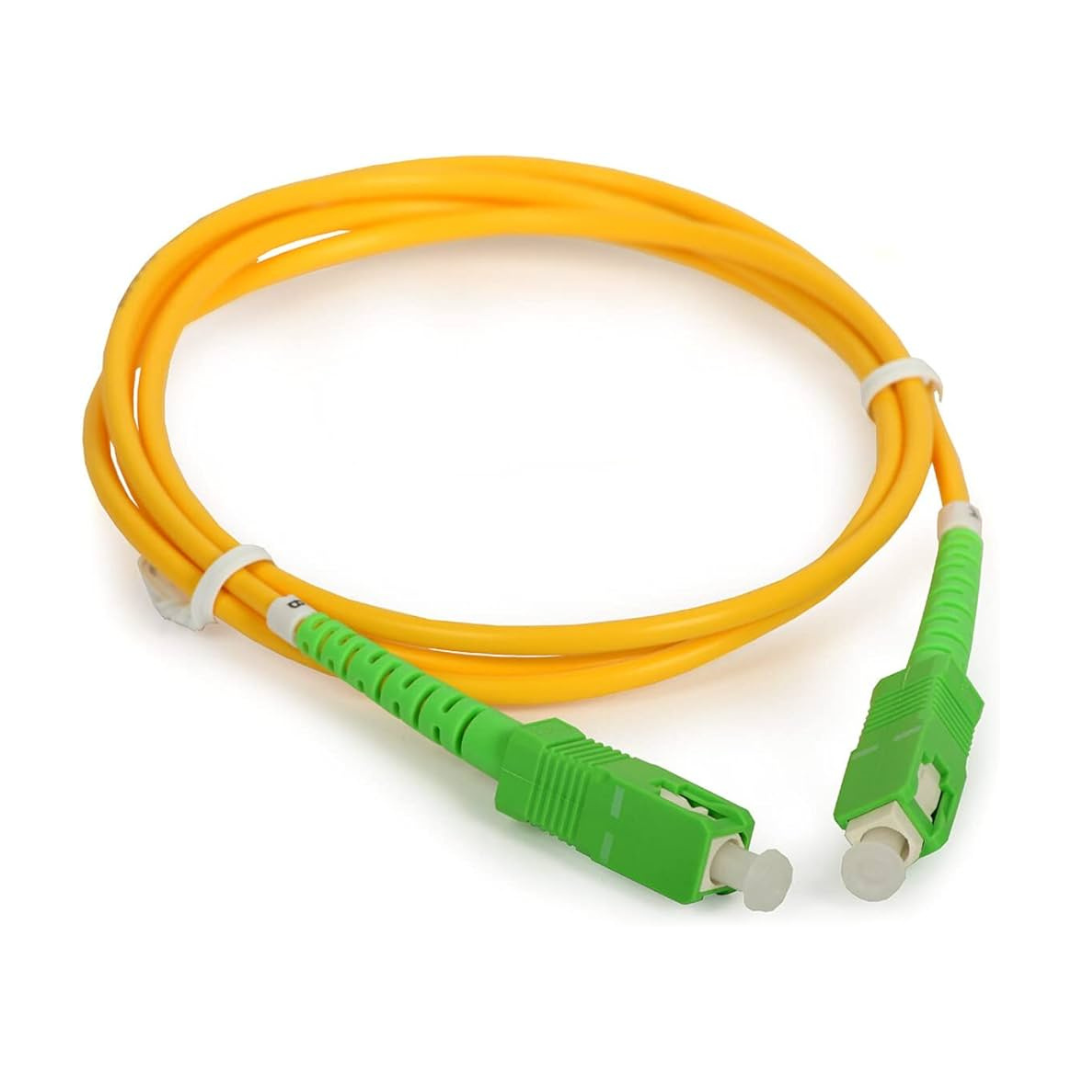

APC connector and boot are green in colour.
