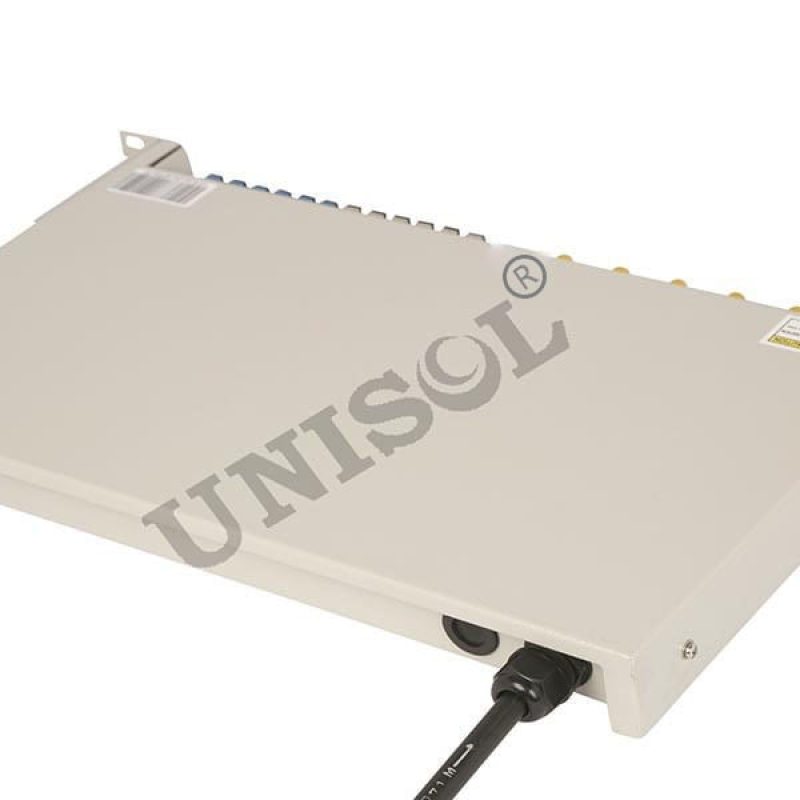

12 Port Sliding Rack Mount Patch Panel/LIU

SPECIFICATIONS:

Material : CRCA/Aluminum with 7 Tank Process powder coating.
Dimensions : 44*440*320 mm (H*W*D)
Color : RAL 7035/Black
Spool : FR grade PVC.
Cable grommet : FR grade Nylon
Splice Holder : FR grade ABC.
Splice Holder Dimension : 220*110*10 mm (L*W*H)
Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
Fiber components standard : Telecordia GR 326
Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
Plug/Unplug durability : 1000 times

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

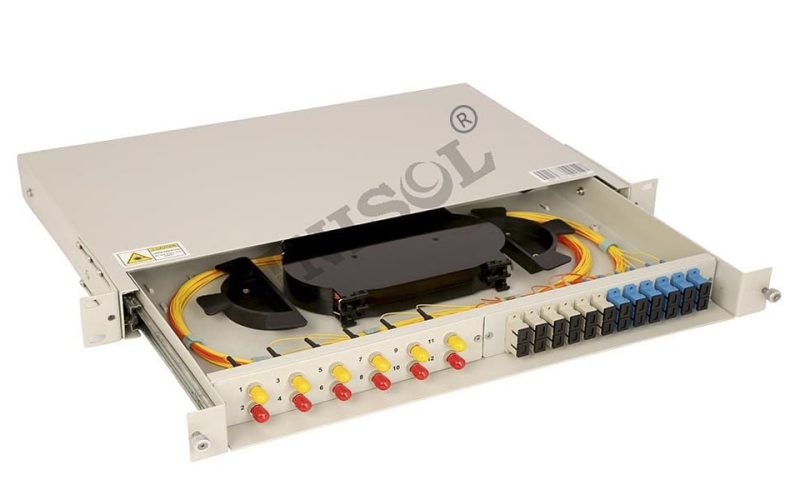

UNISOL 12 Port Sliding Rack Mount Fiber Patch Panel is designed to be installed in a 19″ rack frame. It has a front door locking system and a single sliding tray system for simple front panel slide out access for internal fiber management. The 1U slide-out tray holds 12 ports with two adapter panels. These Fiber Optic LIUs can accommodate many different adapters, including ST, SC, FC, and LC. When fully equipped with SC Duplex or LC Duplex adapters, it can support up to 48 ports if there is a lack of rack space. The splice tray protects the splice joint and allows for an extremely small bend radius and enhance strain-relief control thanks to its design. The maximum number of cable entries that the Fiber Enclosure can support is six. It simplifies the splicing and termination of optical fiber cables (OFC) and pigtails in Fiber access networks by enabling cross-connect and interconnection. It is built with unique features that make fiber optic communication installation and troubleshooting faster, easier, and more cost effective.

MS/Aluminum housing with seven Tank process powder coating.
Suitable for 19’’Rack mount Applications
Replaceable panel for SC/ST/LC/FC type couplers.
Can manage adapter panel for maximum 48 SC/48 LC in 1U size
Capable of storing up to three meters of 900 micron tight buffered fiber cable
Allow maximum six cables entry.
Patch or fusion splice field termination standard.
High impact resistance splice tray & cable spool for fiber & pigtail routing
Accessory kit includes mounting ear, cable gland, cable ties and screws

Indoor Premise Networks
Central offices (FTTx)
Data Centers
Telecommunication Networks
Security Survelliance
Process Automation & Control Systems
Power Systems & Controls

Description	Part No.
Unisol 24 Port Rack Mount Fiber Optic Patch Panel/LIU	UCPL-STD-24PRM-PP
Unisol 48 Port Rack Mount Fiber Optic Patch Panel/LIU	UCPL-STD-48PRM-PP
Unisol Adapter panel 1×12 SC SM Simplex	UCPL-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM Simplex	UCPL-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM Duplex	UCPL-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM Duplex	UCPL-SCMM12PDPX
Unisol Adapter panel 1×12 SC SM Duplex	UCPL-SCSM24PDPX
Unisol Adapter panel 1×12 SC MM Duplex	UCPL-SCMM24PDPX
Unisol Adapter panel 1×12 ST SM Simplex	UCPL-STSM12PSPX
Unisol Adapter panel 1×12 ST MM Simplex	UCPL-STMM12PSPX
Unisol Adapter panel 1×12 LC SM Duplex	UCPL-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM Duplex	UCPL-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM Simplex	UCPL-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM Simplex	UCPL-FCMM12PSPX
