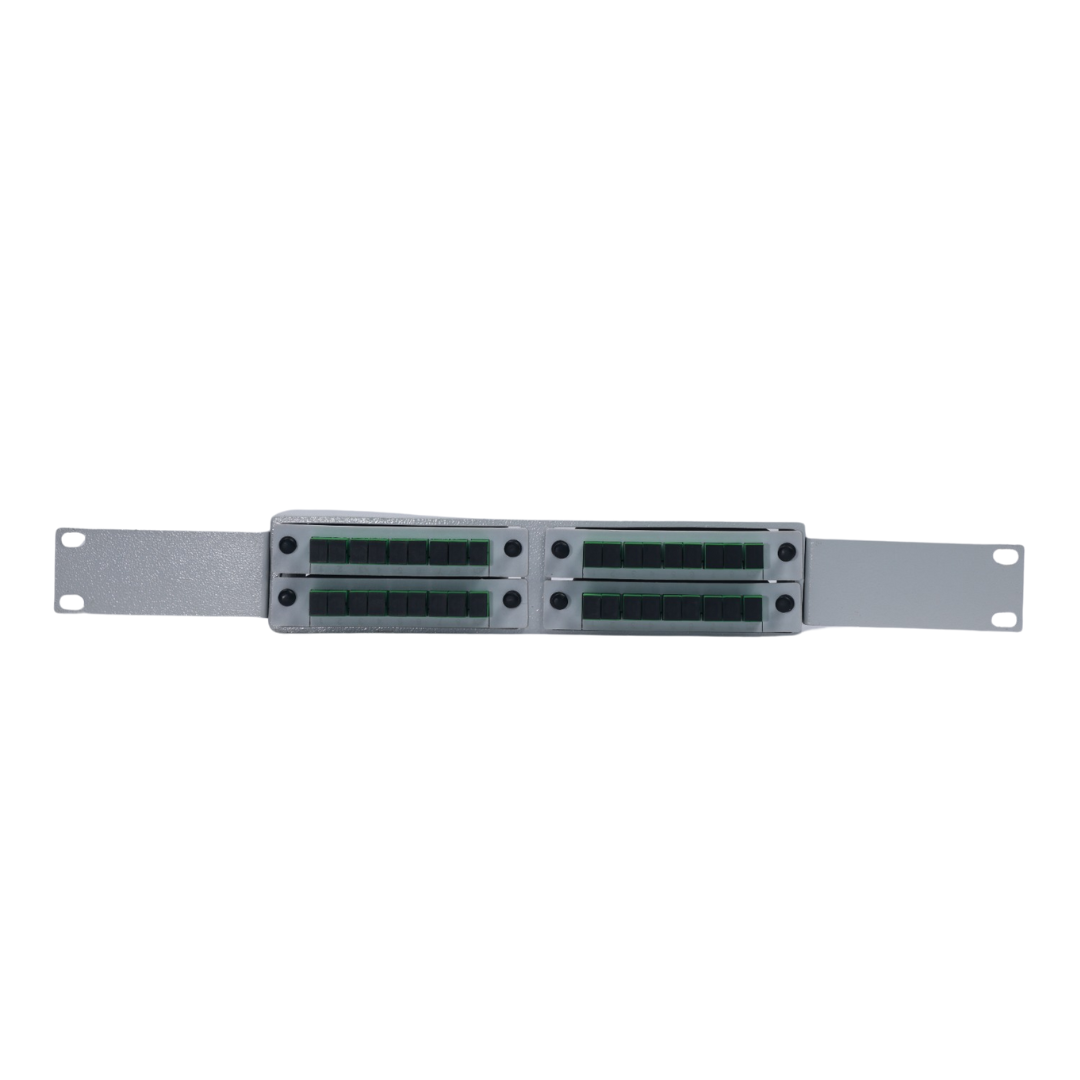

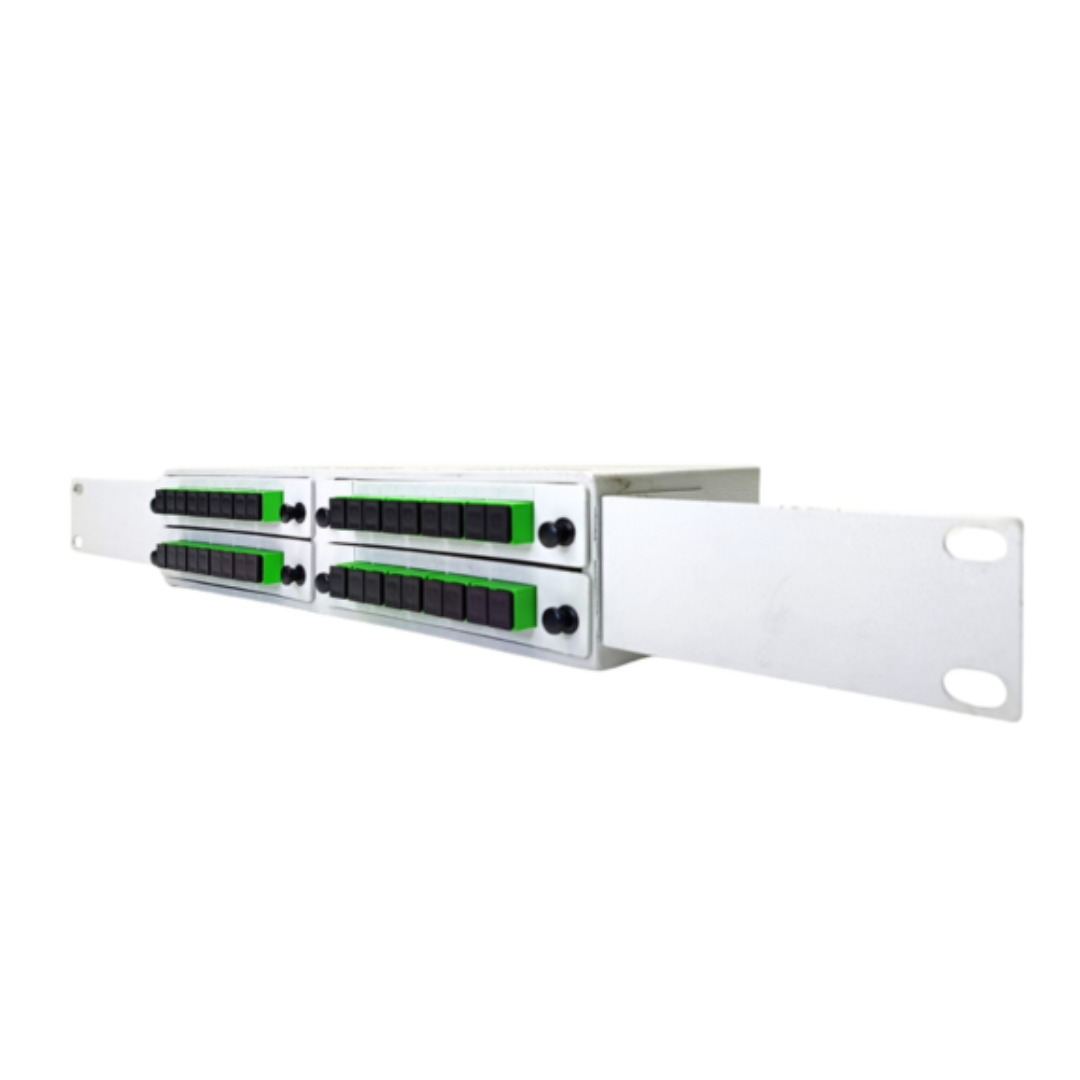

LGX Frame

Unisol LGX Frame is a premium modular fiber management solution designed for advanced telecom and data network environments. As a foundational component in structured cabling systems, the LGX frame supports a wide range of optical applications through its compatibility with LGX cassettes, LGX adapter panels, and LGX splitter modules. Engineered to optimize fiber routing, organization, and accessibility, the LGX frame provides reliable performance and scalability for network operators, ISPs, data centers, and enterprise IT infrastructures. Whether deployed as a rack mount LGX frame or used with a wall-mount LGX panel, this solution ensures clean, high-density cable organization and reduces operational complexity.

The LGX frame allows for seamless integration of LGX fiber optic modules, including LGX optical splitter cassettes, LGX SC adapter panels, and pre-loaded fiber adapter plates. With its standardized dimensions, it easily fits into a 19-inch telecom rack or cabinet, supporting multi-port configurations such as 1×8, 1×16, or 1×32 PLC splitter installations. Its flexibility makes it ideal for diverse applications, including PON (Passive Optical Network) architectures, metro Ethernet, CATV, and broadband fiber networks. Each LGX module slot is precisely engineered to hold optical components firmly, reducing insertion loss and ensuring consistent signal performance across the network.

Unisol’s LGX fiber distribution frame supports multiple fiber counts and connector types, including LC, SC, ST, FC, and MPO, offering excellent versatility. It functions effectively as a termination panel, allowing simple integration of fiber splicing, patching, and splitting all within one compact footprint. The LGX termination panel simplifies maintenance and upgrades by offering front access to fiber ports, making it easier for technicians to identify, manage, and troubleshoot connections without service disruptions.

Designed with durability in mind, the LGX fiber optic frame is built from high-quality cold-rolled steel or aluminum alloy and finished with a corrosion-resistant powder coating. It is capable of withstanding harsh environments, and its protective design keeps internal fiber components secure against physical and environmental damage. This durability makes it suitable for indoor central offices as well as outdoor telecom enclosures. Whether used for active fiber distribution or passive optical signal management, the LGX frame delivers long-lasting reliability.

In high-density networking environments, the LGX frame enables efficient space utilization. With up to 12 or more module slots in a 1U or 3U form factor, the LGX rack mount panel provides high port density without compromising cable accessibility. This makes it a preferred solution in scalable infrastructures like hyperscale data centers, edge computing sites, or multi-service provider facilities. Its modularity allows network administrators to swap or expand modules quickly, without interrupting live circuits—a major advantage in live environments.

The LGX module rack supports a wide array of cable types, including single-mode and multimode fibers, armored or unarmored cables, and ribbon or loose tube designs. Pre-terminated LGX patch panels and optical splitter modulescan be preloaded before deployment, significantly reducing on-site installation time and improving consistency. By integrating with fiber pigtail cassettes, the LGX frame minimizes field splicing while enhancing overall optical performance.

Cable management is made easy with integrated cable routing guides, bend radius protectors, and secure rear-entry points for trunk cables. Whether used as a central patch location or a cross-connect interface, the LGX adapter framehelps reduce clutter and improve airflow in high-density racks. For FTTH (Fiber-to-the-Home) and FTTx rollouts, the LGX frame is especially beneficial in access nodes and customer premises setups, enabling plug-and-play deployment of optical splitters and terminations.

Supporting backward and forward compatibility, the LGX frame offers investment protection and future scalability. It accommodates both legacy and next-gen fiber technologies, making it a smart choice for networks undergoing capacity upgrades. Available in variants like LGX fiber patch panel, LGX splice panel, and LGX distribution module, the solution can be tailored for specific application needs—from centralized splitting in GPON networks to edge deployments in 5G or IoT backhaul infrastructure.

In mission-critical environments, network reliability depends on the quality and manageability of fiber connections. The LGX fiber termination panel ensures low insertion loss, stable mechanical connections, and dust-resistant port interfaces. Every LGX module is tested to meet international standards, ensuring top-notch optical performance. For network planners and installers, the modular nature of the LGX chassis reduces installation errors, improves documentation practices, and accelerates time-to-service.

Unisol’s commitment to quality and performance is evident in the design and construction of its LGX enclosures, which have been widely adopted across telecom exchanges, colocation centers, corporate LAN backbones, and campus networks. As networks evolve to support greater bandwidth, higher density, and diverse applications, the LGX frame remains a critical component that enhances manageability, reliability, and optical integrity.

Whether you’re deploying new links or expanding existing ones, the LGX modular frame delivers a highly configurable, durable, and future-ready platform for fiber optic cable management. Its support for LGX-compatible panels, fiber patch cassettes, and PLC splitter trays makes it a cornerstone product for next-gen networks. With excellent mechanical design, superior optical alignment, and comprehensive cable management features, the Unisol LGX Frame helps ensure that your fiber infrastructure remains organized, efficient, and ready for whatever the future demands.
