MPO Fan Out Cable

The Unisol MPO breakout cable is a high-density, pre-terminated fiber solution designed to simplify multi-fiber connectivity in modern network environments. Built for performance and efficiency, this MPO breakout cable enables quick and organized distribution of optical signals from a single MPO connector to individual LC, SC, or other common connector types. Its design supports seamless integration into data centers, telecom systems, cloud computing hubs, and enterprise network infrastructures where speed, precision, and space optimization are essential.

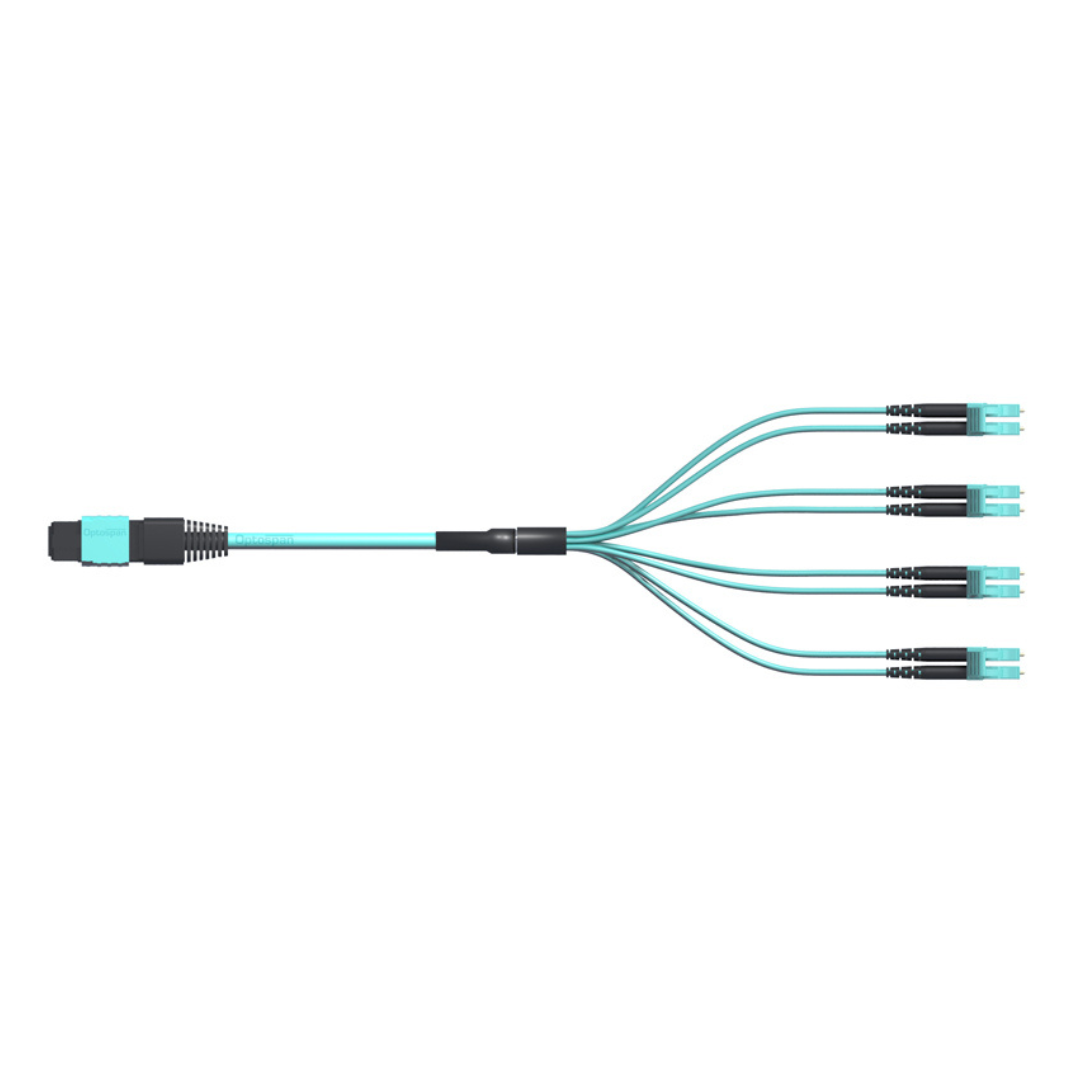

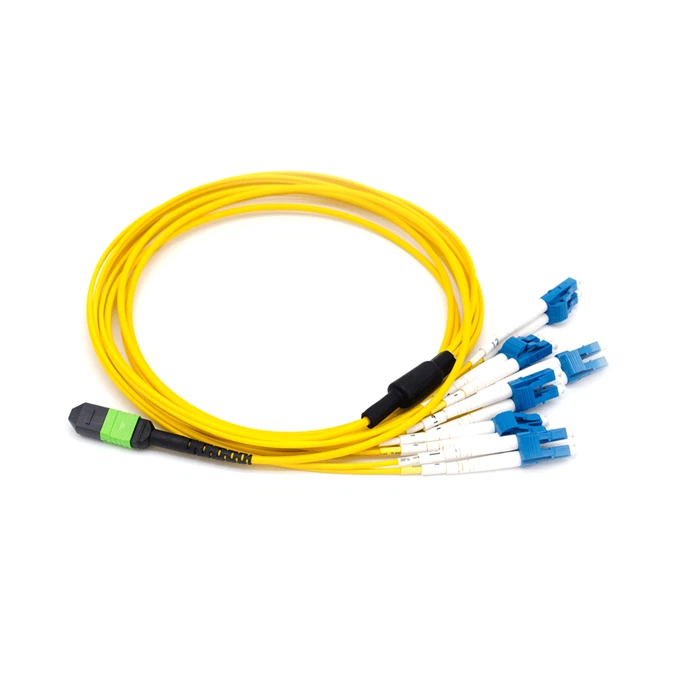

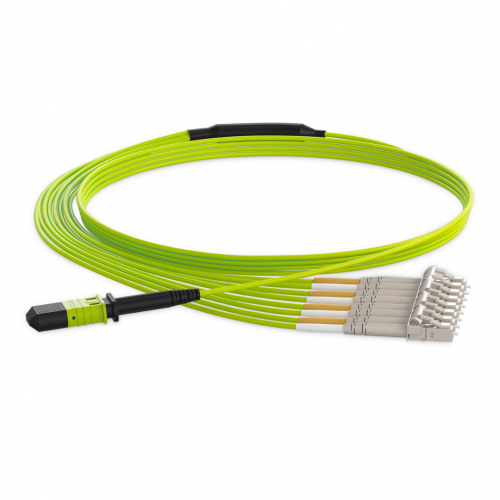

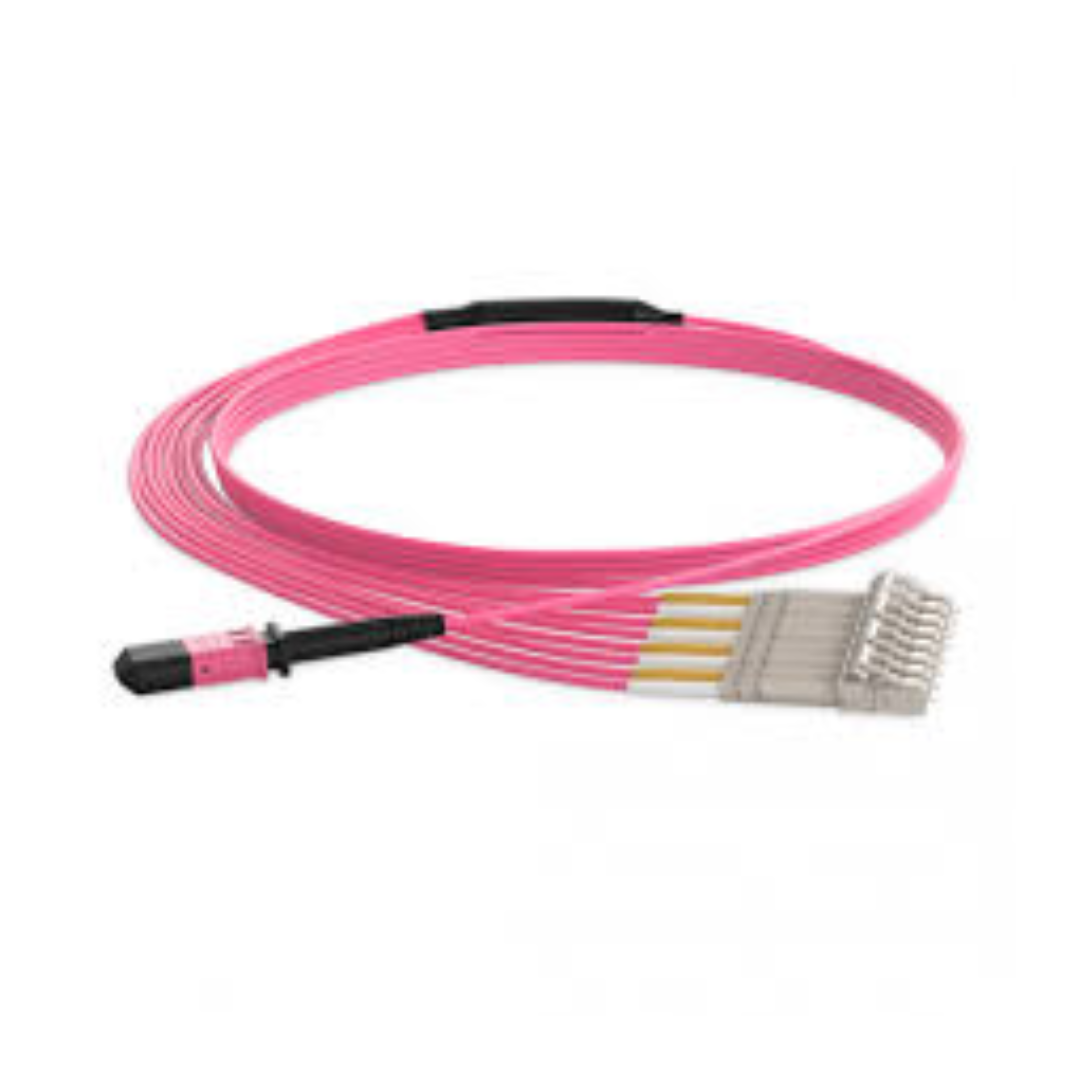

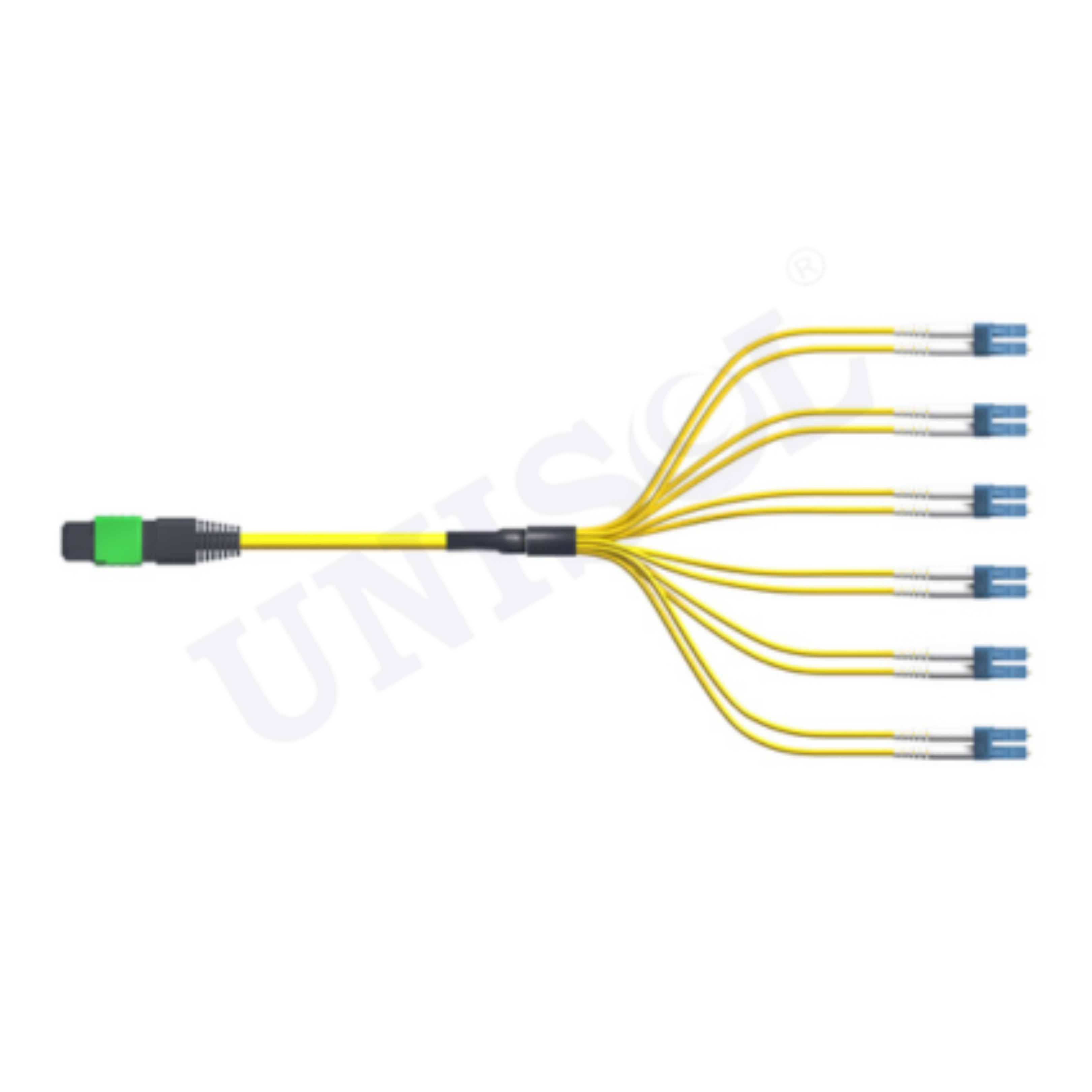

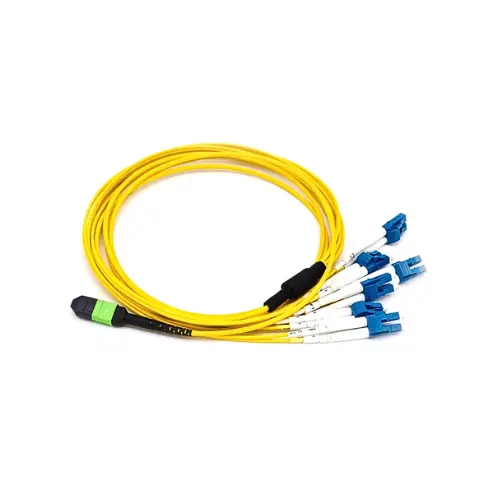

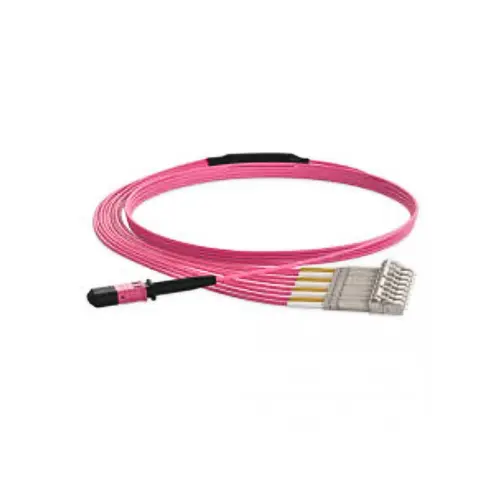

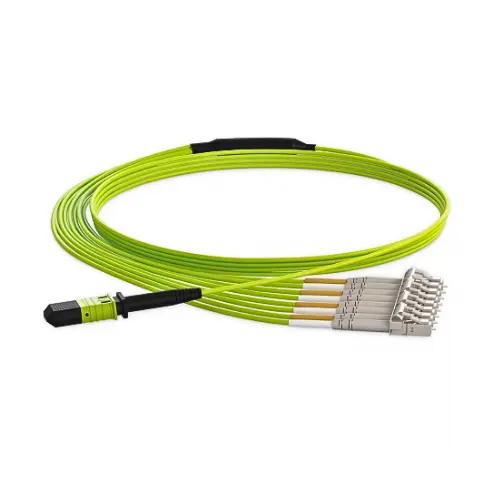

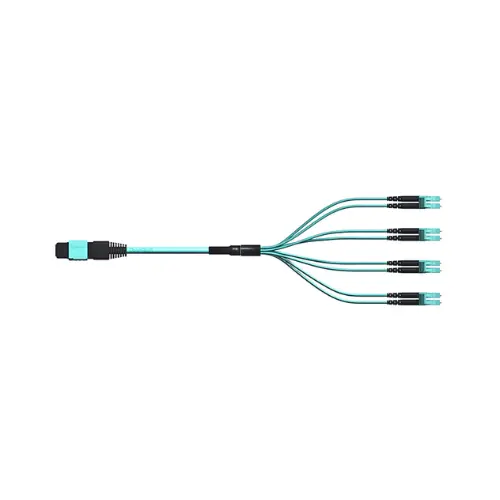

At one end of the MPO breakout cable is an MPO connector—capable of supporting up to 12, 24, 48, or even 72 fibers—while the opposite end consists of breakout legs terminated with individual connectors. This structured layout allows network designers and engineers to connect high-bandwidth backbones to active equipment, patch panels, or optical switches efficiently. The MPO breakout cable reduces cable clutter and simplifies installation in high-density areas by combining multiple fibers into a single jacketed assembly, ultimately providing a cleaner and more reliable cabling system.

Engineered for high-speed optical networks, the MPO breakout cable is essential for environments demanding 40G, 100G, 200G, or even 400G data rates. These high-throughput systems require robust and consistent signal transmission, which this cable supports through precision ferrule alignment and low insertion loss. The MPO high-speed cable not only meets but often exceeds performance standards, ensuring long-term reliability and superior signal quality in both short- and long-range applications.

Unisol manufactures each MPO breakout cable using high-quality materials that comply with industry standards for insertion loss, return loss, and mechanical durability. The MPO optical cable’s rugged outer jacket can be tailored for specific environments, with plenum-rated, riser-rated, and LSZH (Low Smoke Zero Halogen) options available depending on the installation requirements. Inside the cable, bend-insensitive fibers ensure that performance is maintained even when space is limited or tight cable routing is necessary.

The fanout legs of the MPO breakout cable are clearly labeled and color-coded, enabling rapid identification and reducing the risk of installation errors. The fiber optic fanout cable structure ensures each fiber is securely routed with proper bend radius control, avoiding signal degradation that can result from improper handling or tight bends. The secure fanout section is housed within a protective transition point that safeguards the fibers during operation and maintenance.

As an essential part of structured cabling systems, the MPO breakout cable serves as a link between trunk cabling and patch panels or transceivers. In high-density server racks, the cable’s compact form factor allows for easy cable management, while its modular nature enables fast and clean upgrades without extensive reconfiguration. Whether deploying a new 100G link or upgrading existing infrastructure to meet growing bandwidth demands, this multi fiber breakout cable supports rapid deployment while reducing installation time and labor costs.

The MPO breakout cable is available in both single-mode and multimode versions, depending on the optical application. The single-mode variant is designed for long-haul transmissions and delivers exceptional performance across extended distances, making it suitable for metro or backbone networks. The multimode version, meanwhile, is optimized for short-distance high-speed transmission over OM3, OM4, or OM5 fiber, making it ideal for intra-data center links and horizontal cabling.

The MPO network cable is fully compliant with polarity standards (Types A, B, and C), ensuring proper alignment of transmit and receive paths across various optical modules. Maintaining correct polarity is critical in parallel optics applications, and this MPO optical cable ensures that fiber channels are accurately routed to maintain data integrity across high-bandwidth systems.

Each Unisol MPO breakout cable is factory-terminated and tested to strict tolerances, reducing the need for field splicing or polishing. This plug-and-play approach minimizes downtime and ensures consistent optical performance across all connections. The pre-terminated nature of the fiber optic fanout cable allows for repeatable results, making it a preferred solution for projects that require rapid deployment and consistent quality control.

The MPO breakout cable plays a pivotal role in enabling the connection between active devices and passive infrastructure components. Its versatility supports a wide range of network topologies, from spine-leaf data center layouts to distributed access layer architectures in large enterprise networks. When used in conjunction with MPO cassettes, patch panels, and enclosures, the cable forms a part of a scalable, modular ecosystem that supports growth and evolving network needs.

The cable’s compact design is ideal for rack-to-rack or zone cabling environments, where space constraints and cable management are critical factors. By combining multiple individual fibers into one MPO optical cable with fanout legs, network managers can achieve better airflow, simpler routing, and a reduction in potential connection points—resulting in a more reliable and serviceable system.

With growing demand for high-speed interconnects in AI, machine learning, and cloud workloads, the MPO high-speed cable provides a robust backbone for connecting switches, servers, storage systems, and core routers. The use of these cables in environments requiring high port density also eliminates the complexity associated with managing dozens of discrete patch cords, streamlining troubleshooting and system diagnostics.

For enterprise environments seeking a balance of performance, cost-effectiveness, and future-proof design, the MPO breakout cable delivers. Its modular fanout approach offers flexibility for various equipment types and layouts, while its adherence to international standards ensures interoperability with a wide range of transceivers, adapters, and hardware vendors. The ability to quickly upgrade or reconfigure connections using this fiber optic fanout cable makes it a long-term investment in network efficiency and reliability.

Unisol offers customization options for every MPO breakout cable, including breakout lengths, connector types (LC, SC, ST, etc.), fiber count, and jacket type, ensuring that each cable is tailored to meet the precise requirements of the deployment. This level of customization is particularly valuable in structured cabling systems, where precision and performance cannot be compromised.

Whether you’re building a new data center, upgrading to higher transmission speeds, or optimizing existing infrastructure, the Unisol MPO breakout cable is engineered to meet the demands of high-performance optical networking with precision, reliability, and efficiency. Its support for dense multi-fiber connectivity, rapid installation, and long-term durability makes it a critical asset in achieving next-generation network goals across diverse industries.
