Outdoor Floor Mount Racks/Cabinets

Network Racks

Outdoor Floor Mount Racks/Enclosure


  • Mounting : Floor Mountable
  • Material : Galvanized Steel
  • Basic Frame : Steel four pillars with the steel end frame
  • Construction : Welded
  • Front Door : Lockable GI Door Plain or Lockable Toughened Glass GI Door
  • Standard Finish : Powder Coating
  • Standard Mounting Option : Base frame
  • Standard Color : Light Grey / Dark Grey / Black
  • Side and Bottom Panel : Vented with fan and cable entry provision

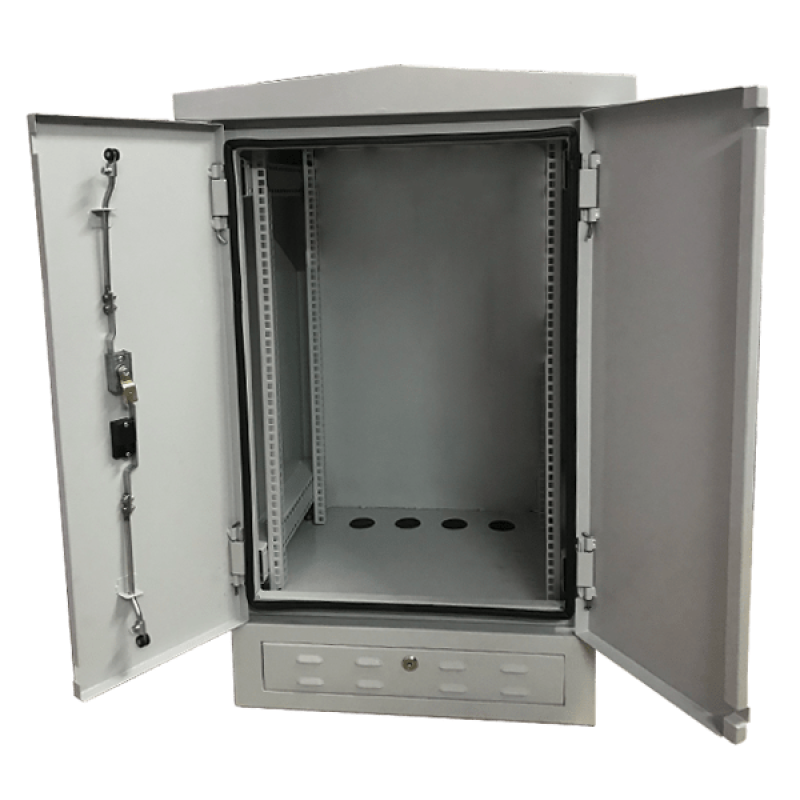

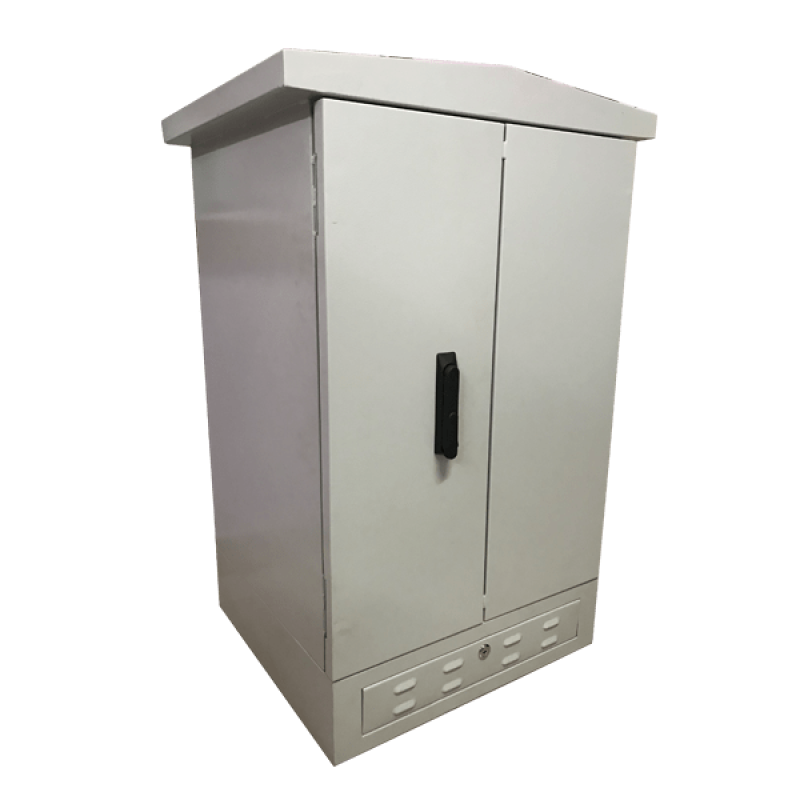

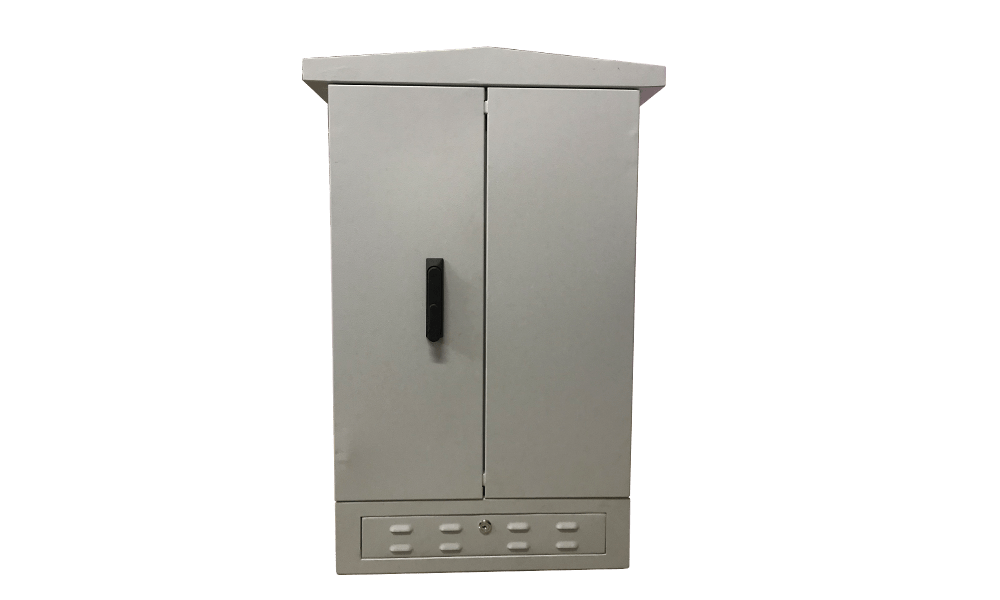

UNISOL Floor mount Racks for Outdoor Application, designed to meet IP54 with Fan & IP55 without Fan (Ingress protection) requirement. Racks manufactured out of CRCA steel sheet punched, formed, welded and to withstand the Harsh Outdoor condition the racks are specially powder coated dual coat with primer & pure polyester powder. The standard for Racks will be fully welded frame with integrated side panel and Associated Front & Back Metal Door with 3 Point lock & Key and provision to mount racks on Floor. Available from 6RU to 42RU Variants with 600 & 800 Width and 600~800 Depth configurations. Fan mounting provision can be on sides or top with canopy with filter unit to meet IP 55 (Ingress protection) requirements

Product Overview:
  • The lockable steel door at the front and rear ends are closed.
  • Fan exhaust cut out on the right and left side of the unit.
  • Ventilated with Filter Grill on both the left and right sides.
  • Powder-coated with Pure Polyester for protection against rust, Oxidation Scratches, and Corrosion.
  • Available optional accessories are LIU Box, Exhaust Fan, Power Strip.
  • Modification can be done according to the equipment like ONU Pockets, media Converters pockets and pocket for Fibre Splice tray.

UNISOL outdoor cabinets for Optical Line Terminals (OLTs) and Optical Networking Units (ONUs), fully integrated and ruggedized for outdoor installation with Weather proof and dust proof. Essential for enterprise, SOHO, and residential Fiber-To-The Curb (FTTC) and Fiber-To-The-Building (FTTB) access networking.

UNISOL These cabinets are rust proof well protected from accidental or malicious damages. Complete cable routing design with fiber bend radius over 40mm Modular design and easy installation, modules are exchangeable optimal management for patch cords with fiber storage units.Telecom cabinets can also be configured to meet specific requirements with a range of options also available including environmental protection and integration. Telecommunications racks and cabinets designed for deployment inside standard telecommunication equipment and accessories, through to residential applications to street-type applications.

  • Seven Tank pretreatment process Powder coating with industry standards

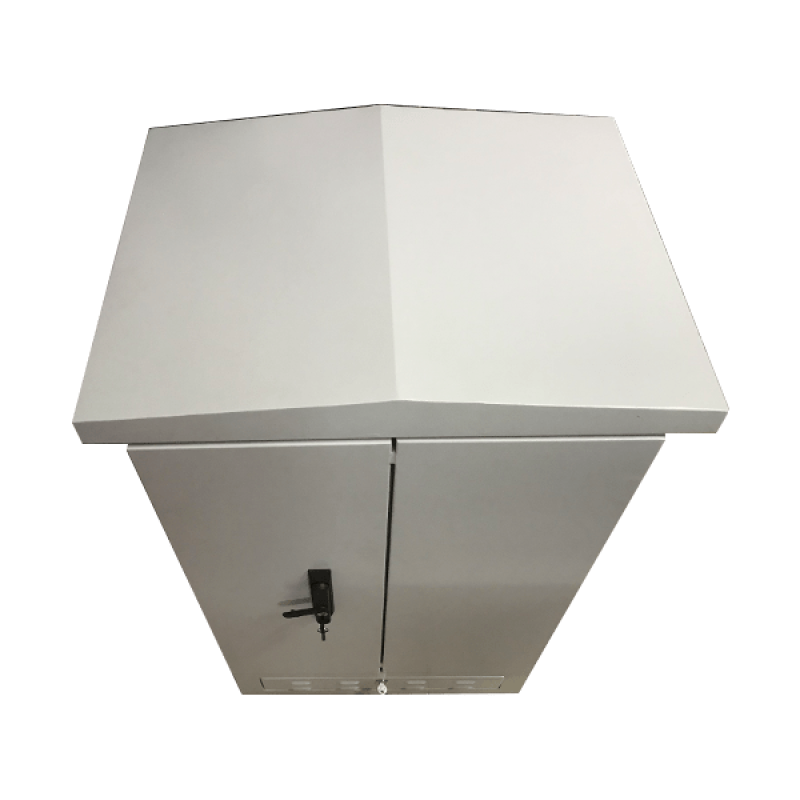

  • Top Canopy with air filter Option
  • Supports max four cable entry with glands
  • Hight adjustable self.
  • IP Standards to protect against the dangers of dust, humidity, rain,  moisture and physical attack
  • Protection from harsh outdoor and industrial environments
  • Highest protection against corrosion
  • Lock and key for security purpose
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable,  signal cable and optical cable.
  • The cabinet uses assembled structure, easy for installation.

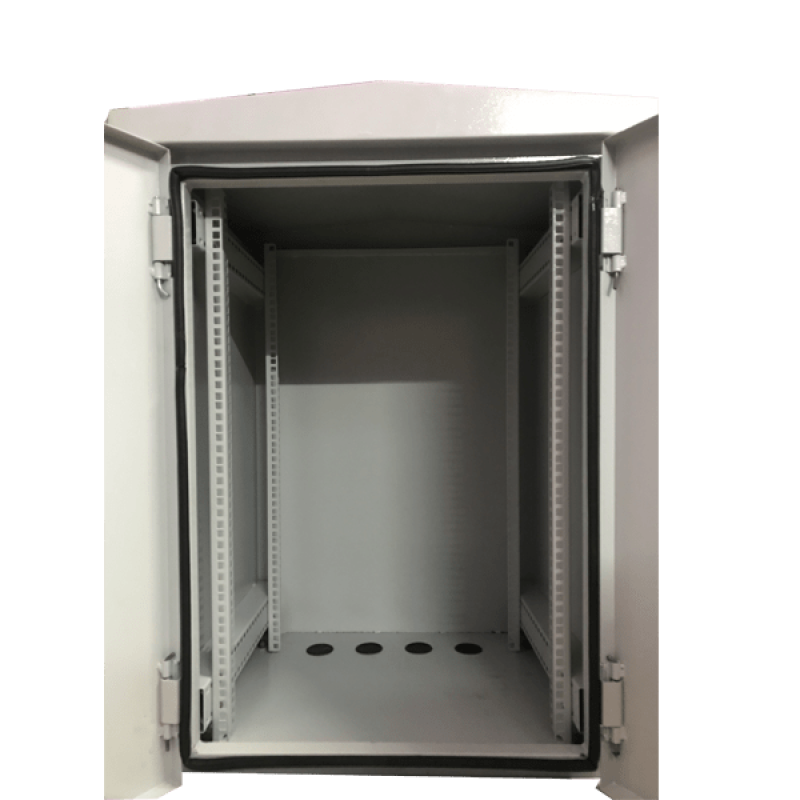

  • The cabinet includes 19” standard installation frame.
  • Powder Coat with UV protection
  • Simple, useful, functional constructions
  • The cabinet Have Single Door With One Side Hinged and Other Side Locking . The door opening angle is larger than 110°. The lock Knob type, padlock Provision available.
  • Used in Smart Cities & ITMS Projects,
  • Communication base station, such as the 4G system
  • CCTV Surveillance
  • City Surveillance, Traffic Monitoring,
  • Fiber Termination and Defense Projects
