Outdoor Wall Mount Rack

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

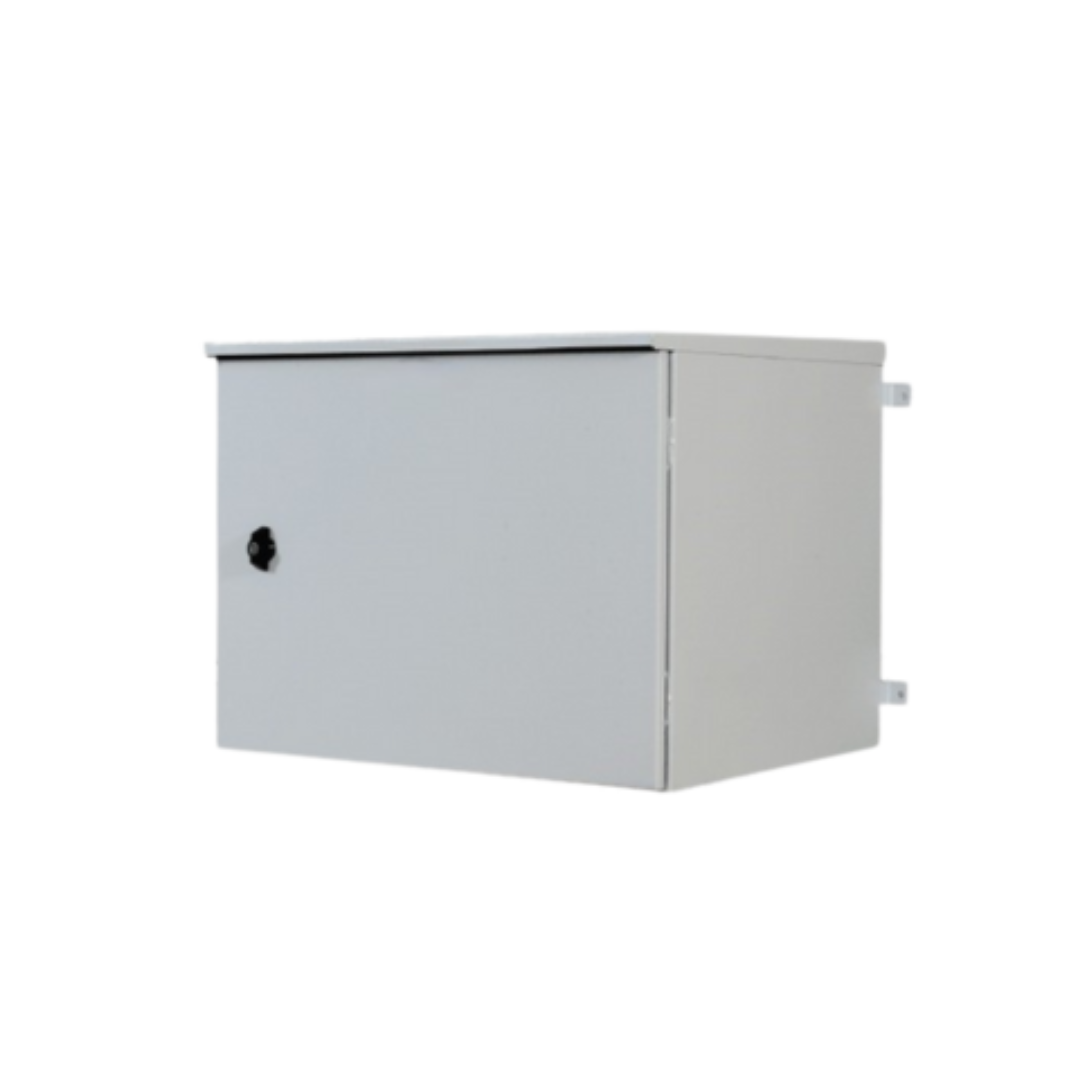

Outdoor Wall Mount Rack

SPECIFICATIONS:

Material: Mild Steel/Galvanized Iron
Protection Class:  IP55 – IP65
Construction: Welded
Front Door: Lockable Door
Standard Finish: Powder Coating
Mounting: Wall Mountable
Standard Color: RAL 7035
Size: 2U – 15U
Side and Bottom Panel: Welded, with necessary ventilation and Cable entry cut-outs

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

Unisol Outdoor Wall Mount Rack provides a durable and space-saving solution for organizing and securing network equipment in outdoor and telecommunication environments. Designed to withstand the elements, this wall mount network rack is perfect for locations where floor space is limited and protection from weather conditions is crucial. It helps safeguard against dust, humidity, rain, moisture, and physical attacks, offering a cost-effective and space-efficient solution for outdoor enclosures. Unisol Outdoor Wall Mount Rack is available in 2U to 15U sizes, offering versatility for different setups and equipment requirements

Made from high-quality steel sheet, the rack is punched, formed, welded, and powder-coated to meet the highest standards of durability and performance. Additionally, it offers a wall-mountable design for easy installation, making it an excellent choice for outdoor use.

Unisol Outdoor Cabinet is engineered to meet IP55 standards with a fan or IP65 standards without a fan for optimal ingress protection (dust and water resistance). A fan mounting provision, which can be positioned on the side or bottom, is designed to ensure that your equipment stays protected in harsh outdoor environments.

Ideal for a wide range of applications, including Smart City Projects, Safe City Projects, Telecom Infrastructure, and IT/Telecom Projects, the Unisol IP 65 Outdoor Wall Mount Rack provides a secure, temperature-controlled environment for valuable and sensitive communications, electronic, and electrical equipment.

● Fully welded construction for strength and durability.
● Front door with lock & keys.
● Racks are equipped with two pairs of adjustable 19” mounting rails to mount.
● Full powder coated rigid steel construction.
● Power Strip, Cooling Fan, Cable Manager, and Mounting Hardware are all options for additional accessories.
● 19″ standard installation, double section welded frame structure.
● Engineered cable management solutions to efficiently control the increasing density of in/out cabling.
● Ideal for outdoor networking applications.
● Available in 2U to 15U sizes, offering versatility for different setups and equipment requirements
● IP55 or IP65 rated racks which safeguards against dust, humidity, rain, moisture, and physical attacks.

● Data Centers.
● Enterprise networks.
● Telecommunication networks.
● CCTV surveillance system.
● Fiber To The Home (FTTH).

DESCRIPTIONSIZEH (Overall Height)W (Overall Width)D (Overall Depth)PART NO.
Unisol Outdoor Wall Mount Rack2U170 mm600 mm400 mm
500 mm
UCPL-02U-ODWMR
Unisol Outdoor Wall Mount Rack4U260 mm600 mm400 mm
500 mm
UCPL-04U-ODWMR
Unisol Outdoor Wall Mount Rack6U350 mm600 mm400 mm
500 mm
UCPL-06U-ODWMR
Unisol Outdoor Wall Mount Rack9U480 mm600 mm400 mm
500 mm
UCPL-09U-ODWMR
Unisol Outdoor Wall Mount Rack12U615 mm600 mm400 mm
500 mm
UCPL-12U-ODWMR
Unisol Outdoor Wall Mount Rack15U750 mm600 mm400 mm
500 mm
UCPL-15U-ODWMR
