Fiber Optic Pigtail

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

Fiber Optic Pigtail

SPECIFICATIONS:

  • Connector Type: FC, SC, LC, ST, MU, MT, MTRJ and E-2000
  • Optical Fiber: Single-mode Multi-mode
  • Insertion Loss: ≤ 0.2dB (SM), ≤ 0.3dB (MM)
  • Return Loss:(dB) PC≥45, UPC≥50, APC≥60
  • Standards Compliance: Compliant with Telcodia GR-326
  • Operating Temperature: -25°C to +70°C
  • Durability: 500 matings

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

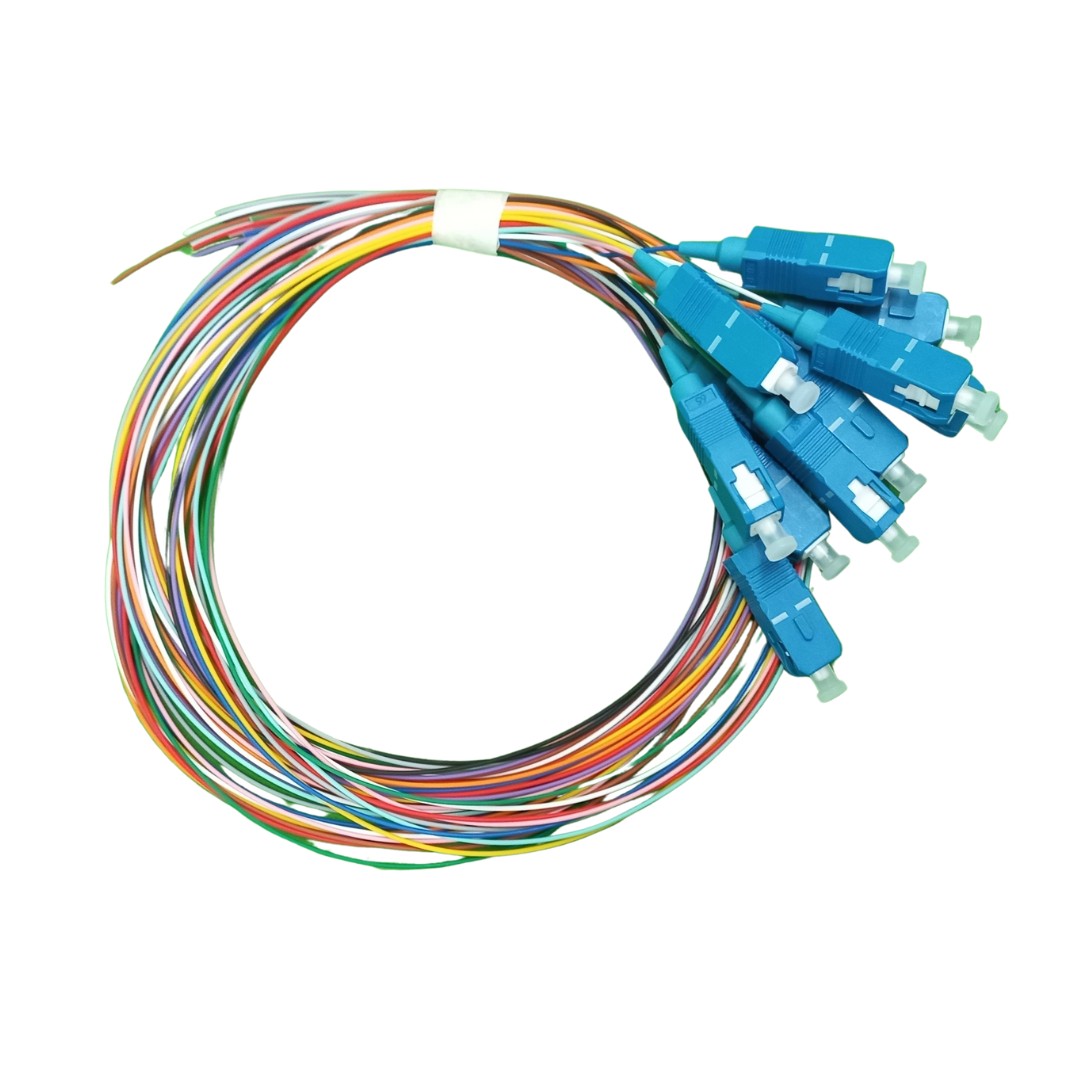

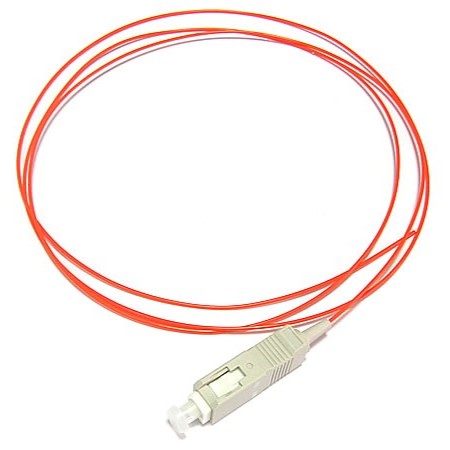

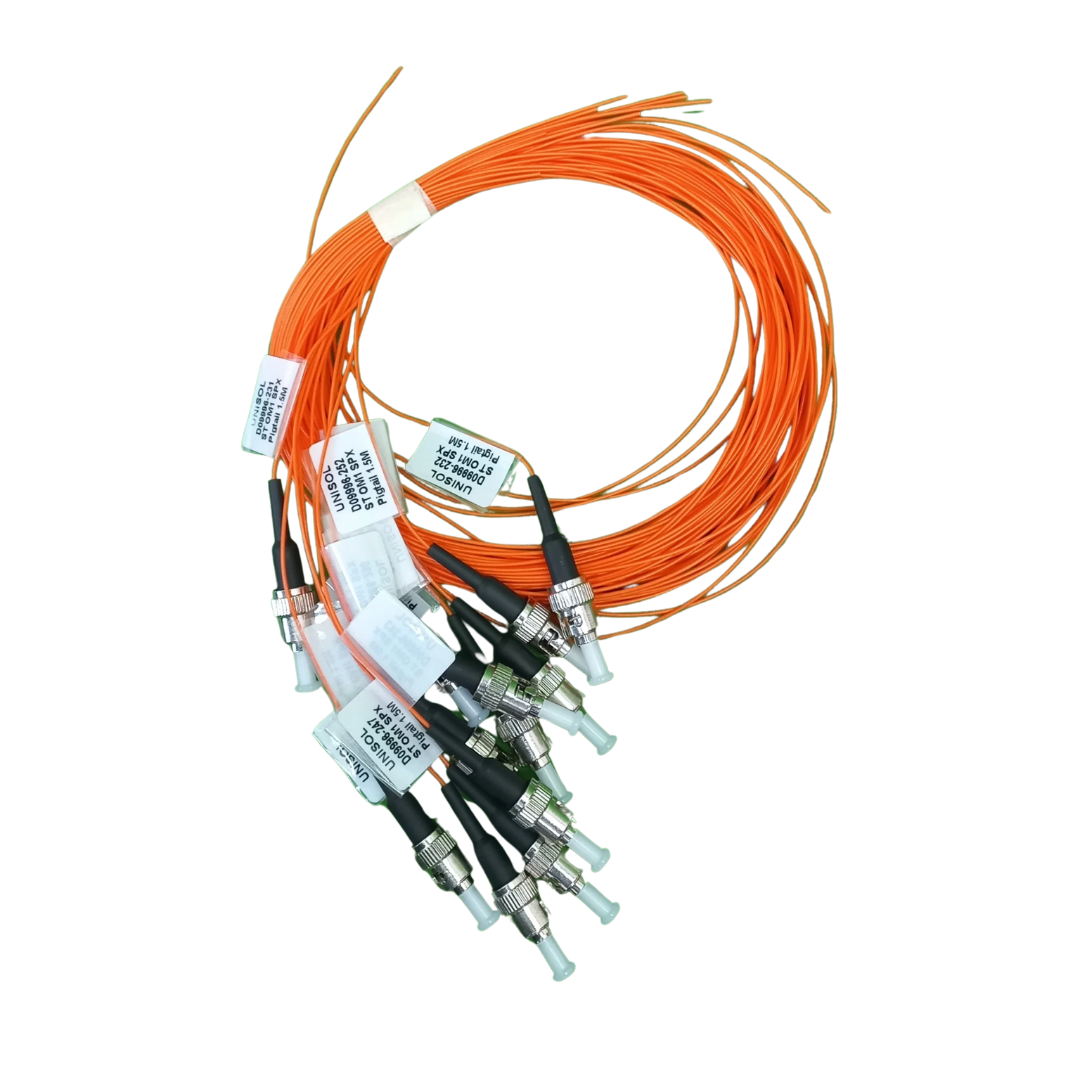

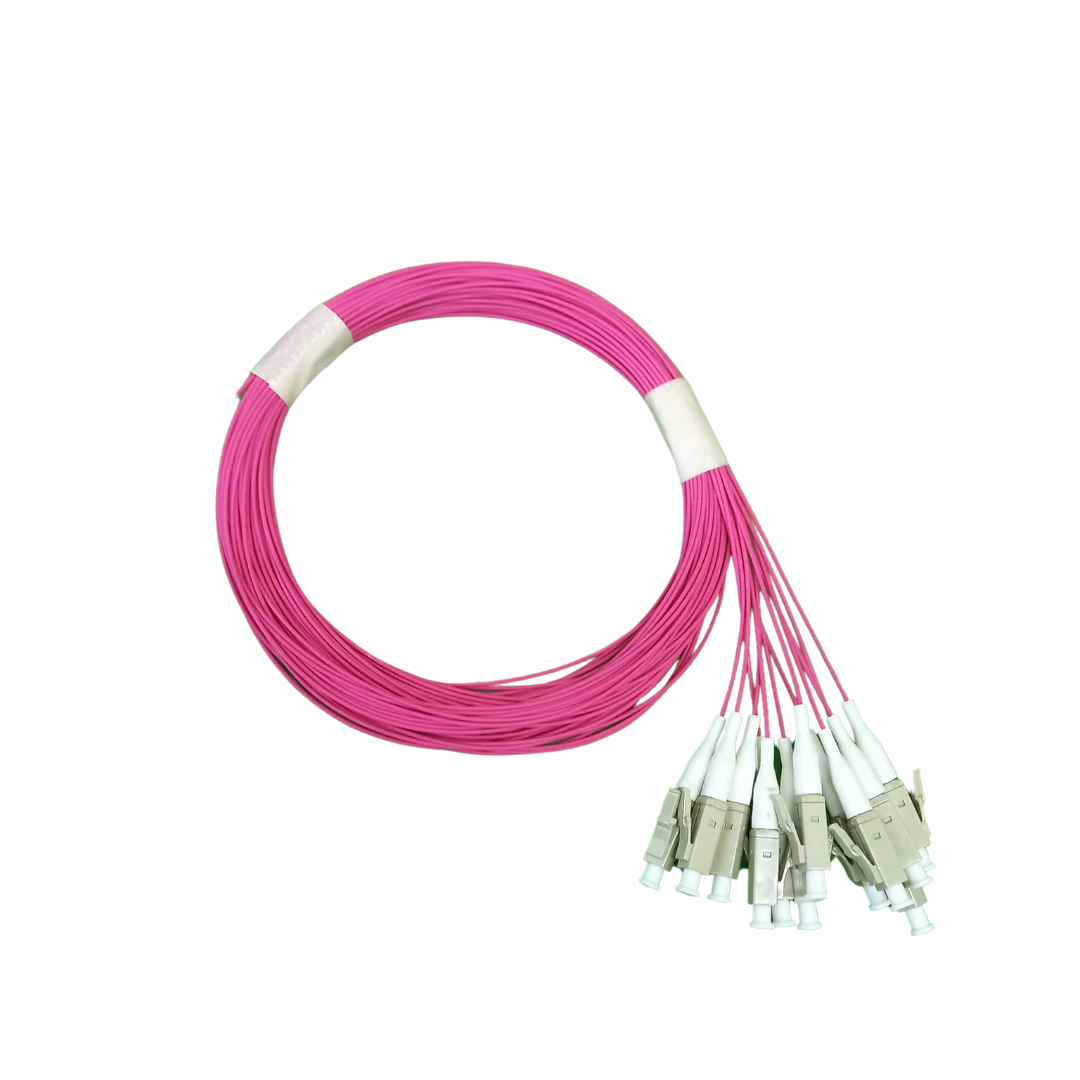

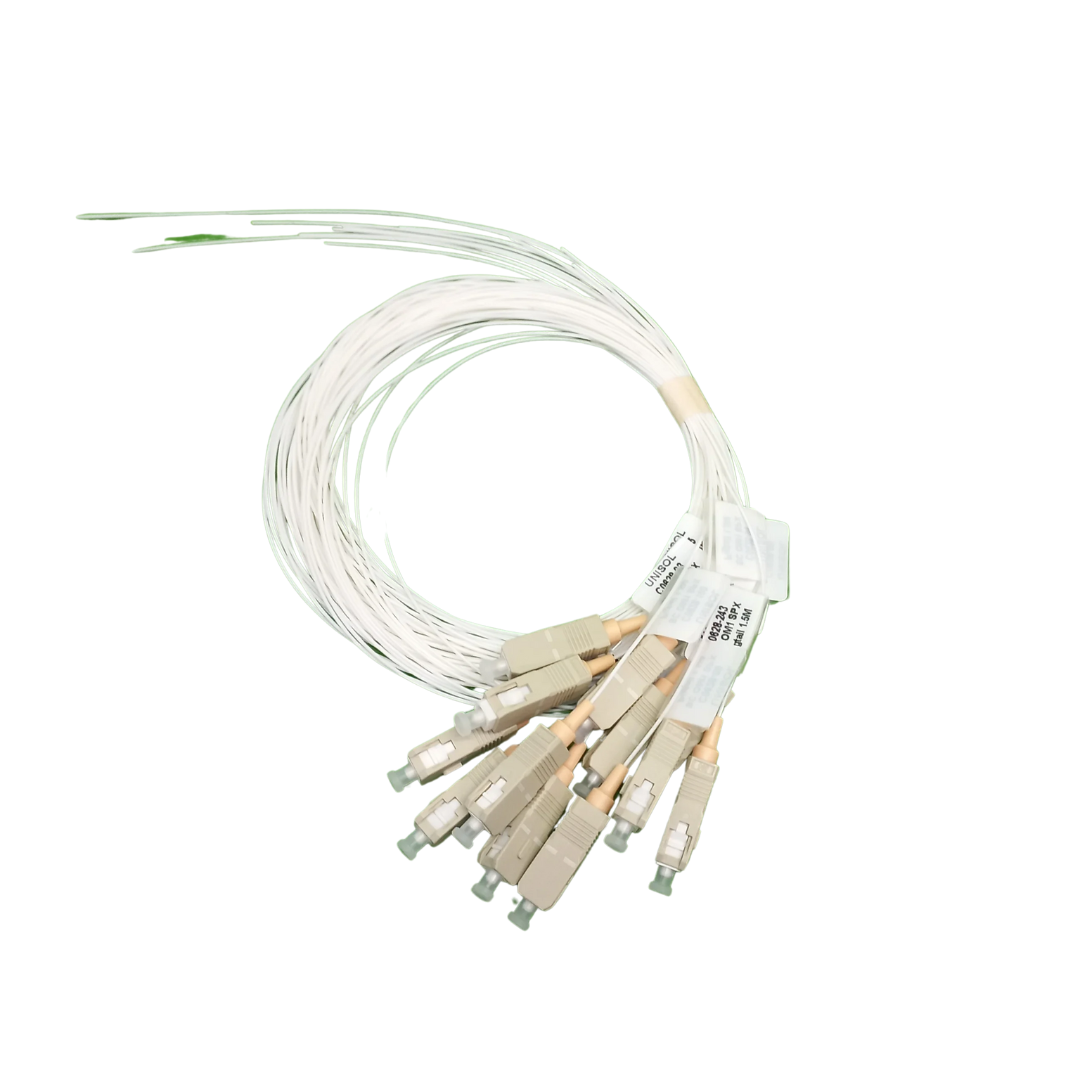

Unisol Fiber Optic Pigtail is a specialized fiber optic cable with a factory-installed connector on one end, while the other end is left bare for fusion or mechanical splicing with optical fiber cables. These fiber pigtails play a crucial role in simplifying the termination process, offering a seamless connection between fiber optic equipment and the network. Typically used in ODF (Optical Distribution Frames), fiber optic patch panels, and distribution boxes, fiber optic pigtails provide a reliable solution for high-performance fiber optic terminations.

Fiber optic pigtails come in a variety of types, offering versatile solutions for different network configurations. They are typically categorized by connector type, fiber type, and fiber count. Common connector types include LC, SC, FC, and ST fiber optic pigtails, while fiber types are divided into single-mode and multimode fiber optic pigtails. Additionally, fiber count options range from 6 to 12 fibers, catering to different network requirements.

● Fiber optic pigtails ensure excellent concentricity and minimal loss with high-precision ceramic ferrules.
● They provide stable and efficient optical transmission with low insertion and high return loss.
● Each pigtail undergoes 100% quality inspection to guarantee reliability.
● The end faces are clean and scratch-free, ensuring optimal performance.
● These Pigtails are available in both single-mode and multi-mode, and they offer compatibility for various applications.
● These fiber pigtails can be chosen from multiple connector options, including FC, SC, LC, ST, MU, MTP, and E2000.
● Fiber optic pigtails are built to withstand harsh environments, and they offer exceptional durability.
● They maintain stable performance even under varying environmental conditions.
● Their advanced termination processes ensure precise fiber geometry for seamless integration.
● Pigtails are designed for fast, reliable, and high-quality connectivity in any network setup.

● Industrial Automation
● Telecommunication Networks
● Data Centers
● Measurement and Testing Instruments
● Optical Communication Systems
● Broadcasting and Media
● Medical Applications
● Military and Defense
● FTTx System
● Security Surveillance

DESCRIPTIONPART NO.
Connector type AA Indicate type of connector AA


MTRJ UPC Connector
MT – MTRJ Female
MTM – MTRJ Male

E2 – E2000 UPC Connector
E2A – E2000 APC Connector

LC – LC UPC Connector
LCA – LC APC Connector

SC – SC UPC Connector
SCA – SC APC Connector

ST – ST UPC Connector

FC – FC UPC Connector
FCA – FC APC Connector

MU – MU UPC Connector

SMA – SMA UPC Connector
Fiber TypeIndicate Fiber type of the Pigtail
Singlemode 9/125μm (G.652D) Multimode 62.5/125μm (OM1) Singlemode 9/125μm (G.655) Multimode 50/125μm (OM2) Singlemode 9/125μm (G.657A1) Multimode 50/125μm (OM3) Singlemode 9/125μm (G.657A2) Multimode 50/125μm (OM4)
Cable TypeIndicate Fiber connector type
SPX – Simplex Type
REMARKS

Product Part No. Example:
UCPL-PIGTAIL-SMSC/UPC-SPX – Single Mode 9/125 SC/UPC Simplex Pigtail
