12 Port Sliding Rack Mount Fiber Patch Panel

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

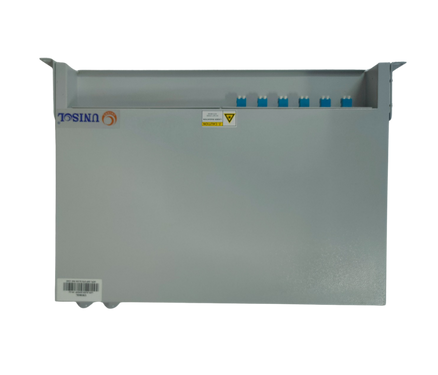

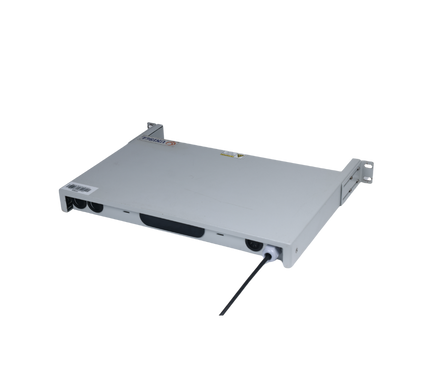

12 Port Sliding Rack Mount Fiber Patch Panel

SPECIFICATIONS:

  • Material : CRCA/Aluminum with 7 Tank Process powder coating.
  • Dimensions : 44*440*320 mm (H*W*D)
  • Color : RAL 7035/Black
  • Spool : FR grade PVC.
  • Cable grommet : FR grade Nylon
  • Splice Holder : FR grade ABC.
  • Splice Holder Dimension : 220*110*10 mm (L*W*H)
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 times
  •

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

Unisol 12 Port Sliding Rack Mount Patch Panel is compact, efficient, and designed to streamline fiber optic network management. With a 1U height, these fiber patch panels are ideal for installation in standard 19 inch server racks and network racks, providing secure housing for spliced optical fibers from external fiber optic cables.

This sliding rack mount fiber patch panel is tailored for seamless integration into any network environment where space efficiency and reliable performance are critical. The fiber panel is constructed from high quality mild steel or aluminum and undergoes powder coating, providing a durable finish available in RAL 7035 or black.

The 12 port sliding rack mount patch panel is engineered to support SC, LC, ST, or FC adapters, making it compatible with both singlemode and multimode fiber optic cables. Its modular design ensures network administrators can tailor the patch panel for fiber to their specific needs, making it one of the most versatile options on the market.

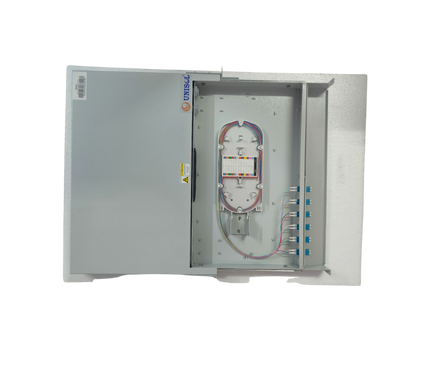

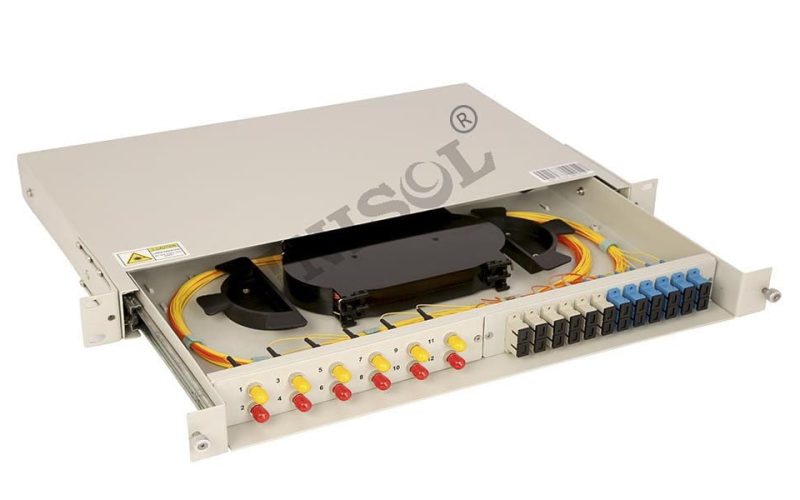

Ease of access is a major feature of this fiber patch panel rack mounted slide type. The tray glides out smoothly, enabling quick reach to internal components for installations or routine maintenance. This function is especially beneficial during high-volume deployment environments, where quick serviceability can save time and reduce downtime. The fully removable top cover allows for unhindered access to splice trays and internal cable routing, further simplifying the workflow.

A key highlight of this 12 port sliding rack mount fiber patch panel is the included splice management kit. This kit features splice trays, mounting ears, cable glands, cable ties, and splice sleeves, all designed to support clean and organized splicing. The splice holder, made from FR grade plastic helps maintain bend radius control and secure fiber splices, ensuring long term reliability.

Each sliding rack mount fiber patch panel includes up to six cable entry ports. The inclusion of FR grade nylon cable grommets and spools made from flame-retardant PVC enhances fire safety and adds durability to the entire patching system. These details, though small, contribute to the overall effectiveness and reliability of the system.

The performance standards of this 12 port sliding rack mount fiber patch panel complies with the Telecordia GR 326 standard and offers low insertion loss levels, less than 0.2dB for singlemode fibers and less than 0.3dB for multimode fibers. The plug and unplug durability of up to 1000 cycles adds to its suitability for high use environments such as data centers and telecom facilities.

The sliding rack mount patch panel is not just designed for performance but also for adaptability. It can be scaled to accommodate larger configurations, including 24 port, 48 port, as part of a structured cabling system. This adaptability means the same form factor and sliding design can be retained even as network requirements grow.

Unisol 12 port sliding rack mount fiber patch panel has become a preferred choice in industries where clean cable routing, fast deployment, and reduced downtime are essential. Whether used in data centers, central offices, FTTx networks, surveillance infrastructures, or process control rooms, the sliding rack mount fiber patch panel plays a critical role in keeping network operations smooth and scalable.

The rack mount fiber patch panel slide type ensures technicians can make adjustments or carry out maintenance without disrupting adjacent network equipment.

By combining high quality materials, ergonomic design, and international performance standards, the 12 port rack mount sliding fiber patch panel brings together everything a high functioning fiber network requires. The sliding rack mount fiber patch panel design also supports future upgrades, making it a future proof choice for organizations aiming for long term network scalability and operational efficiency.

Unisol’s commitment to quality and usability makes every sliding rack mount fiber patch panel a reliable component in structured cabling systems across diverse industries.

  • MS/Aluminum housing with seven Tank process powder coating.
  • Suitable for 19’’Rack mount Applications
  • Replaceable panel for SC/ST/LC/FC type couplers.
  • Can manage adapter panel for maximum 48 SC/48 LC in 1U size
  • Capable of storing up to three meters of 900 micron tight buffered fiber cable
  • Allow maximum six cables entry.
  • Patch or fusion splice field termination standard.
  • High impact resistance splice tray & cable spool for fiber & pigtail routing
  • Accessory kit includes mounting ear, cable gland, cable ties and screws
  •
  • Indoor Premise Networks
  • Central offices (FTTx)
  • Data Centers
  • Telecommunication Networks
  • Security Survelliance
  • Process Automation & Control Systems
  • Power Systems & Controls
  •
DescriptionPart No.
Unisol 24 Port Rack Mount Fiber Optic Patch Panel/LIU
UCPL-STD-24PRM-PP
Unisol 48 Port Rack Mount Fiber Optic Patch Panel/LIU
UCPL-STD-48PRM-PP
Unisol Adapter panel 1×12 SC SM Simplex
UCPL-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM Simplex
UCPL-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM Duplex
UCPL-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM Duplex
UCPL-SCMM12PDPX
Unisol Adapter panel 1×12 SC SM Duplex
UCPL-SCSM24PDPX
Unisol Adapter panel 1×12 SC MM Duplex
UCPL-SCMM24PDPX
Unisol Adapter panel 1×12 ST SM Simplex
UCPL-STSM12PSPX
Unisol Adapter panel 1×12 ST MM Simplex
UCPL-STMM12PSPX
Unisol Adapter panel 1×12 LC SM Duplex
UCPL-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM Duplex
UCPL-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM Simplex
UCPL-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM Simplex
UCPL-FCMM12PSPX
