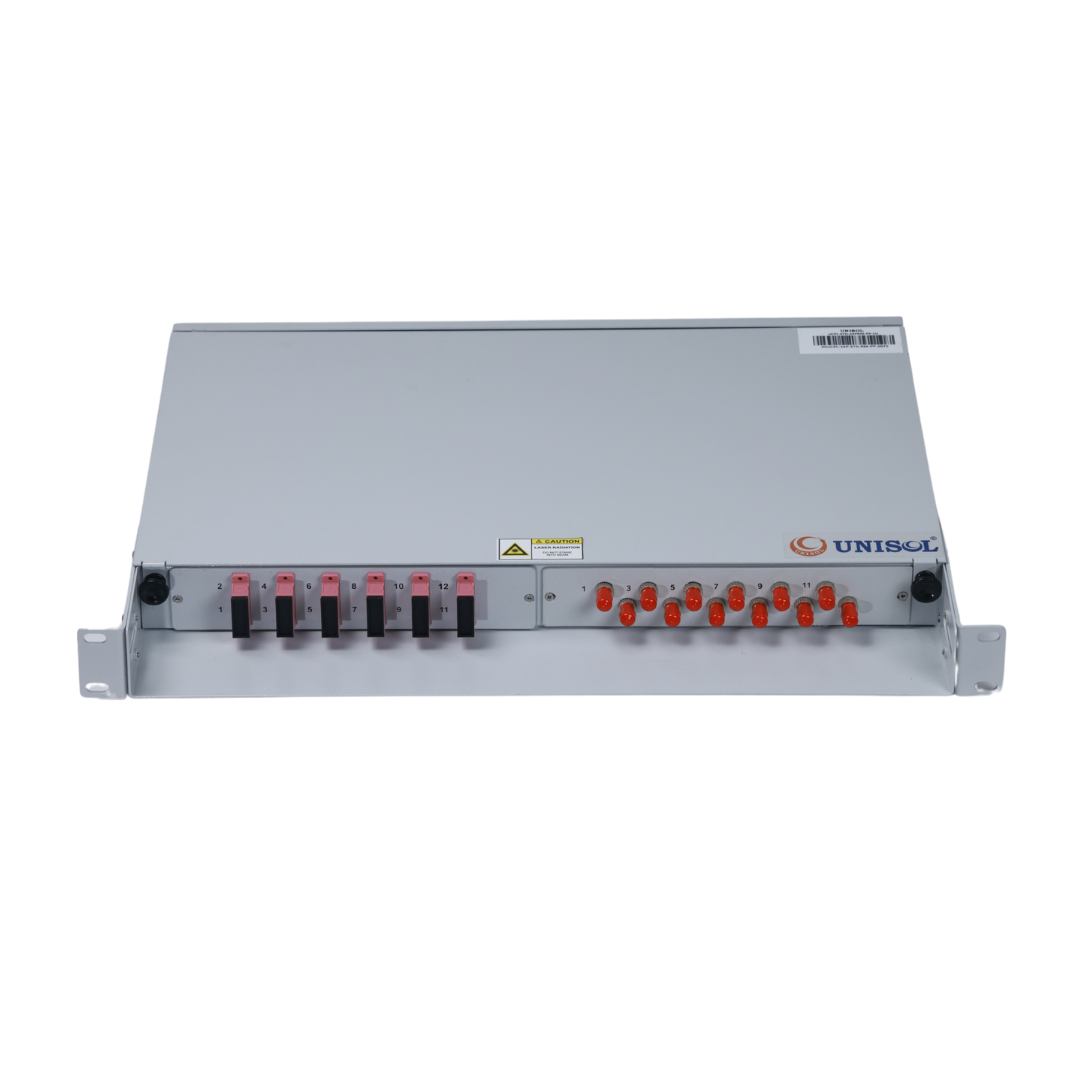

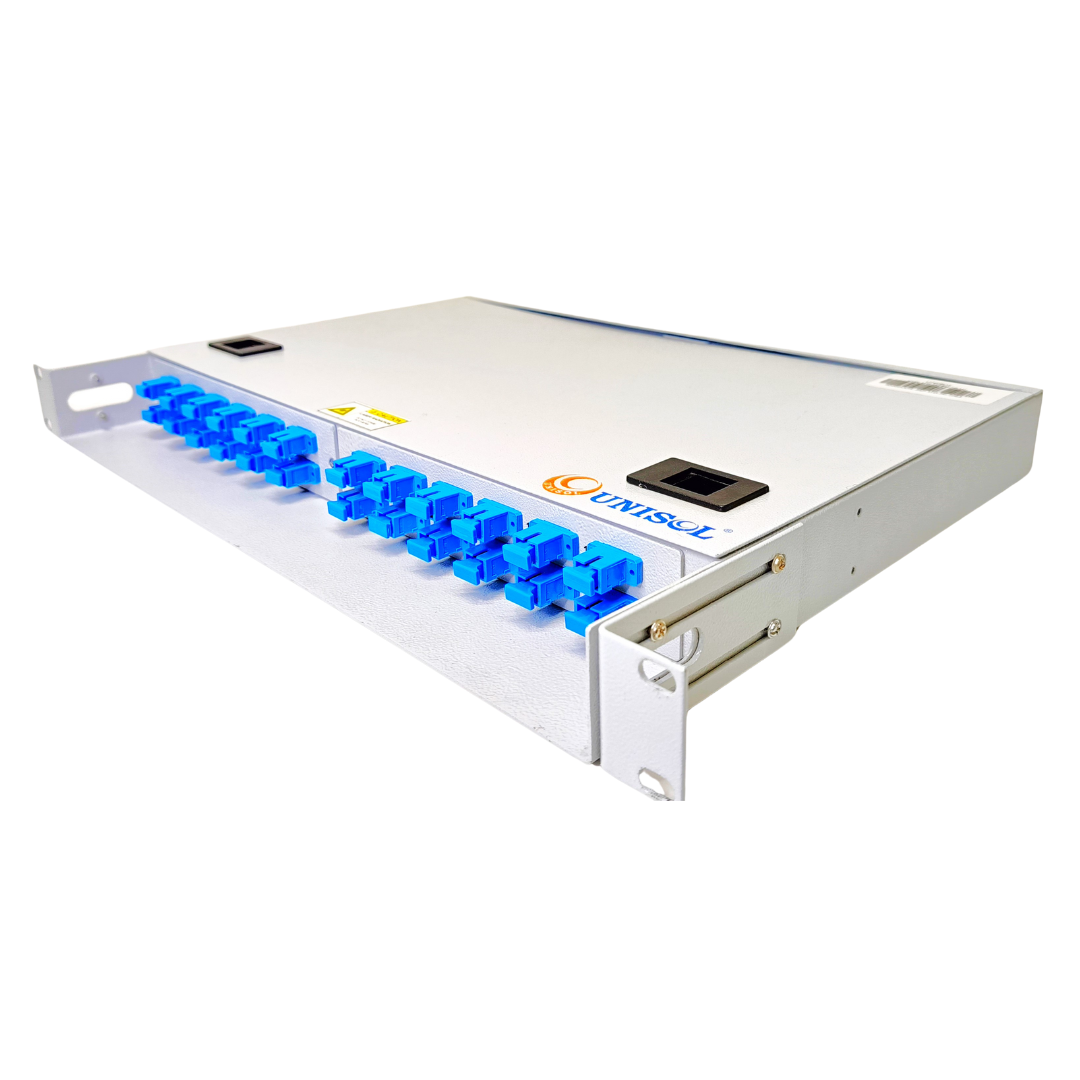

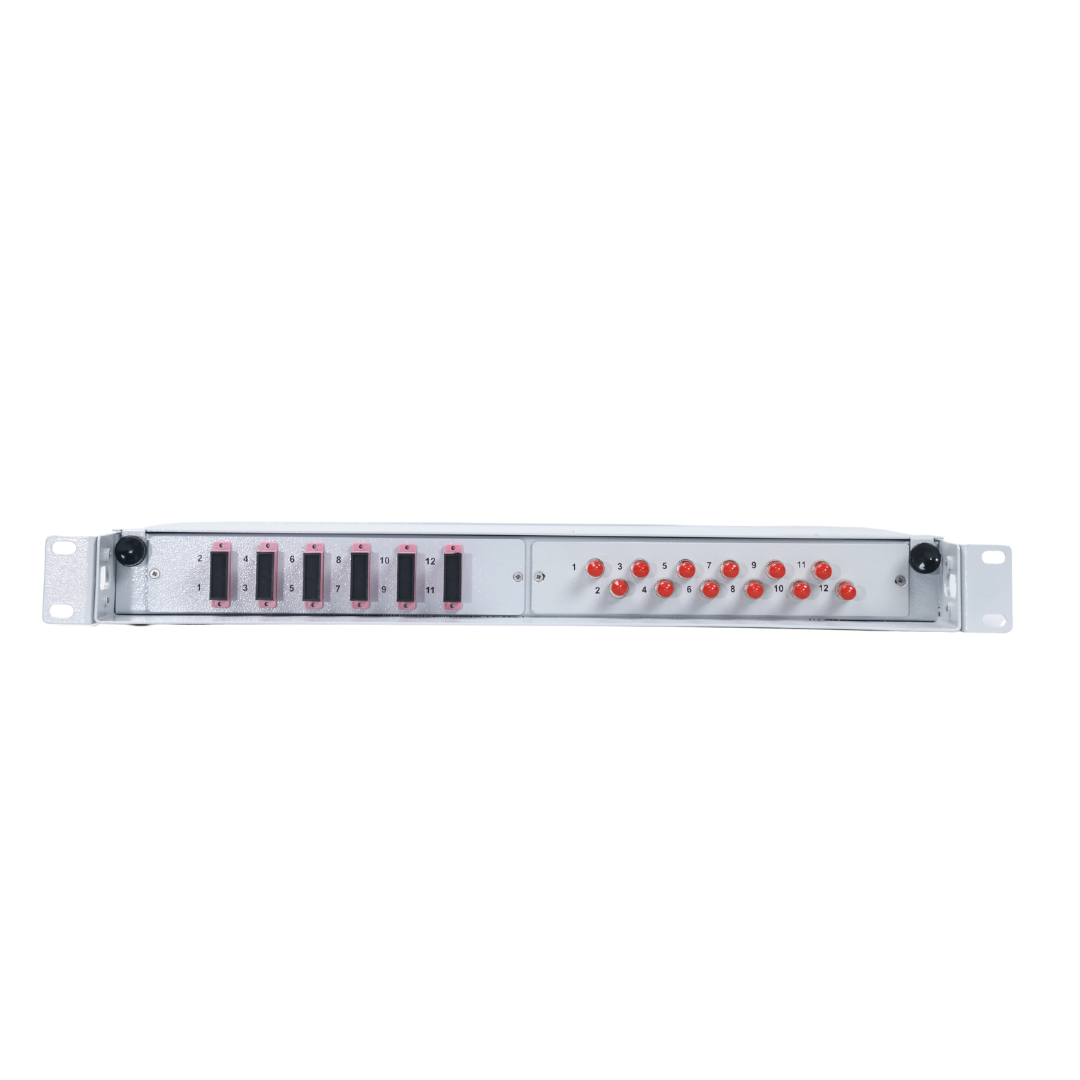

24 Port Rack Mount LIU

SPECIFICATION

Rack Mount Patch Panel

1U Standard Rack Mount Patch Panel/LIU

SPECIFICATIONS:

  • Material : CRCA/Aluminum with 7 Tank Process powder coating.
  • Dimensions : 44*430*320 mm (H*W*D)
  • Color : RAL 7035/Black
  • Spool : FR grade PVC.
  • Cable grommet : FR grade Nylon
  • Splice Holder : FR grade ABC.
  • Splice Holder Dimension : 220*110*10 mm (L*W*D).
  • Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
  • Fiber components standard : Telecordia GR 326
  • Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
  • Plug/Unplug durability : 1000 times

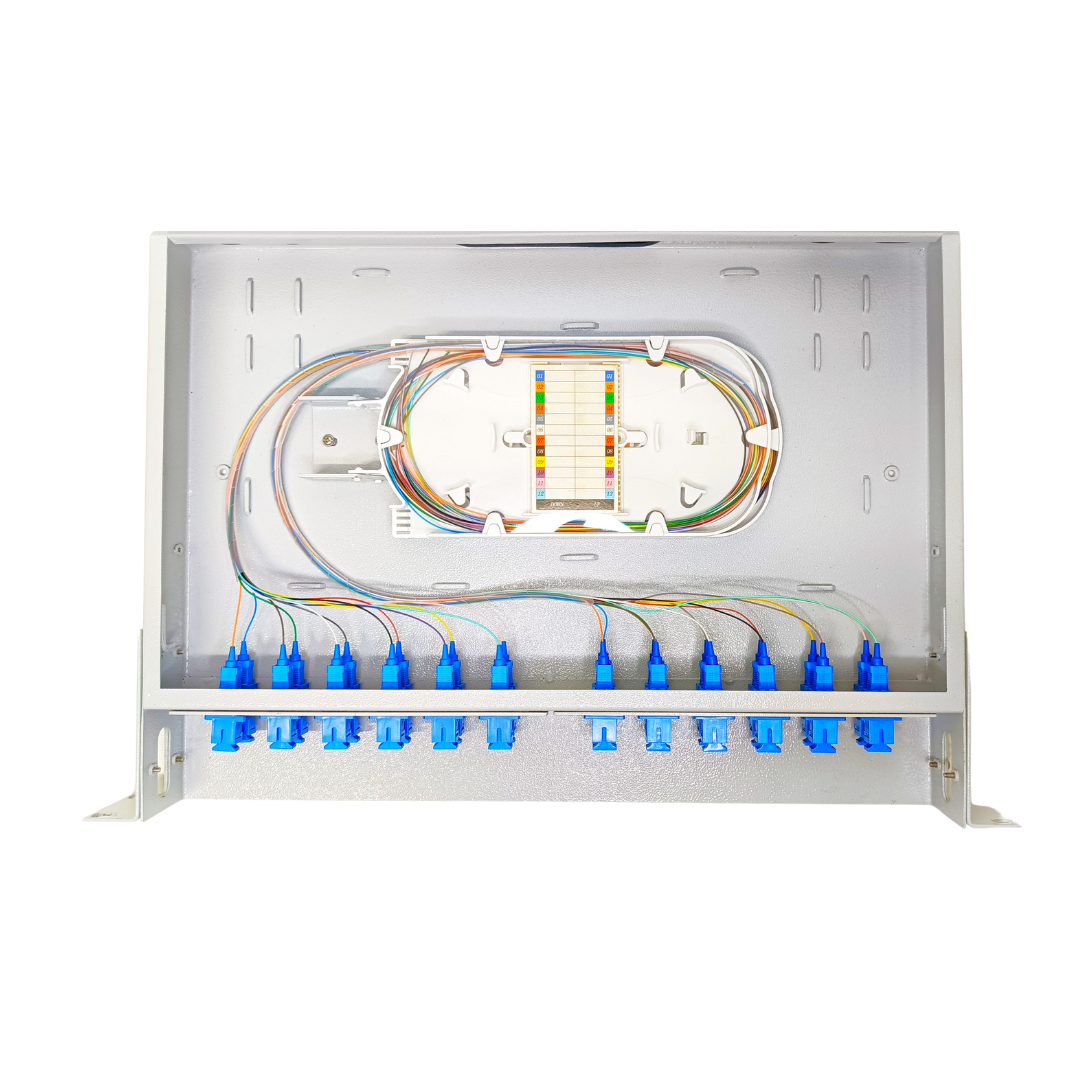

UNISOL Fiber rack mount patch panel provide cross-connect and interconnect capabilities for splicing & terminating OFC cables, pigtails in fiber access network. Rack mount din rail and splice enclosures in data cabinets are available pre-loaded with any connector interface required. These 19-inch Fiber enclosure are ideal for high-density LAN interconnect or cross-connect patching. Unisol’s Highly reliable Fiber patch panels offering user-friendly features that take fiber patching to next level. Our rack mount fiber patch panels are designed based on hundreds of customers feedback & almost two decades of installation experience of our own expert team. Fiber Optic Patch Panel is designed with innovative features that make installation and troubleshooting of fiber optic connectivity faster, easier and more cost effective. These fiber panels are designed for 19” rack mounting with detachable two panel model.

  • MS/Aluminum housing with seven Tank process powder coating.
  • Suitable for 19’’Rack mount Applications
  • Replaceable panel for SC/ST/LC/FC type couplers.
  • Can manage adapter panel for maximum 48 SC/48 LC in 1U size
  • Capable of storing up to three meters of 900 micron tight buffered fiber cable
  • Allow maximum six cables entry.
  • Patch or fusion splice field termination standard.
  • High impact resistance splice tray & cable spool for fiber & pigtail routing
  • Accessory kit includes mounting ear, cable gland, cable ties and screws
  • Indoor Premise Networks
  • Central offices (FTTx)
  • Data Centers
  • Telecommunication Networks
  • Security Survelliance
  • Process Automation & Control Systems
  • Power Systems & Controls
DescriptionPart No.
Unisol 24 Port Rack Mount Fiber Optic Patch Panel/LIUUCPL-STD-24PRM-PP
Unisol 48 Port Rack Mount Fiber Optic Patch Panel/LIUUCPL-STD-48PRM-PP
Unisol Adapter panel 1×12 SC SM SimplexUCPL-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM SimplexUCPL-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM DuplexUCPL-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM DuplexUCPL-SCMM12PDPX
Unisol Adapter panel 1×12 SC SM DuplexUCPL-SCSM24PDPX
Unisol Adapter panel 1×12 SC MM DuplexUCPL-SCMM24PDPX
Unisol Adapter panel 1×12 ST SM SimplexUCPL-STSM12PSPX
Unisol Adapter panel 1×12 ST MM SimplexUCPL-STMM12PSPX
Unisol Adapter panel 1×12 LC SM DuplexUCPL-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM DuplexUCPL-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM SimplexUCPL-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM SimplexUCPL-FCMM12PSPX
