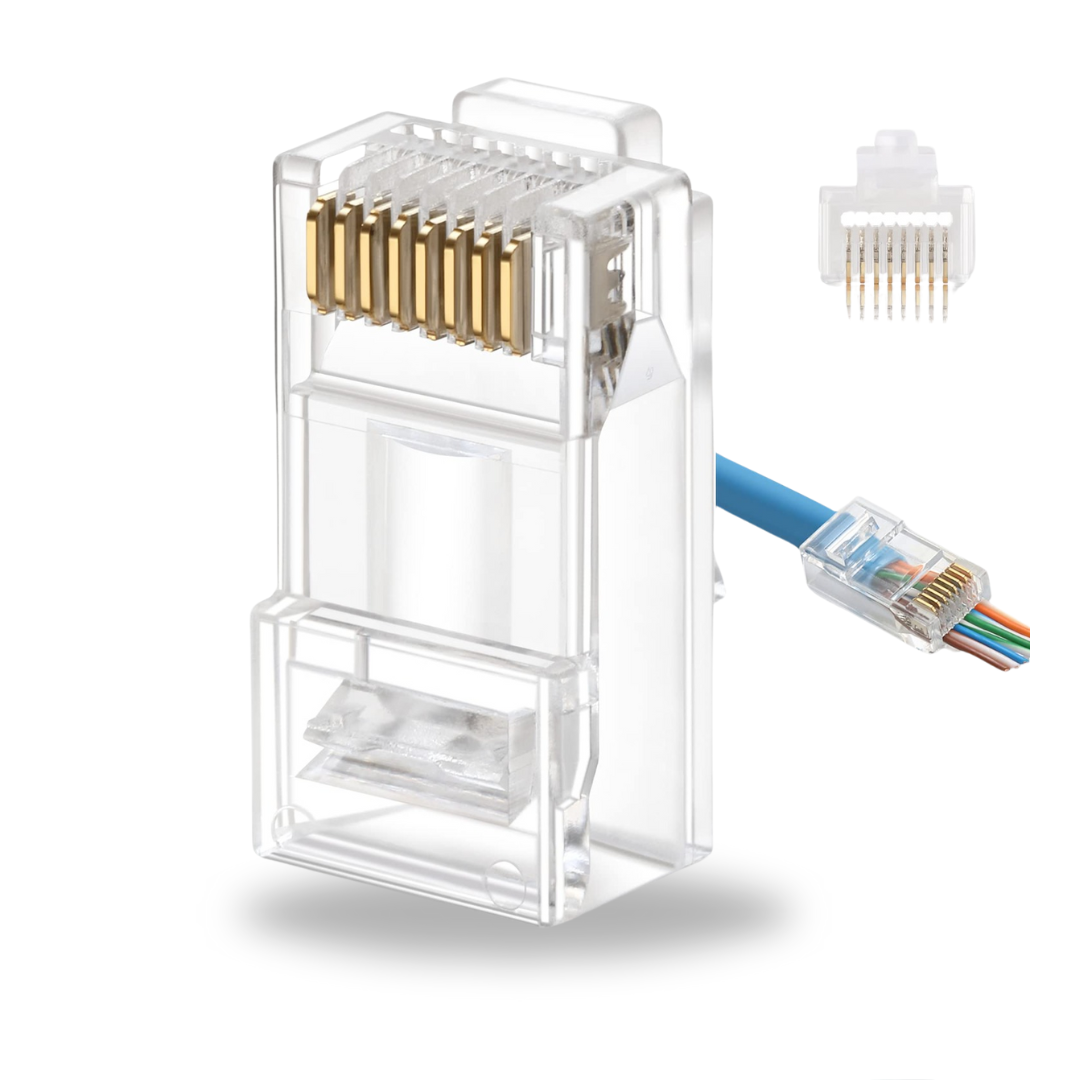

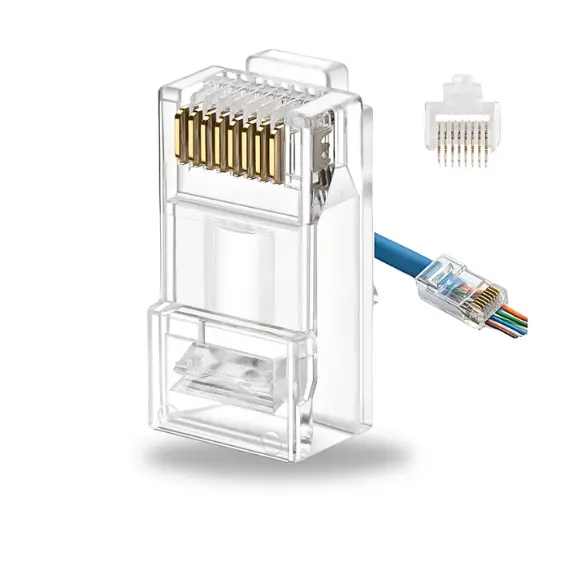

RJ45 Connector

Unisol RJ45 connector is a critical component in Ethernet networking, designed to deliver reliable and high-speed data connectivity in both residential and commercial applications. This RJ45 connector is engineered for terminating the ends of twisted pair cables and serves as the standard interface for creating wired Ethernet connections. Whether used in LAN setups, patch panels, or wall outlets, the RJ45 connector provides a secure, universal link between network devices like computers, routers, modems, and switches.

The RJ45 connector features a compact, modular design that accommodates eight conductors, each aligning with the eight internal wires of a twisted pair Ethernet cable. These conductors are precisely positioned to maintain proper transmission characteristics and minimize issues such as near-end crosstalk and electromagnetic interference. Each conductor slot inside the connector corresponds to a specific wire in the twisted pair cable, and the termination process ensures that signal integrity is preserved from the cable to the connector.

To support efficient data transfer, the Unisol RJ45 connector uses gold-plated contacts. Gold is chosen due to its superior conductivity and corrosion resistance, which contribute to long-lasting, low-resistance connections. These contacts are positioned at the end of each conductor channel and press against the corresponding wires when the connector is crimped. The crimping process, typically performed using an RJ45 crimping tool, locks the cable into place and ensures all conductors are securely mated with their respective contacts.

Durability and ease of use are central to the Unisol RJ45 connector’s design. Its robust housing is made of high-quality polycarbonate plastic, which protects the delicate internal components while offering the necessary flexibility for installation. The latch clip mechanism on the connector ensures a snug fit into the corresponding network port, while also allowing for easy removal without damage. Many versions of the RJ45 connector also come with strain relief boots that protect the cable from bending stress and physical damage at the termination point, extending the longevity of both the cable and the connector.

The RJ45 connector is compatible with multiple types of twisted pair cables, including Cat5e, Cat6, and Cat6a. It is commonly used in conjunction with Cat6 Ethernet cables for networks requiring higher bandwidth and lower interference. This makes the RJ45 connector suitable for a wide range of network applications, from basic internet access to bandwidth-intensive services such as VoIP, video conferencing, and streaming high-definition content.

Ease of installation is a key benefit of the RJ45 network connector. Users can quickly strip the outer jacket of the cable, untwist the wire pairs, align them according to the T568A or T568B wiring standard, and insert them into the connector channels. Once inserted, the wires are crimped to establish firm electrical contact. This straightforward process is ideal for both professionals and DIY enthusiasts seeking to create custom-length network cables without compromising performance.

RJ45 connectors are essential in structured cabling systems where consistent performance and scalability are important. These connectors are often used in large-scale installations in offices, schools, data centers, and industrial settings. In residential environments, RJ45 connectors simplify the setup of home networks by allowing direct and flexible connections between networked devices and the main router or switch. Because of their standardized size and wiring configuration, RJ45 connectors are universally recognized and supported across a wide array of networking hardware.

In environments where PoE (Power over Ethernet) is utilized, the RJ45 connector plays an important role in delivering both data and electrical power over a single cable. This eliminates the need for separate power supplies for devices like IP cameras, wireless access points, and VoIP phones. The connector must be properly crimped to ensure safe and efficient power transmission, highlighting the importance of high-quality components like the Unisol RJ45 connector.

The RJ45 connector is also vital in maintaining consistent data speeds and minimizing transmission errors. Poor-quality or improperly installed connectors can lead to signal degradation, dropped packets, or complete communication failures. The Unisol RJ45 connector helps mitigate these risks by offering high-precision engineering, tight manufacturing tolerances, and quality assurance measures that ensure consistent performance across different network installations.

When integrated into a network system, the RJ45 connector is typically one endpoint of a custom or pre-made patch cable. These cables are used to connect devices to patch panels, switches, and other network components. The modular nature of RJ45 connectors allows for easy replacement or re-termination in case of wear or damage, providing flexibility in maintaining and upgrading network infrastructure.

RJ45 network connectors are also favored in field installations where quick and reliable terminations are needed. Their compact design allows for use in tight spaces, and their universal compatibility ensures they can be used across various brands and categories of networking equipment. The color-coded wiring layout simplifies installation, reducing the chance of wiring errors that could compromise signal quality.

Unisol’s commitment to quality is evident in the meticulous design and rigorous testing of its RJ45 connector line. Every connector is crafted to meet or exceed industry standards, ensuring compatibility with major Ethernet protocols and long-term reliability. These connectors undergo electrical testing to verify performance under real-world conditions, including stress from repeated plugging and unplugging, temperature changes, and mechanical wear.

The adaptability of the RJ45 connector is another one of its strong points. In addition to its role in Ethernet networking, RJ45 connectors are sometimes used in serial and console connections, as well as proprietary control interfaces in industrial systems. Their eight-pin configuration and compact size make them ideal for a wide variety of low-voltage data applications beyond standard internet networking.

As networking technologies continue to evolve, the RJ45 connector remains a fundamental component due to its robustness, ease of use, and universal acceptance. New cabling standards such as Cat7 and Cat8 may offer enhanced shielding and bandwidth, but the RJ45 interface continues to be backward compatible, allowing for a gradual transition without the need to overhaul entire systems. This ensures continued relevance and demand for reliable connectors like those produced by Unisol.

With a focus keyword of “RJ45 connector” and balanced use of related keywords such as cat6 ethernet connector, cat6 utp rj45 connector, rj45 network connector, rj45 cat6 jack, cat6 cable connector, and cat6 network connector, this product description provides a comprehensive, search-optimized overview. The content naturally integrates these terms to support SEO performance while offering valuable, technically sound information to the reader.

From installation to performance, the RJ45 connector by Unisol offers a dependable solution for any Ethernet network. With a design rooted in functionality and durability, this component supports today’s demanding data transmission needs while providing the flexibility for future upgrades. It is an indispensable element of modern network infrastructure and continues to play a key role in both simple and complex connectivity solutions.
