E-2000 Patch Cord

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

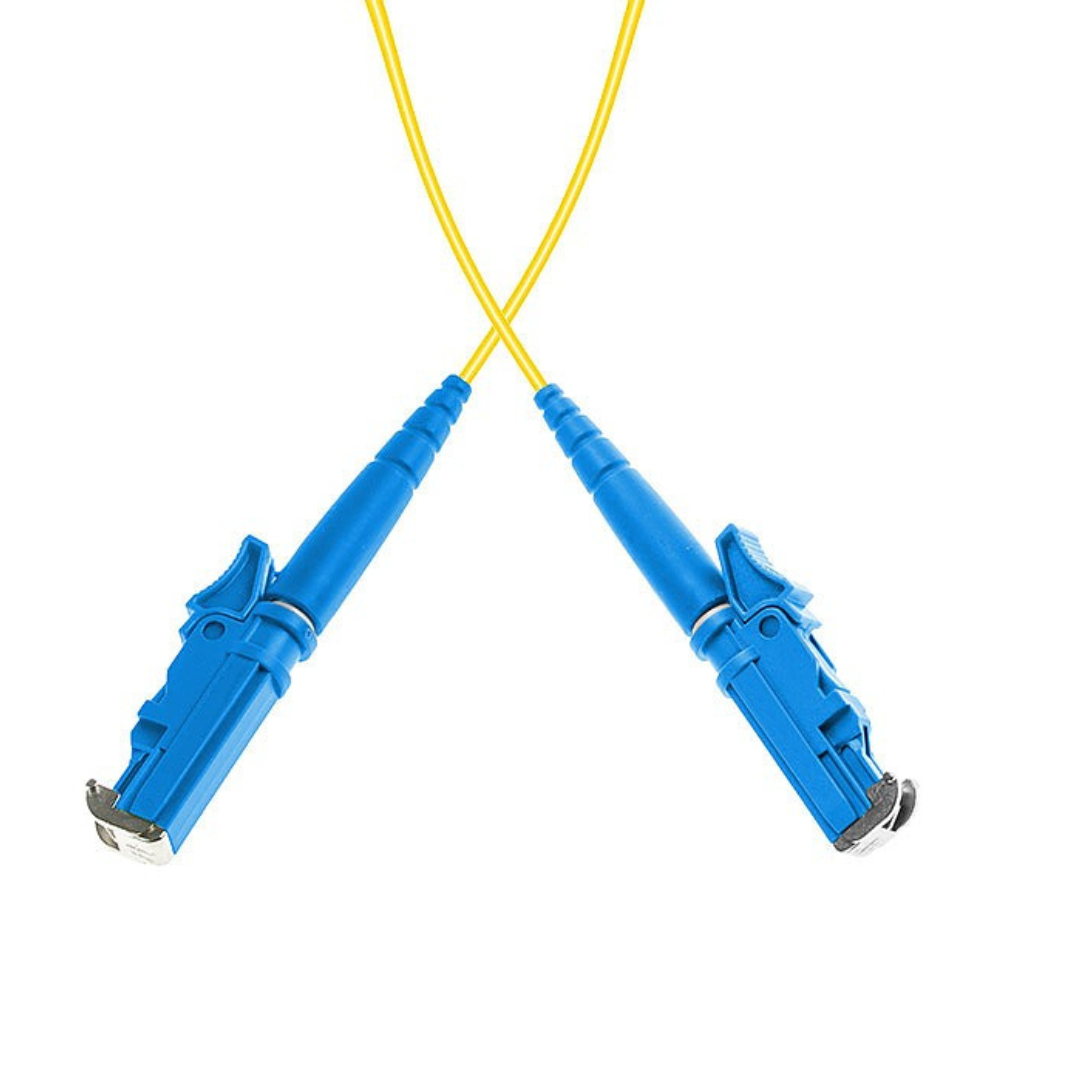

E-2000 Fiber Patch Cord

SPECIFICATIONS:

  • Fiber Core Diameter: 9/125  μm (SM), 62.5/125 μm (OM1), 50/125 μm (OM2, OM3 & OM4)
  • Return Loss (SM only): ≥45dB (PC), ≥50 dB (UPC), ≥ 60 dB (APC)
  • Insertion Loss: ≤ 0.3dB max (SM), ≤ 0.3dB max (MM)
  • Operating Temperature: -20 to +70 degree Celsius
  • Durability: 500 matings
  • Length : Standard / Customizable
  • Connector Type : E2000

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

Unisol E-2000 fiber optic patch cords are advanced optical cables designed to offer reliable, high-speed connectivity for a wide range of fiber optic applications. With the growing demand for high-performance data transmission in various industries, these patch cords are the ideal solution for ensuring stable and efficient connections. Whether used in telecom systems, data centers, or enterprise networks, E-2000 patch cords are engineered to provide the precision, durability, and performance required for today’s high-demand environments.

The E-2000 patch cord features a specialized connector designed for optimal performance in fiber optic communication systems. The E-2000 connector is a high-precision connector known for its excellent optical and mechanical characteristics. Its push-pull coupling mechanism ensures secure, quick, and easy connections, making it particularly useful in scenarios where rapid deployment and teardown are necessary. The E-2000 connectors are also designed to minimize signal loss and improve overall system efficiency. The low insertion loss and high return loss characteristics of the E-2000 connector contribute to improved data transmission and signal integrity.

When it comes to high-speed fiber optic communications, one of the most important considerations is minimizing optical signal loss. Insertion loss, which refers to the loss of signal strength as light passes through a connector or cable, can significantly affect the quality of data transmission. The E-2000 patch cord is specifically engineered to minimize insertion loss, ensuring that the optical signal remains strong and clear throughout its journey from source to destination. This makes the E-2000 patch cord a perfect fit for applications where high data throughput and reliable performance are critical, such as in fiber-to-the-home (FTTH) networks, high-speed internet services, and large-scale data centers.

The E-2000 patch cord is available in both single-mode and multi-mode configurations, making it a versatile choice for a wide range of fiber optic installations. Single-mode fibers are designed for long-distance communication, where the optical signal travels in a single light path, reducing signal degradation over long distances. Multi-mode fibers, on the other hand, are used for shorter-distance communication, where the signal bounces through multiple paths. Both configurations are available in E-2000 patch cords, ensuring that the right type of connectivity is available for any application.

A significant advantage of the E-2000 patch cord is its ability to support both high-bandwidth and low-latency communication. In modern communication networks, such as those used by telecom providers and large-scale enterprises, high bandwidth is essential to meet the increasing demand for faster data transmission rates. The E-2000 fiber optic patch cord, with its low insertion loss and high return loss, is designed to deliver the high-speed, low-latency connections needed to support high-bandwidth applications like video streaming, cloud computing, and VoIP (Voice over IP) services.

In addition to the exceptional performance of the E-2000 connector, E-2000 patch cords are constructed with high-quality materials that enhance their durability and longevity. The fibers used in the cords are typically made from glass or other optical materials, which are known for their ability to transmit light over long distances with minimal signal attenuation. The cords also come with a variety of jacket options, including LSZH (Low Smoke Zero Halogen) jackets, which are ideal for installations in environments where fire safety is a concern. The LSZH jackets are designed to emit minimal smoke and harmful gases in the event of a fire, making them perfect for use in sensitive areas such as hospitals, airports, and data centers.

The E-2000 fiber optic patch cord is also available in different lengths to meet the needs of various installations. Whether you need a short, flexible cord for a patch panel or a longer cord for a data center connection, Unisol offers a variety of lengths to choose from. The ability to customize the length of the patch cord ensures that it will fit perfectly into your network setup, minimizing excess slack and improving cable management.

One of the key reasons why the E-2000 patch cord is so popular in fiber optic networks is its versatility. These patch cords are used in a wide range of applications, from connecting equipment in telecom networks to providing high-speed internet access to consumers. The E-2000 patch cord is especially popular in environments that require frequent connections and disconnections, as its push-pull coupling mechanism allows for easy, tool-free operation. This feature is particularly useful in applications like FTTH deployments, where installers may need to quickly connect and disconnect various devices.

In addition to performance and ease of use, E-2000 patch cords are also known for their precision manufacturing. Each cord is crafted to meet the strictest industry standards, ensuring that it delivers optimal performance in every application. The connectors are precisely polished to ensure minimal optical signal loss, and the fibers are carefully aligned to guarantee a stable, high-quality connection. The combination of high-performance materials and precise manufacturing techniques makes the E-2000 patch cord a reliable, long-lasting solution for any fiber optic network.

Moreover, the E-2000 patch cord is also compatible with a wide range of fiber optic equipment and devices. Whether you’re connecting to routers, switches, or transceivers, the E-2000 connector provides a secure and efficient interface, ensuring that your fiber optic network operates smoothly and reliably. This wide compatibility makes it a popular choice for both new installations and upgrades to existing systems.

Unisol’s commitment to quality control is another reason why E-2000 fiber optic patch cords are trusted by telecom providers, data centers, and enterprise networks around the world. Before leaving the factory, each E-2000 patch cord undergoes rigorous testing to ensure that it meets the highest standards for performance and reliability. Tests include checks for insertion loss, return loss, and mechanical durability, ensuring that the patch cords perform optimally even in demanding environments.

In summary, the E-2000 patch cord is a high-performance, reliable, and versatile solution for a wide range of fiber optic applications. Whether used for high-speed internet connections, telecom infrastructure, or enterprise networks, these patch cords provide exceptional signal integrity, low insertion loss, and easy-to-use connectors. The E-2000 patch cord is a key component in modern fiber optic networks, offering the speed, reliability, and durability needed to meet the demands of today’s digital world. With its precise manufacturing, versatile design, and commitment to quality, the E-2000 fiber optic patch cord is the perfect solution for any network installation requiring high-performance, long-lasting fiber optic connectivity.

● E2000 patch cords use E2000 connectors, known for their precision and high performance in fiber optic connections.
● The connectors feature a push-pull coupling system for easy and quick connection and disconnection.
● These patch cords offer low insertion loss, ensuring minimal signal degradation for efficient data transmission.
● E2000 patch cords feature high return loss, helping to minimize reflections and improve overall signal integrity.
● E2000 patch cords are available in both single-mode and multi-mode options, suitable for a wide range of applications.
● E2000 patch cords are designed for long-term durability, able to withstand harsh environments and frequent use.
● The connectors are precision-polished, ensuring high-quality optical performance and minimal signal loss.
● Available with LSZH (Low Smoke Zero Halogen) jackets, making them safe for installations in fire-sensitive environments.
● Ideal for high-density fiber optic installations, such as data centers and telecom networks, due to their compact design.
● E2000 connectors offer secure, reliable connections, which are essential for high-speed, mission-critical applications like telecommunications and data transfer.
● The push-pull mechanism ensures a straightforward installation process, reducing installation time and complexity.
● Suitable for high-bandwidth and high-speed applications, ensuring fast and efficient data transfer in advanced fiber optic systems.

● Industrial Automation
● Telecommunication Networks
● Data Networks
● Measurement and Testing Instruments
● Optical Communication Systems
● Broadcasting and Media
● Medical Applications
● Military and Defense
● FTTx System

DESCRIPTIONPART NO.
Connector type AA & BBIndicate type of connector AA & BB:


MTRJ UPC Connector
MT – MTRJ Female
MTM – MTRJ Male

E2 – E2000 UPC Connector
E2A – E2000 APC Connector

LC – LC UPC Connector
LCA – LC APC Connector

SC – SC UPC Connector
SCA – SC APC Connector

ST – ST UPC Connector

FC – FC UPC Connector
FCA – FC APC Connector

MU – MU UPC Connector

SMA – SMA UPC Connector
Fiber TypeIndicate Fiber type of the patch cord
Singlemode 9/125μm (G.652D) Multimode 62.5/125μm (OM1) Singlemode 9/125μm (G.655) Multimode 50/125μm (OM2) Singlemode 9/125μm (G.657A1) Multimode 50/125μm (OM3) Singlemode 9/125μm (G.657A2) Multimode 50/125μm (OM4)
Cable TypeIndicate Fiber patch cable type
SPX – Simplex Type

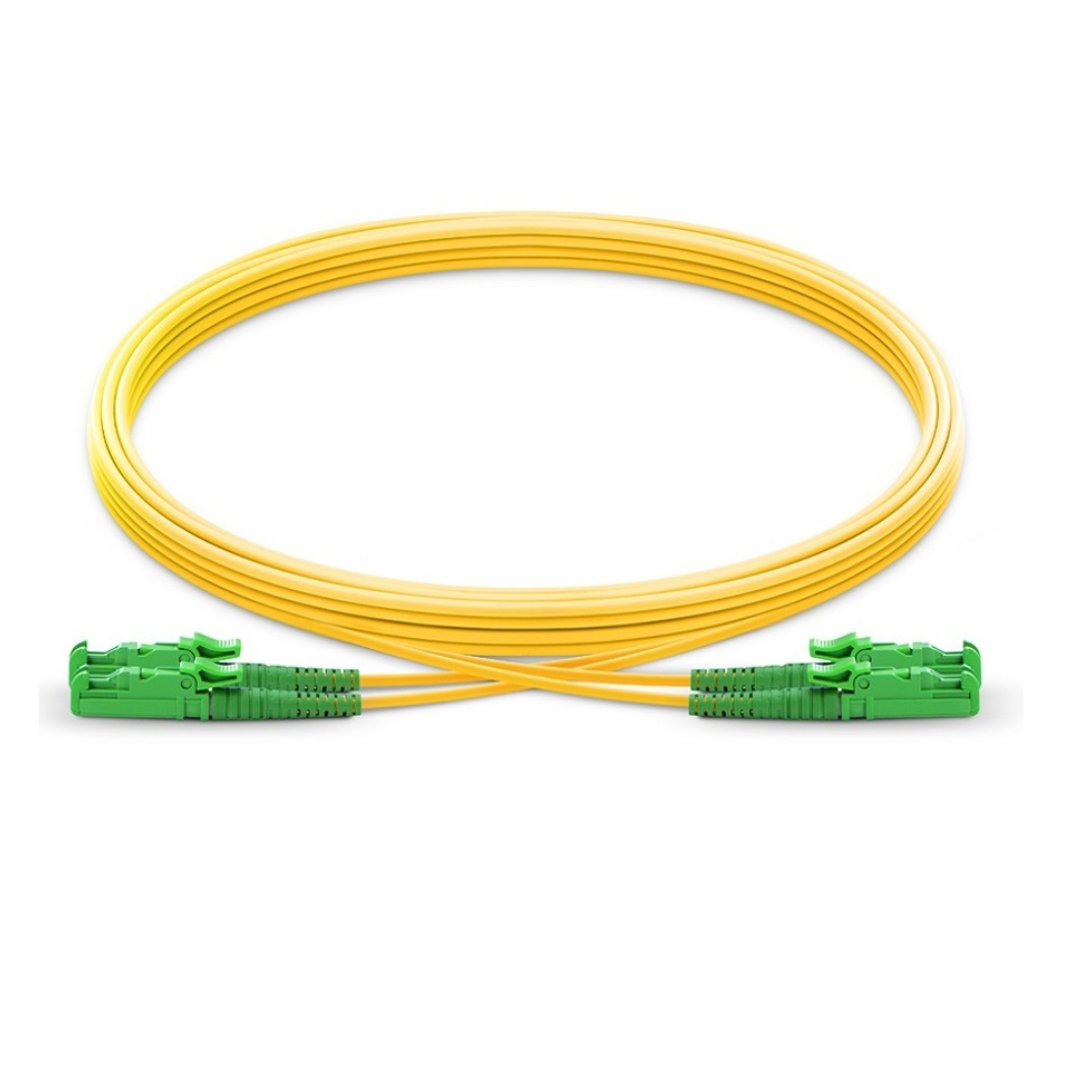

DPX – Duplex Type
LengthIndicate Length of the patch cord
1 meter to 150 meter
Jacket TypeIndicate the patch cable jacket material
LSZH
PVC
REMARKS

Product Part No. Example:
UCPL-PCBLE-SMSC/UPC-SC/APC-DPX05M – Unisol Single Mode 9/125 SC/UPC-SC/APC Duplex Patch Cable 05M length

Single mode patch cord is not available for SMA connector.
APC connector is available in both Singlemode and Multimode types.
APC connector is not available for ST, MTRJ, MU and SMA types.
APC connector and boot are green in colour.
