High Density Fiber Patch Panel

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

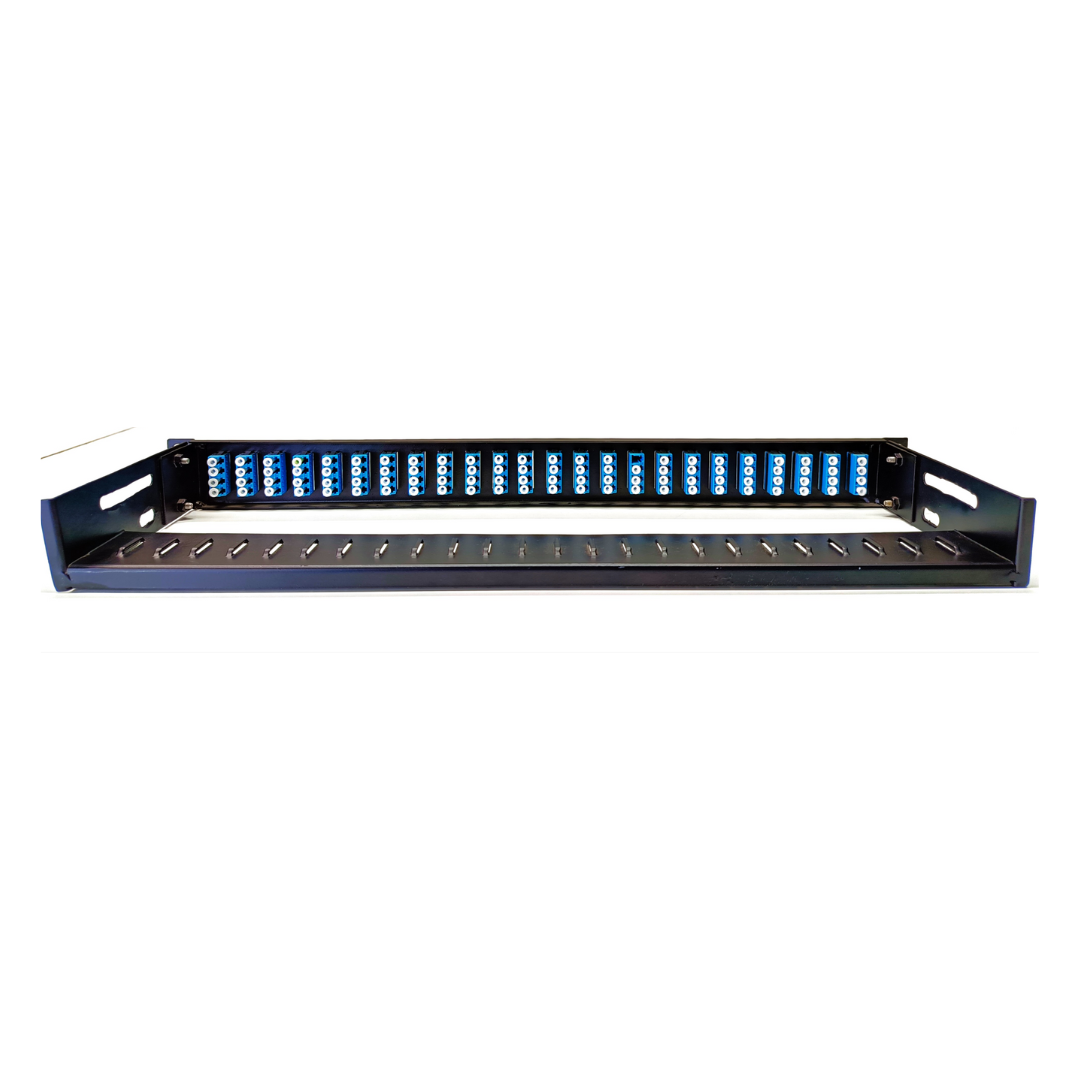

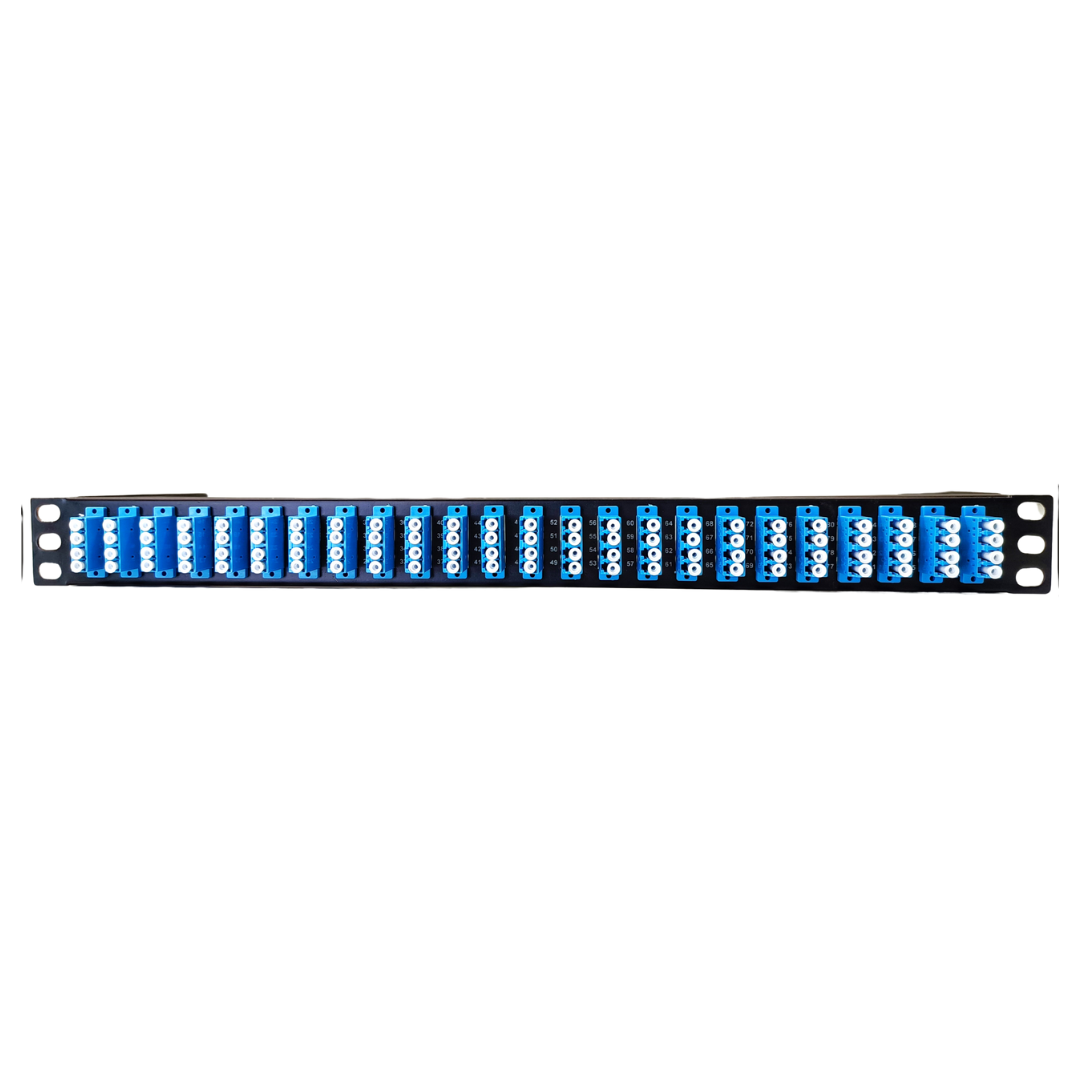

High Density Fiber Patch Panel

SPECIFICATIONS:

  • Material: Mild Steel/Aluminium
  • Dimensions: Customizable
  • Adapter Type: LC/UPC Quad
  • Number Of Ports: 96
  • Fiber components standard: Telecordia GR 326
  • Standard Color: Black
  • Operating Temperature: -40 to +75 degree celsius
  • Insertion Loss: ≤0.2dB (SM), ≤0.3dB (MM)
  • Plug/Unplug durability: 1000 times

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

High Density Fiber Patch Panel by Unisol is a purpose-built solution engineered for environments demanding compact yet high-capacity fiber cable management. This high density fiber patch panel is specifically designed to fit standard 19-inch server racks and network racks, with a compact 1U height that maximizes rack space efficiency without sacrificing functionality. Built to support up to 96 fibers, this HD fiber panel allows for optimal use of space while ensuring network integrity, organization, and performance in data centers, telecom rooms, and high-capacity communications hubs.

Constructed from durable mild steel, the Unisol high density fiber patch panel combines rugged performance with precise design. The durable fiber patch panel resists physical damage, providing long-term protection for fiber connections in both static and dynamic network environments. Its removable top cover allows easy access for installation and ongoing maintenance, which is crucial in fast-paced operations. The mild steel patch panel material also enhances the robustness required in high-traffic environments, offering confidence that your infrastructure is securely housed.

Included with the Unisol high density patch panel is a comprehensive splice management kit, which features splice trays, mounting ears, cable glands, cable ties, and splice sleeves. These accessories streamline the splicing and termination process, maintaining proper bend radius and ensuring that all fibers are properly secured. Such thoughtful design promotes network reliability and longevity. Whether you’re building out a new infrastructure or upgrading an existing one, this customizable patch panel is engineered for ease of integration, reducing installation time while keeping cable management tidy and efficient.

The HD fiber panel supports high-density termination configurations with ports for up to 96 fibers in a single 1U chassis. This makes it an ideal high capacity fiber patch panel for scalable networks where rack space is a premium. The design supports single-mode and multi-mode fiber applications, ensuring versatility in a wide range of network types. With structured routing paths and fiber slack management, the high performance patch panel also helps prevent signal attenuation and physical damage, preserving the quality of transmission across the network.

Unisol’s high density fiber patch panel integrates seamlessly with modern cable management systems. Its standardized size and modular layout enable interoperability with other rack-mounted systems and network gear. The front-access port layout allows for easy patching and fast identification of fiber paths, which improves troubleshooting efficiency and minimizes downtime. The customizable patch panel setup also means that IT managers can tailor the panel configuration to specific network needs, supporting better control and adaptability.

In high-demand environments like cloud data centers, enterprise IT infrastructure, or telecom switching facilities, reliability and performance are critical. The Unisol high density fiber patch panel is engineered to deliver both. Designed with airflow and cable clearance in mind, this high capacity fiber patch panel supports cooling and maintenance best practices by avoiding congestion and heat buildup. Its modular construction enables upgrades without disrupting existing connections, allowing the network to evolve with minimal disruption.

The high density patch panel from Unisol is not just a mechanical fixture—it’s a network management tool. Each element of the panel, from port spacing to cable strain relief, is designed to uphold performance standards while simplifying network operations. Combined with its high port count and rugged build, this durable fiber patch panel is ideal for expanding FTTH deployments, long-haul telecommunications networks, and structured cabling systems.

Security is another key element addressed by the Unisol high density fiber patch panel. Dust-proof covers and secure cable ports reduce the risk of foreign particles entering sensitive connectors. These protective features, combined with the structural reliability of the mild steel patch panel, create an environment in which critical data infrastructure can function reliably and securely for years.

Organizations prioritizing future-proofing their network will find the Unisol high density fiber patch panel an excellent foundation. Whether it’s being deployed in a brand-new data center build-out or retrofitted into an existing telecom cabinet, this high performance patch panel adapts to evolving technologies. The panel supports high-density LC, SC, or MPO connector types, offering full flexibility for current and future optical networking standards.

A standout feature of this customizable patch panel is its easy labeling and identification system, which enhances operational clarity. Quick-access labeling fields allow technicians to quickly identify individual connections and manage complex cross-connect environments efficiently. This ease of access makes it easier to audit, document, and service the network, significantly reducing operational complexity.

To meet growing bandwidth demands and increasing fiber deployments, Unisol’s high density fiber patch panel provides the compact scalability needed to keep pace. With rising numbers of users, services, and devices relying on high-speed connectivity, investing in a high capacity fiber patch panel is essential for modern digital infrastructure. It helps ensure that fiber links are protected, managed, and organized in a way that maximizes performance while maintaining flexibility for the future.

Engineered for repeatable, high-precision connectivity, the Unisol high density fiber patch panel stands out as a top-tier option for network professionals. Its thoughtful construction, high-density capabilities, and integrated splice management kit make it a reliable component for mission-critical infrastructure where downtime and signal loss are unacceptable. Whether for enterprise networking or carrier-grade telecom systems, Unisol’s HD fiber panel provides a trusted and scalable solution built to last.

  • ● Rugged Mild Steel/Aluminum construction with powder coating.
    ● Supports up to 96 ports for connection.
    ● Can be loaded with a variety of adapters, including SC/ST/LC/FC in single mode and multimode.
    ● Allows a maximum of four cable entries.
    ● Patch or fusion splice field termination standard.
    ● Includes a splice tray for fusion splicing of field cables and fiber protection.
    ● Supports up to 24 splices per splice tray.
    ● Stacked splice tray is convenient for future capacity expansion
    ● Suitable for 19’’ rack mount applications.
    ● Accessory kit includes a mounting ear, cable gland, cable ties and screws.
  • ● Data Centers
    ● Local Area Networks
    ● Telecommunication Networks
    ● Wide Area Networks
    ● Security Surveillance Systems
    ● FTTx System
    ● CATV Networks
    ● Test Instruments
NAME  PART NO.
Unisol High Density Fiber Optic Patch Panel/LIU  UCPL-1U-HIGH-RM-PP
NAMEPORTMODEPART NO.
Unisol Adapter Panel1 x 96LC SM QuadUCPL-1U-HIGH-RM-LCSM96PQUAD
Unisol Adapter Panel1 x 96LC MM QuadUCPL-1U-HIGH-RM-LCMM96PQUAD
