Rack Mount Din Rail Cabinet

Our products range from essential components to customized solutions, ensuring reliable connectivity for various industries

Rackmount Din Rail Cabinet

SPECIFICATIONS:

Operating temperature: -40°C – 80°C Storage/transport temperature: -40°C – 80°C
Dimensions: For 4U: (H x D x W) 6.75” x 6.75” x 19” ,
For 5U: (H x D x W) 8.65” x 6.75” x 19”

Mounting: 19” Rack mount via four mounting holes
Capacity: Upto 22 kgs
Protection class: IP20
Din Rail Depth: 7.5mm
Body: 16-gauge MS with powder coating
Din Rail: Steel
Optional Cable Management: Thermoplastic

Want to discuss your specific needs

Contact us today and let's find the perfect solution together

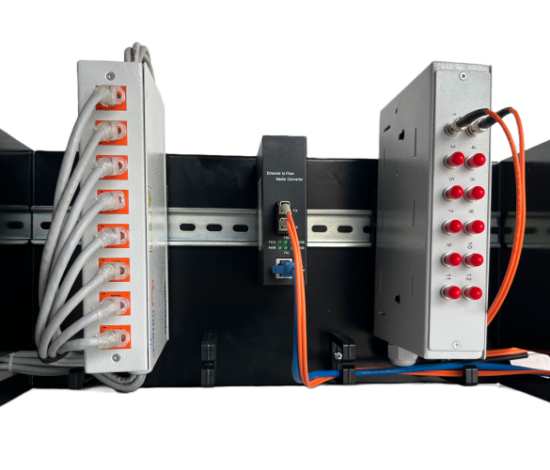

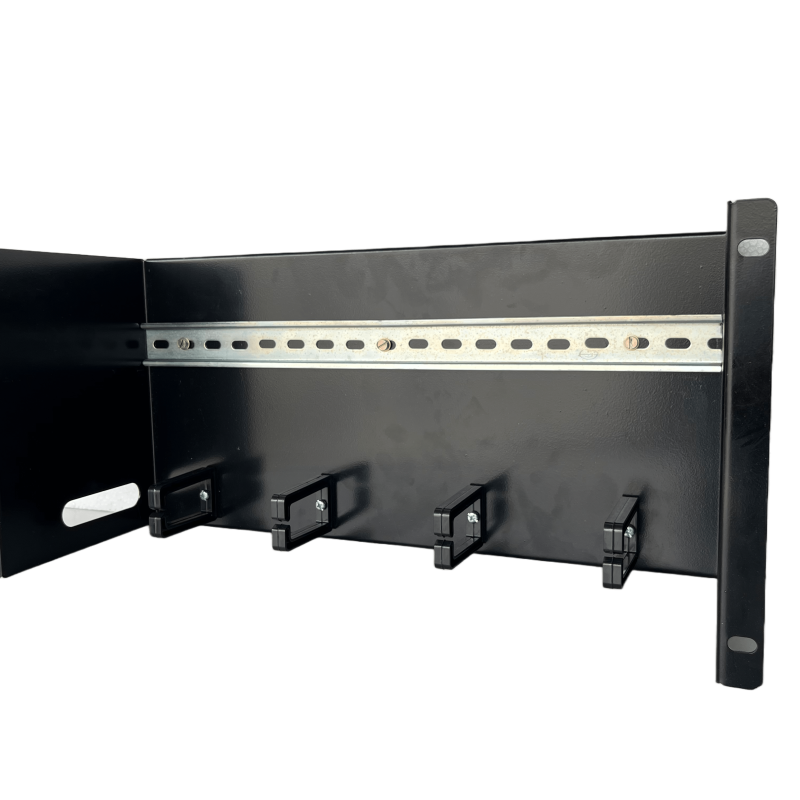

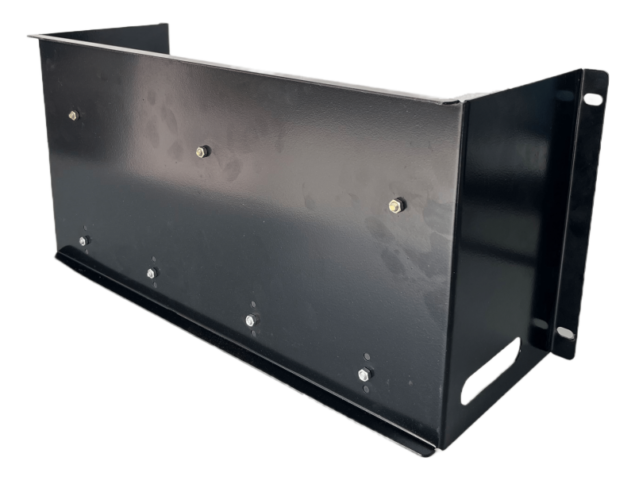

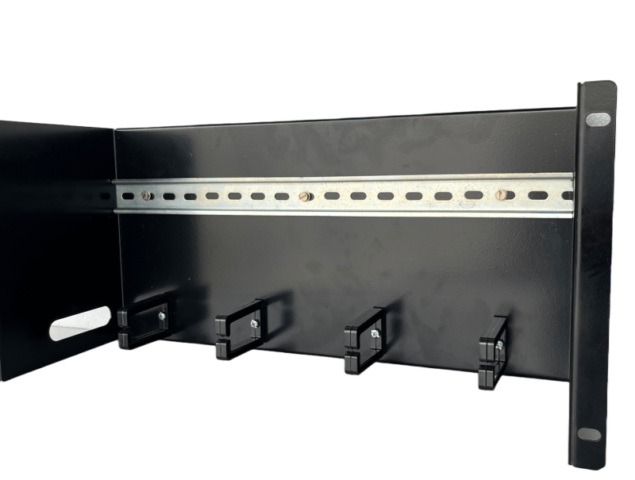

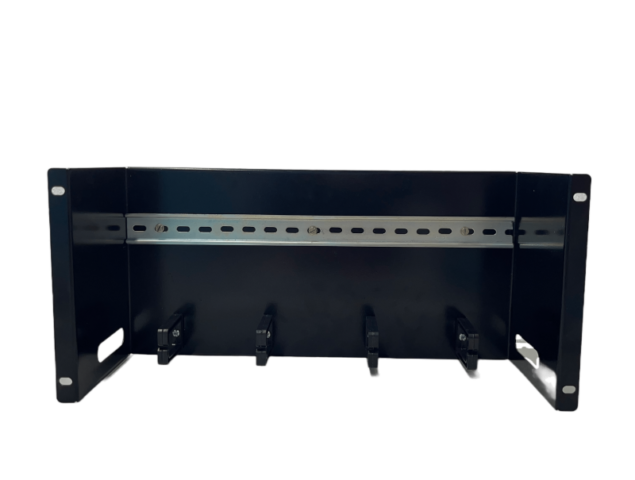

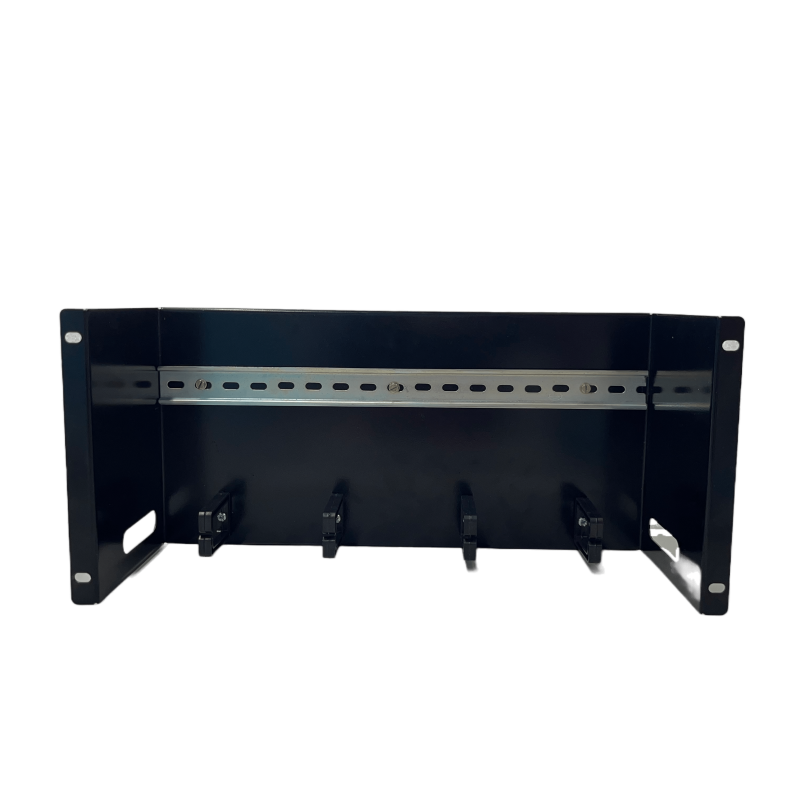

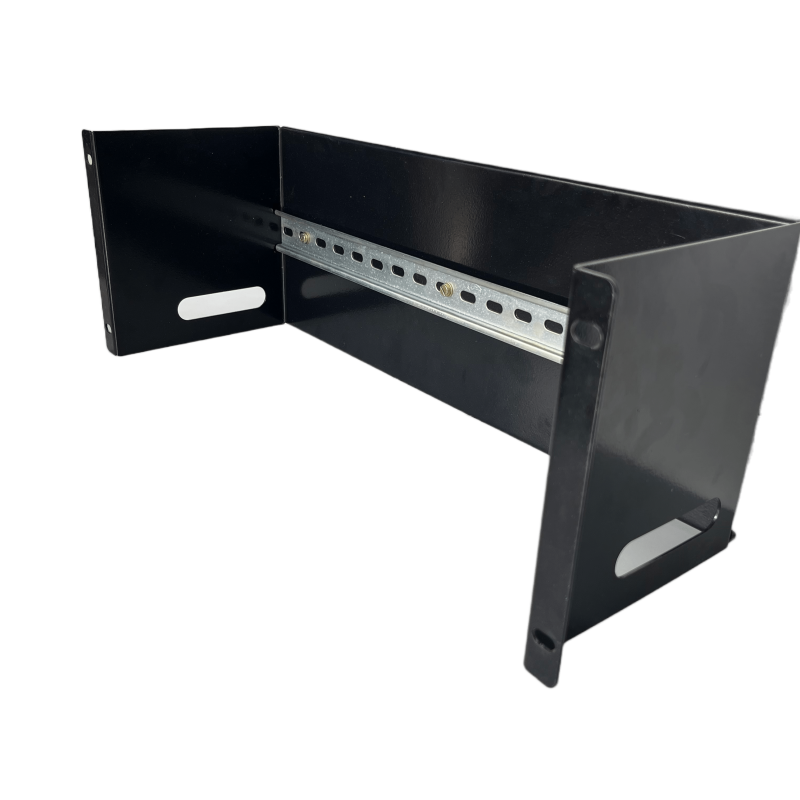

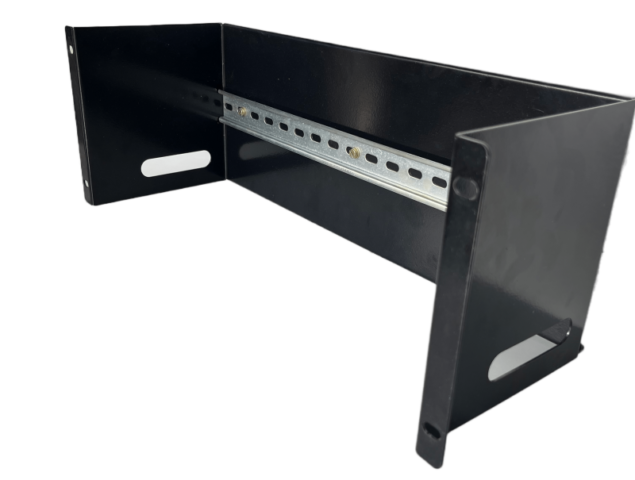

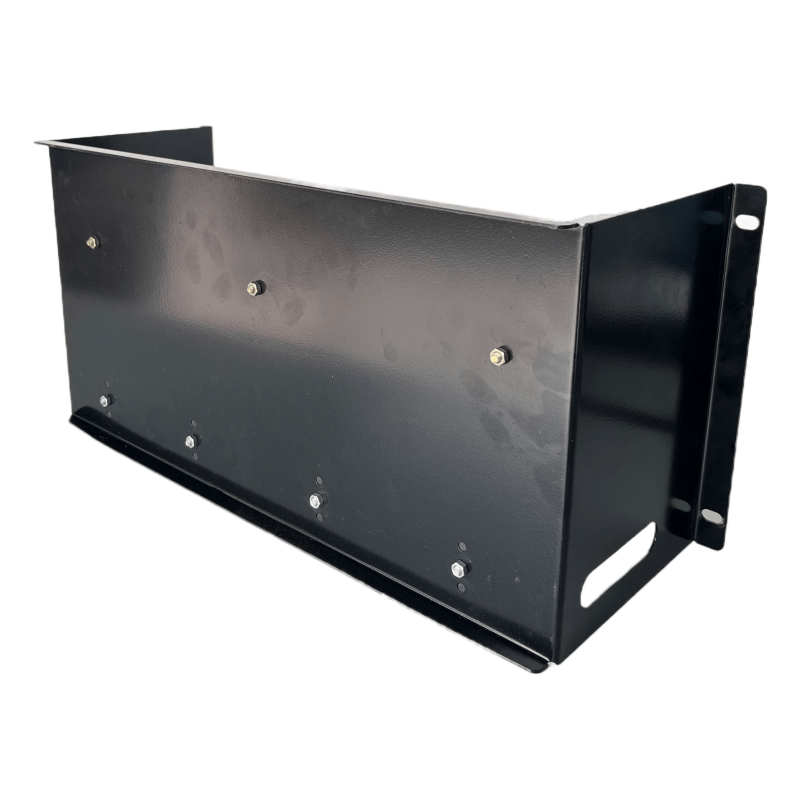

UNISOL DIN Rail cabinet allows you to mount standard 35mm DIN-Rail equipment within your 19” rack. Constructed of heavy-duty powder-coated mild steel, the adapter brackets each support up to 22 kg weight. Available in two configurations, the 5U version features a built-in cable management system to help keep your cables organized, while the slender 4U design allows you to optimize your cabinet storage capacity.

• One-piece construction with no assembly required.
• Keeps the cabinet tidy with optional cable management.
• Rugged steel construction with lifetime warranty.
• Supports up to 22kg of DIN-Rail equipment.

• Industrial Automation
• Rail Signalling & Control System
• Process Automation & Control Systems
• Power Systems & Controls
• Oil & Gas Industries
• CCTV Surveillance System
• Substation Automation Networks

DESCRIPTION	PART NO.
Unisol Din Rail Cabinet	UCPL-DIN-CABINET
Unisol 4U Din Rail Cabinet	UCPL-4U-DIN-CABINET
Unisol 5U Din Rail Cabinet	UCPL-5U-DIN-CABINET
