6-12-24 Port mini rack mount LIU

Rack Mount Patch Panel

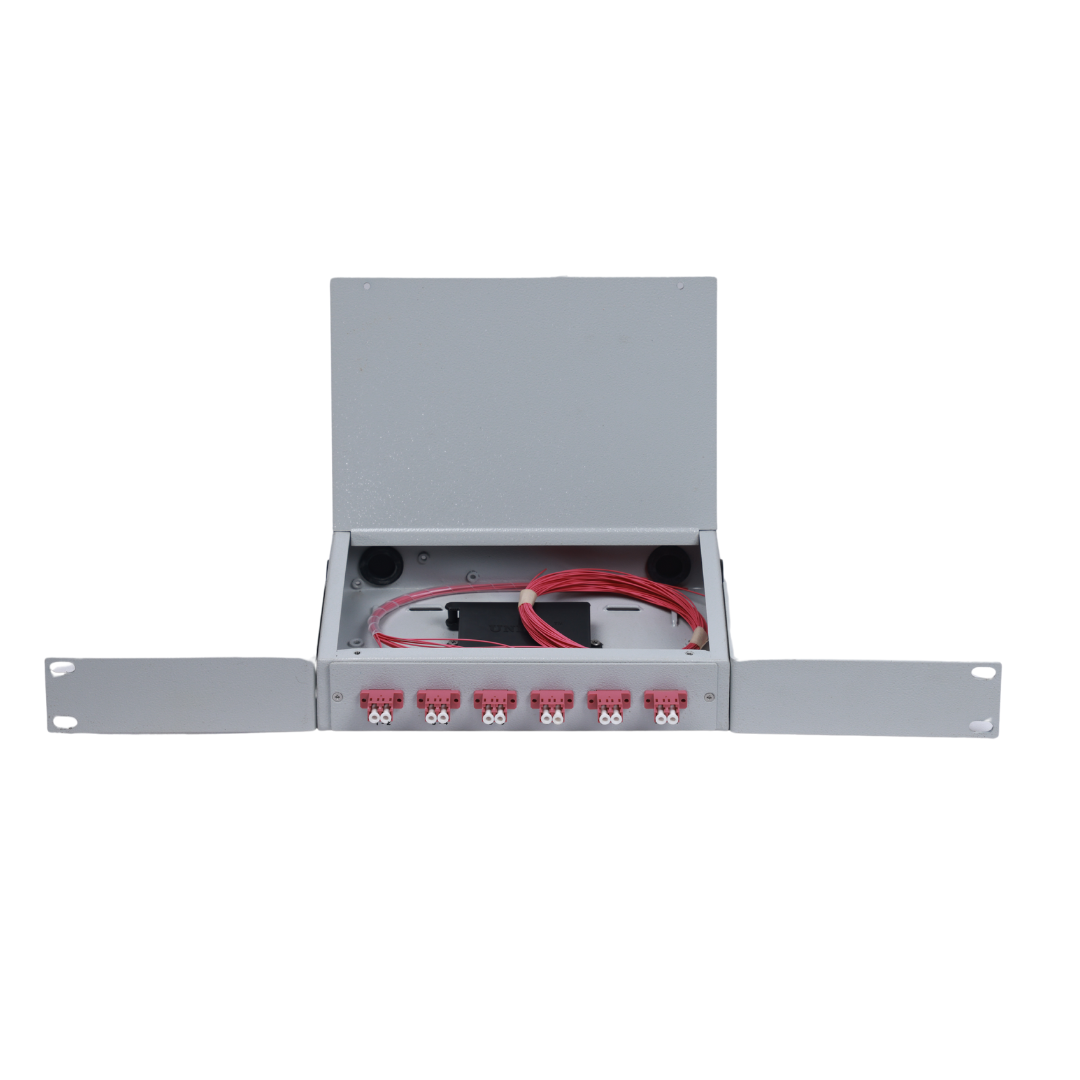

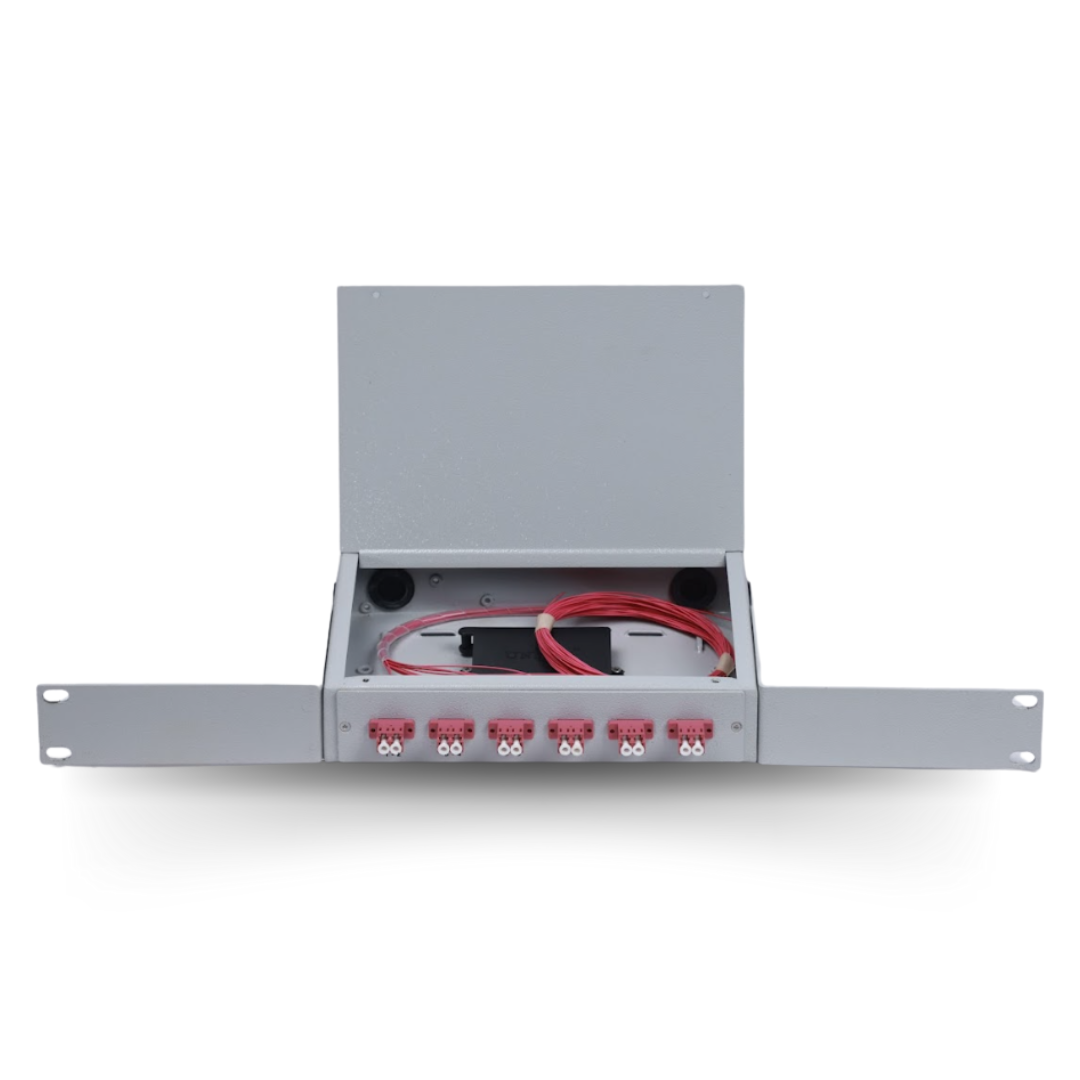

6-12-24 Port mini rack mount patch panel/LIU

SPECIFICATIONS:

Material : CRCA/Aluminum with 7 Tank Process powder coating.

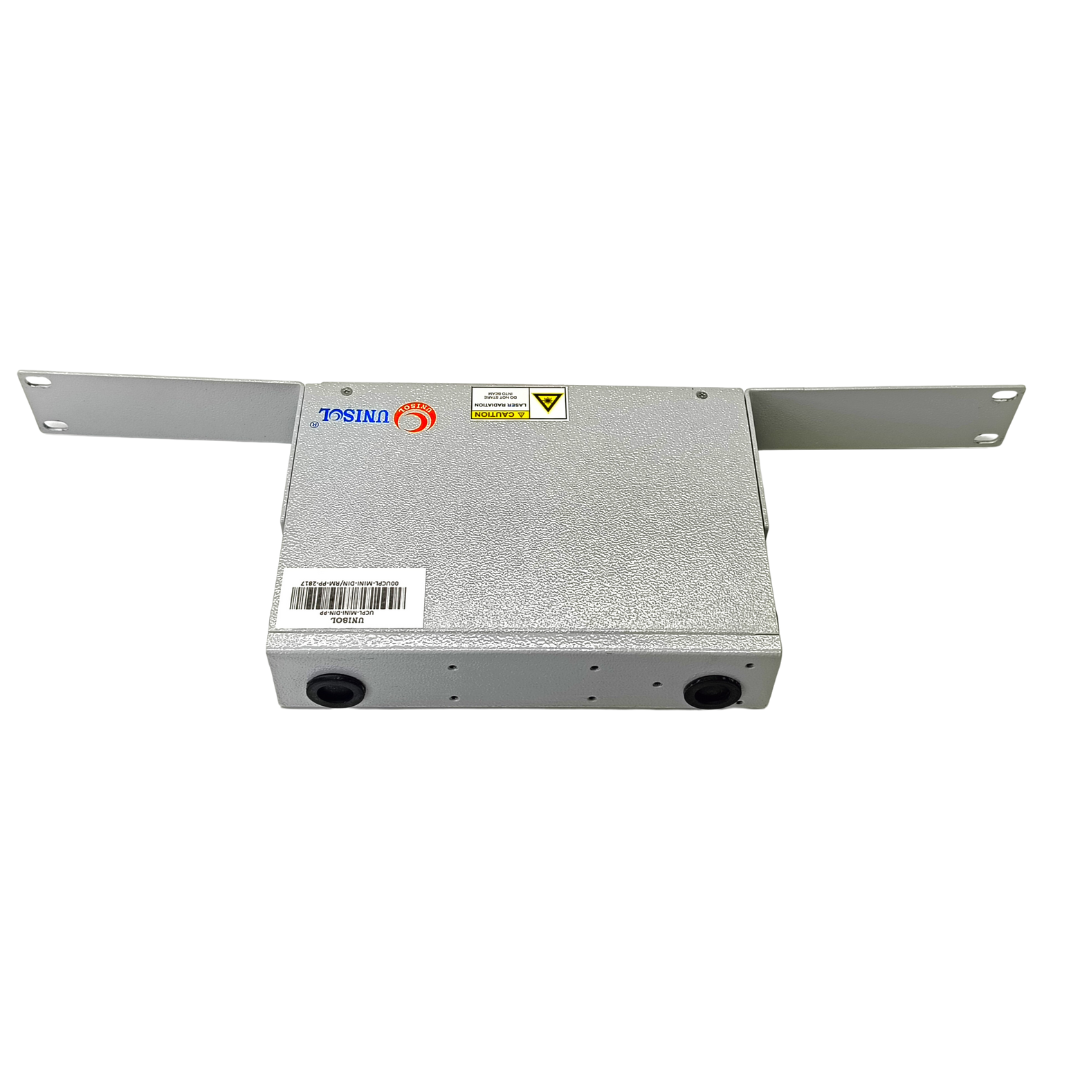

Dimensions : 44*210*150 mm (H*W*D)
Color : RAL 7035/Black
Cable grommet : FR grade Nylon
Splice Holder : FR grade ABC.
Splice Holder Dimension : 90*55*15 mm (L*W*H)
Cable Glands : Nylon with nitrile butadiene rubber, cable diameter of 5mm to 14mm max available
Fiber components standard : Telecordia GR 326
Insertion Loss : less <.3dB (Multimode), < .2dB (Singlemode)
Plug/Unplug durability : 1000 times

DESCRIPTION

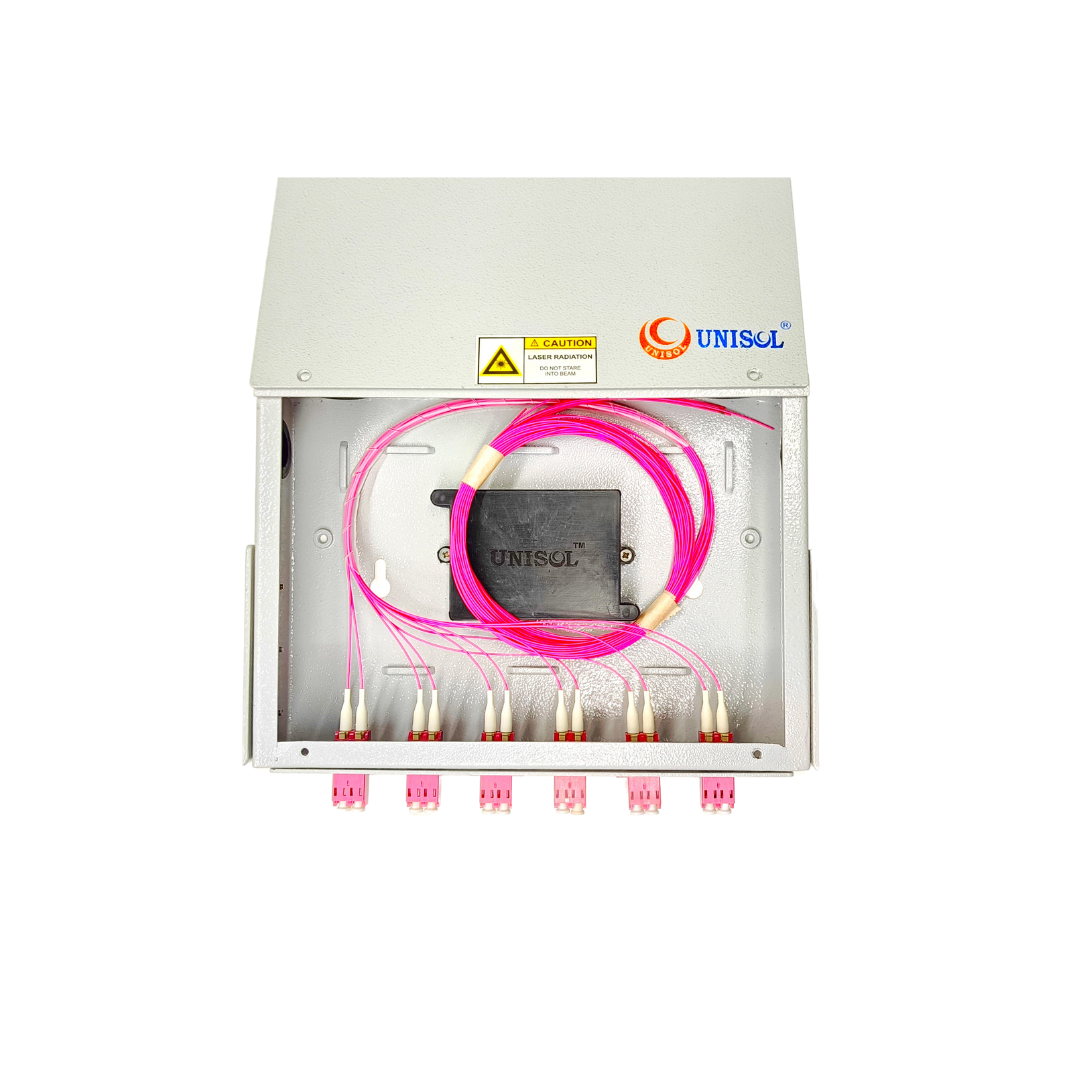

UNISOL Fiber rack mount patch panel is suitable for backbone fiber optic cable termination. Designed to support Fusion splicing or direct fiber termination. The device includes a splice tray for fusion splicing. It is compact in size & suitable for mounting in 19” Rack frame applications. Mini rack mount enclosure provides cross-connect and interconnects capabilities for splicing & terminating OFC cables, pigtails in fiber access network. Rack mount fiber optic patch panel in data cabinets are available pre-loaded with any connector interface required. These 19″ rack mount panels are ideal for high-density LAN interconnect or cross-connect patching. Unisol’s Highly reliable Mini Fiber patch panels offering user-friendly features that take fiber patching to next level. Mini Patch Panel can be loaded with a variety of adapters like ST, SC, FC and LC.

FEATURES

Compact size perfect for limited space enclosures.
MS/Aluminum housing with seven Tank process powder coating.
Suitable for 19” Rack mount applications.

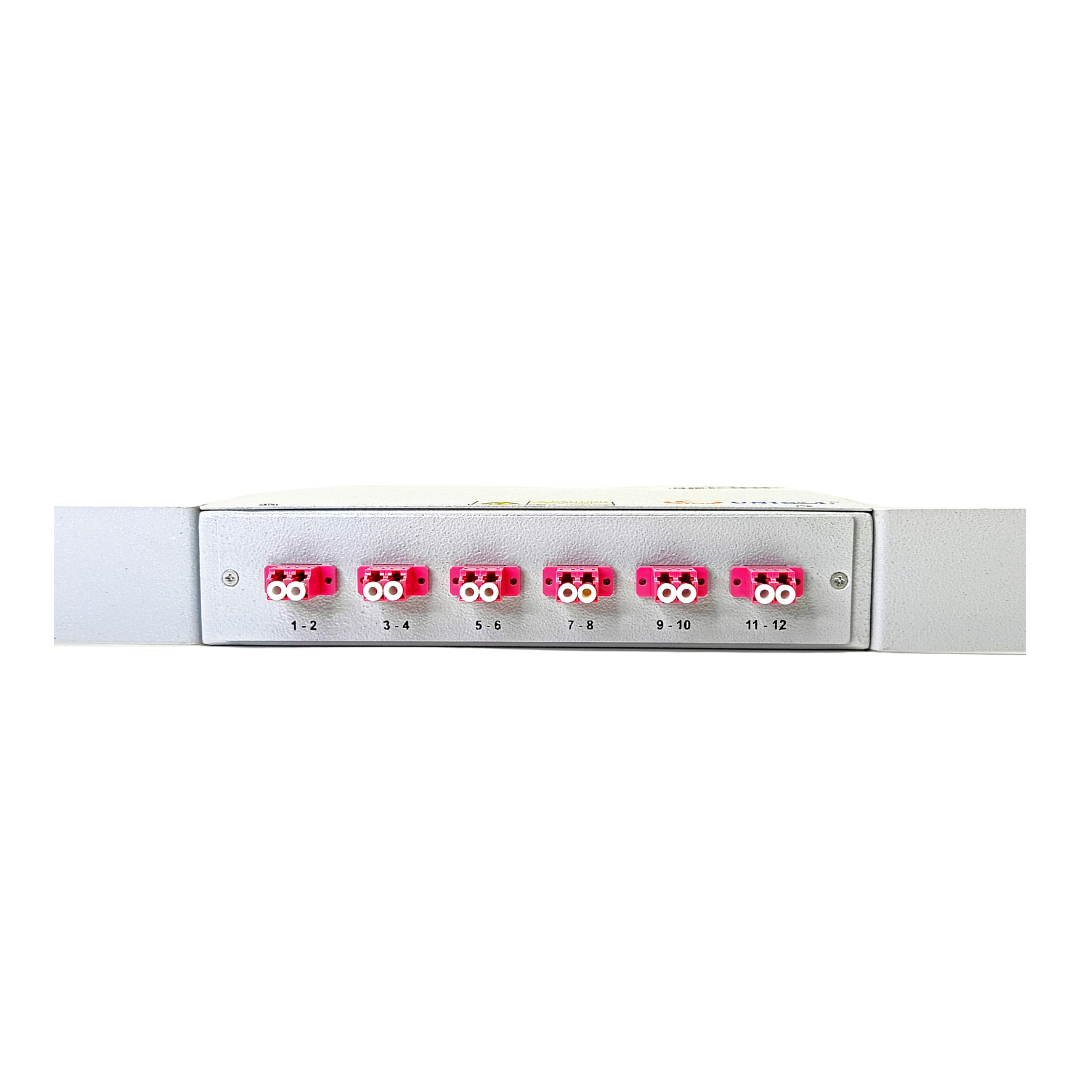

Replaceable rack mount panel for SC/ST/LC/FC type couplers.
Allow maximum 4 cables entry.
Patch or fusion splice field termination standard.
Splice holder for pigtail splicing.
Can be used as 24 port patch panel using LC/SC Duplex couplers.

APPLICATION

ORDER INFORMATION

Description	Part No.
Unisol Miniature Rack Mount Fiber Optic Patch Panel/LIU	UCPL-MINI-RM-PP
Unisol Adapter panel 1×12 SC SM Simplex	UCPL-SCSM12PSPX
Unisol Adapter panel 1×12 SC MM Simplex	UCPL-SCMM12PSPX
Unisol Adapter panel 1×6 SC SM Duplex	UCPL-SCSM12PDPX
Unisol Adapter panel 1×6 SC MM Duplex	UCPL-SCMM12PDPX
Unisol Adapter panel 1×12 ST SM Simplex	UCPL-STSM12PSPX
Unisol Adapter panel 1×12 ST MM Simplex	UCPL-STMM12PSPX
Unisol Adapter panel 1×12 LC SM Duplex	UCPL-LCSM24PDPX
Unisol Adapter panel 1×12 LC MM Duplex	UCPL-LCMM24PDPX
Unisol Adapter panel 1×12 FC SM Simplex	UCPL-FCSM12PSPX
Unisol Adapter panel 1×12 FC MM Simplex	UCPL-FCMM12PSPX
