Adapter Type: SC/LC
Mounting: Wall Mountable
Operating Temperature: -40°C to +70°C
Splicing Capacity: 2 Nos
Insertion Loss: <0.3dB
Return Loss: ≥60dB (APC)/≥50dB (UPC)

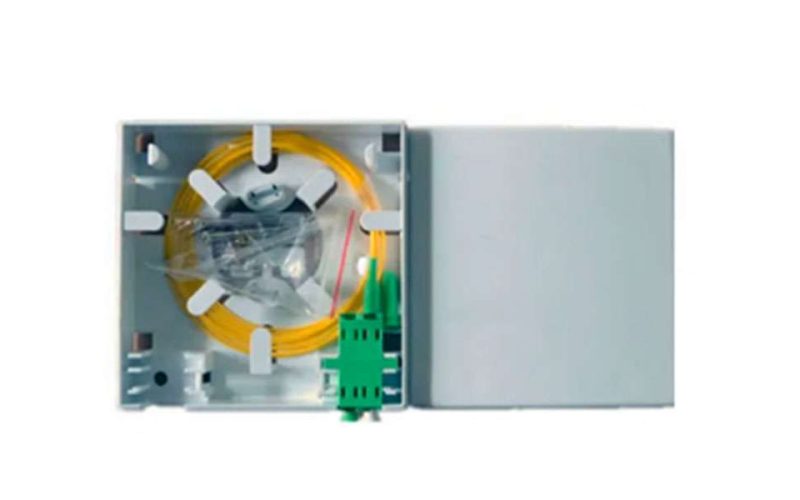

Unisol Fiber Home Termination Box (HTB) is a compact, wall-mountable solution designed to efficiently terminate up to two fibers at the end-user interface, making it ideal for Fiber-to-the-Home (FTTH) and Fiber-to-the-Desk (FTTD) applications. This box ensures optimal fiber management, guaranteeing the long-term reliability of high-speed fiber optic services. Featuring the industry-standard SC / LC connector interface, it supports both direct termination and fusion or mechanical splicing, and it provides designated spaces for splices and splice protectors.
The HTB is engineered to maintain bend radius control, which helps prevent fiber damage and ensures smooth signal transmission. Additionally, it allows for slack storage outside the wall cavity, optimizing fiber storage capacity and keeping the installation neat and organized. With its compact design, the Unisol Fiber Home Termination Box is a practical and reliable choice for residential or office fiber optic terminations, providing seamless, secure, and high-performance connections for end users.
● Compact and easy to install
● Flame retardant ABS material
● Industry standard wall mount
● Accommodates mechanical or fusion splice protection sleeves
● Light weight and robust
● Full fiber management
● Pre-loaded with pigtails and adapters
● Direct termination with field installable connectors
● Compatible with 2 SC Simplex adapters / 2 Duplex LC Adapters
● Used in FTTH indoor application for fiber termination – homes and offices
● Support termination, splicing and storage for fibre optic cable systems
● Engineered fiber routing protect bend radius through the unit to ensure signal integrity
● The top cover can slide up and down so as to protect the adapter/connector from dust
● Data Centers
● Telecommunication Networks
● Fiber-to-the-Home (FTTH) Networks
● Broadband Internet
● Television and Broadcast
● Optical Access Networks
